Doall C-650NC, 26" dual column Semi Auto. bandsaw, full capacity Bundling, Like W.F.Wells, Hem, Amada, Hyd-Mech
Have one to sell?
ConditionUsed
1 available

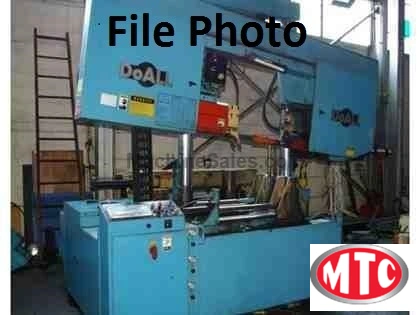

Doall C-650NC Dual Column Horizontal Bandsaw, Semi-Automatic.
Heavy Duty excellent machine for solids
There are many more items checked and repair.
25% down balance after inspection, delivery 2-4 weeks after down payment
Bandsaw, heavy duty bandsaw, Production bandsaw, Semi-Automatic bandsaw, Dual Column bandsaw, cut-off saw, Billet saw
Hand Cleaned, partial dismantling, Inspected, wear and worn item replaced, Assembled, Test and painted, 30 Day warranty
2" Blade, Chip conveyor, NC control, optional feed force dial, bundling vertical clamp on Shuttle feed, rapid to work stop, Full travel vises, 0-99 jobs, powered blade guide arm, hydraulic powered chip brush, 6 degree canted head for more efficient cutting, Blade and manuals
Cutting capacity Round 26"
Square 25"
Rectangular 25" X 25"
Smallest recommended cut size 1"
Minimum butt end 12"
Auto index length single index 20"
Multiple index 221"
Minimum index length 1/4"
Numeric control program capacity 0-99
Display Alpha/numeric
Bandsaw blade size 2" X 300"
Blade speed 40-360 FPM Variable
Blade motor 10HP
Hydraulic motor 3HP
Cutting fluid pump motor 1/3 HP
Hydraulic tank capacity 15 Gallons
Material pass line height 33.5"
Machine weight 13,000 lbs.
Approx. dimensions 96"x 142"x 128"
