Haas CNC vertical Machining Center, with 4th axis, TSC, 1000 Blk., P-Cool, CC, 4th axis drive, Refurbished by MTC
Have one to sell?
ConditionUsed
1 available

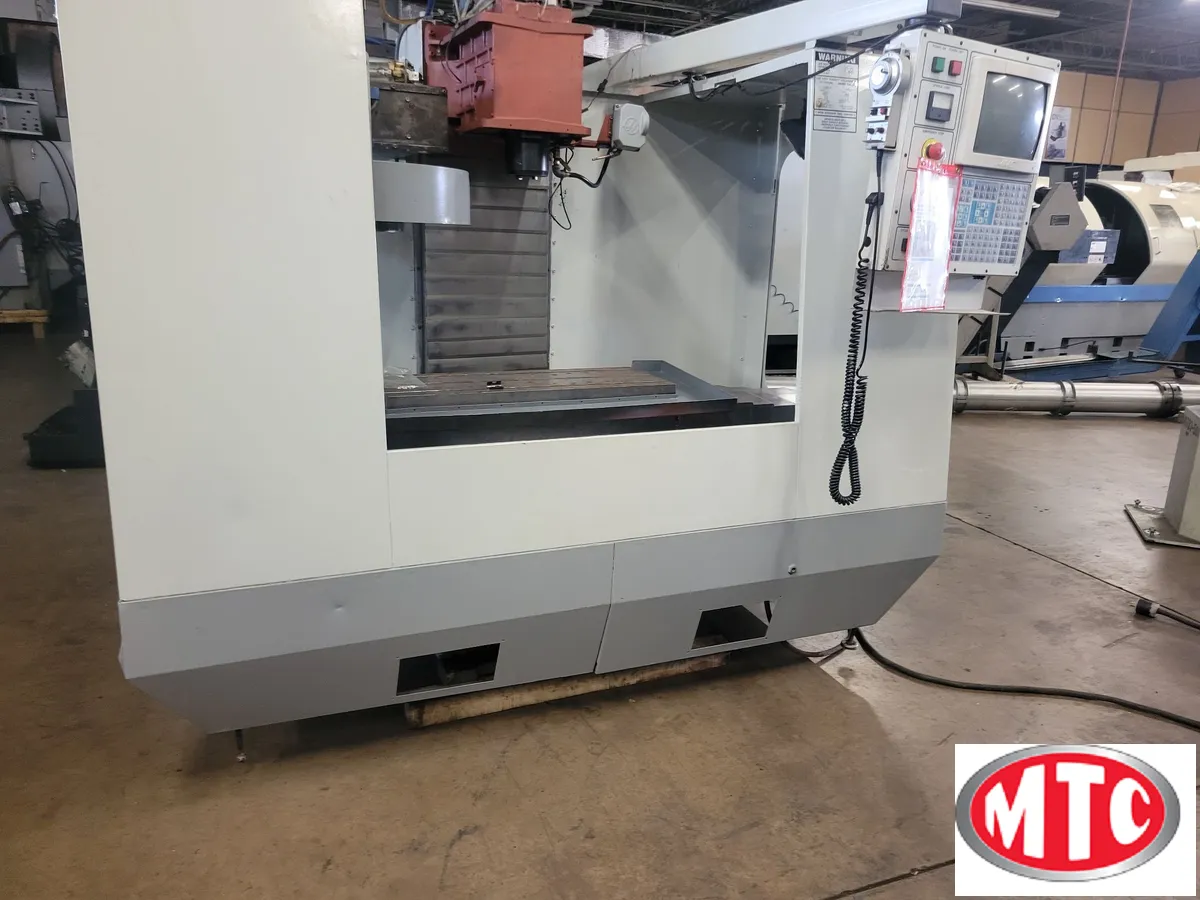

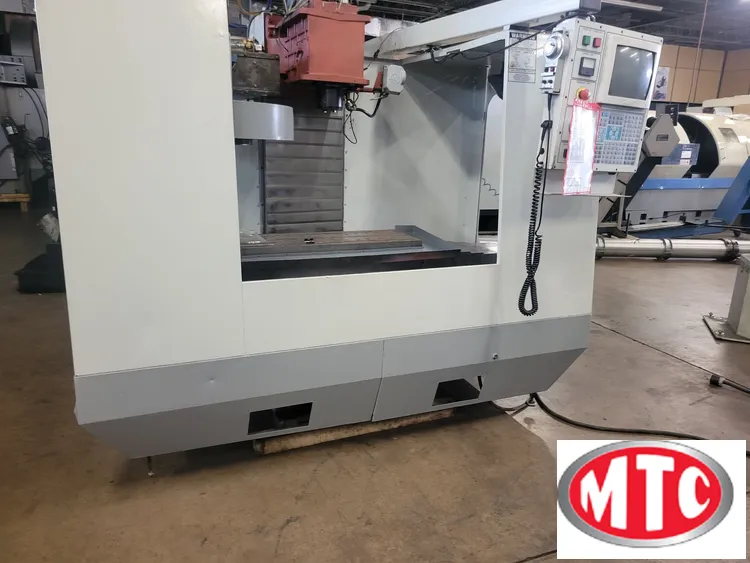

Haas VF-2 Vertical Machining Center, 4th, gear, brushless 98, 2nd lift up conveyorRefurbished by MTC
1998 Haas VF-2 VMC w/ Through Spindle Coolant, (TSC), 20 HP Vector Drive Motor, brushless servos, 7,500 RPM Gearbox, Chip conveyor, 1000 blocks/sec., P-Cool, Quick code, 4th axis brushless, hi volt transformer, Macro Code, Coor. scale, rigid tap and 2nd lift up chip conveyor
Cooalnt Through the Spindle, 4th Axis brushless drive, 7,500 RPM, Pendant control, Chip conveyor, 4MB extended memory, 1,000 block look ahead, Programmable coolant nozzle, Quick Code, Hi-Volt transformer, Macro, Coordinate, Scale and ridgid tapping
Table Size 36" x 14"
Maximum Table Load 3,000 Lbs.
Spindle Nose to Table Top 4"- 24"
X-Axis Travel 30"
Y-Axis Travel 16"
Z-Axis Travel 20"
Rapid Traverse Rate X, Y , & Z 710 IPM
Cutting Feed Rate .1- 500 IPM
Spindle Taper CAT 40
Spindle Speeds 0- 5,500 RPM
Tool Changer Capacity 20 Station ATC
Max Tool Weight 12 Lbs.
Machine Weight, Approx 8,500 Lbs.
Dimensions, Approx. 110" x 93" x 105"
Add for lift up conveyor 108" front to back
Voltage 360-480 3 phase
