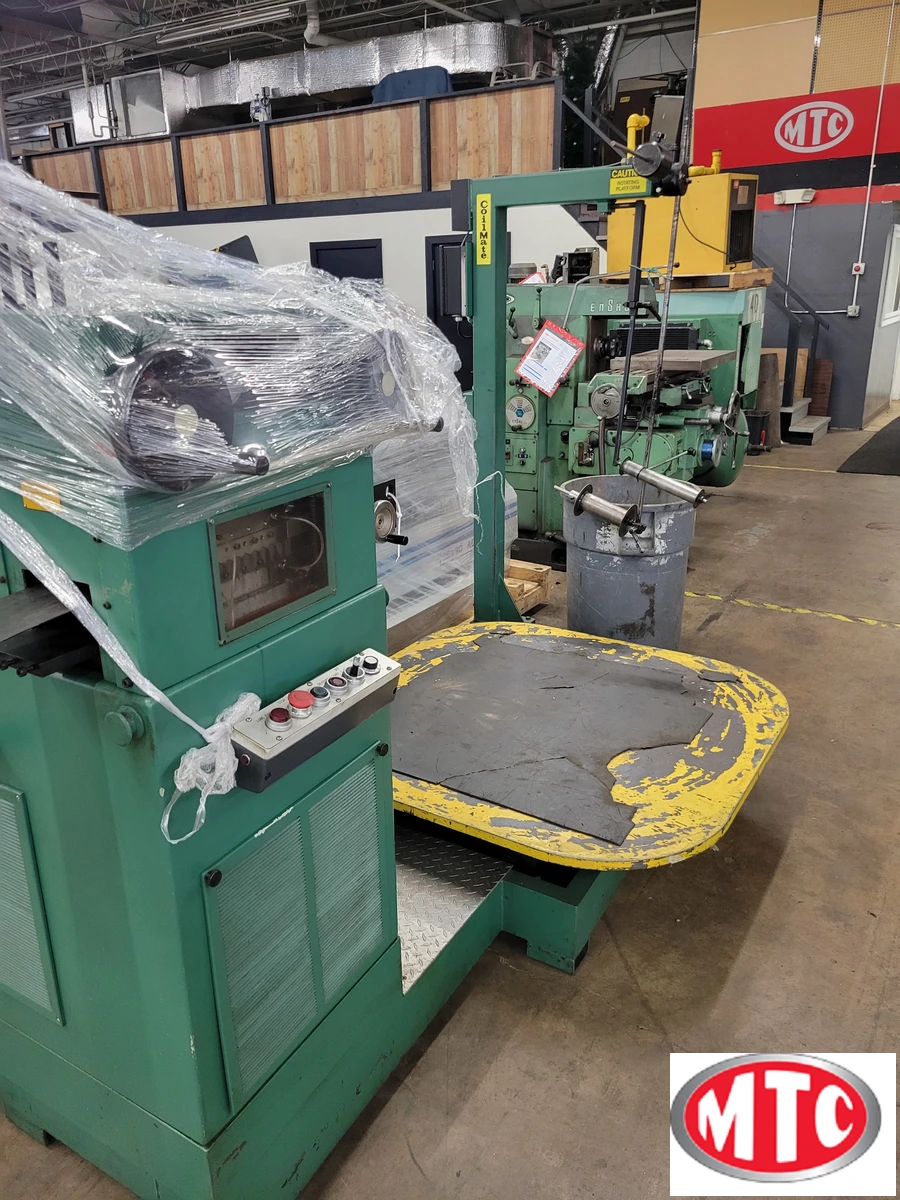

High Quality Bruderer Straightener with 5,000 lb. uncoiler Package on one base, ready to go, easy to move, 19 Roll straightener, Comes with all electrics and switches ready to go
Switches and all Electrics, electric eye and controls, 440 volt, 3 Phase
Coilmate Model CM6052 Pallet decoiler
#6,000 Lbs Capacity
60" Diameter
Model CM - Specifications
Capacity: 6,000 lbs.
Platform Size: 52" Sq. and 60" Dia.
Platform Speed: 0 — 27 RPM
Control: Dancer Arm with Potentiometer
Material Gauge Range : Max. .065" @ 6" wide, CR Steel
Voltage: r 220V, Single PH
Max. Coil O.D.: Up to 60 "
Coil Stack Height: Up to 37"
Drive System: Direct chain driven DC Regenerative
Optional Open Loop Vector
