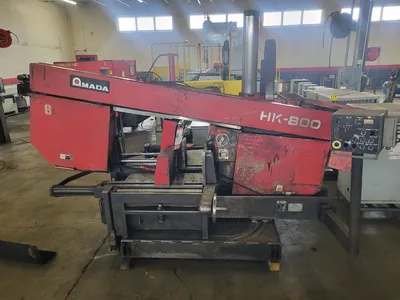

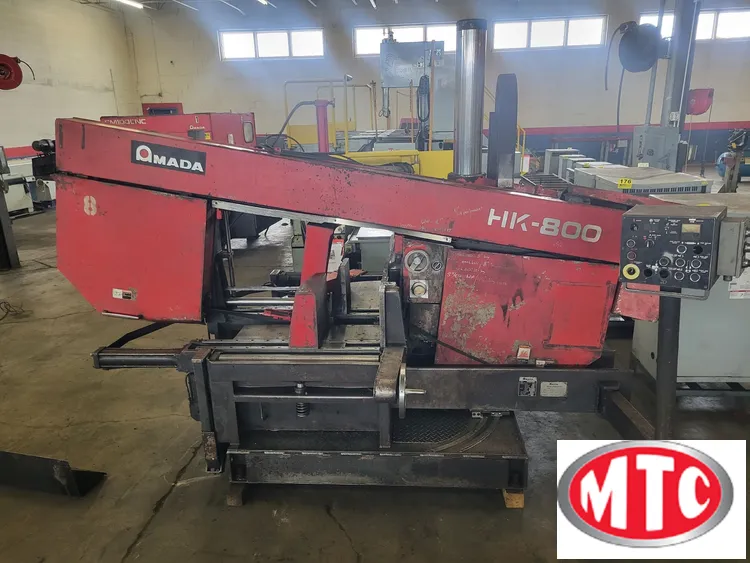

Amada Structural Saw, Mitering with power swivel base, Semi-automatic
Horizontal Band Saws (Semi-Automatic)
Coolant system, hand operated feed rolls , inching, Bundling cylinder in rear, Power tilt
| Rect-Cap (H) | 23" |
| Rect-Cap (W) | 32" |
| Rounds-Cap | 23" |
| Square-Cap | 23" |
| Power | 7.5 hp |
| Type (Auto, Manual, Semi) | Semi |
| Blade Width | 2" |
| Blade Thickness | 0.055" |
| Blade Length | 262" |
| Dimensions | 12' x 7' x 8' high |
Manufacturer: AMADA
Model: HK-800
Year: 1999
Stock #: 8159
Used - Good
Location: Elk Grove Village, Illinois 60007, United States
Amada Semi-Automatic, horizontal Column type Bandsaw, 32" x 19.5" Capacity at 90 degrees,
power tilt, power blade guide arm, hydraulic blade tension,
EQUIPPED WITH
Blade, Top bundling clamp, front and rear, Blade and coolant system
SPECIFICATIONS
RECT-CAP (H) 23"
RECT-CAP (W) 32"
ROUNDS-CAP 23"
SQUARE-CAP 23"
POWER 7.5 hp
TYPE (AUTO, MANUAL, SEMI) Semi
BLADE WIDTH 2"
BLADE THICKNESS 0.055"
BLADE LENGTH 262"
DIMENSIONS 12' x 7' x 8' high
Page 1/7
DATE: 6/24/22
PREPARED FOR:
John J. Myers CMTSE
847-290-0167 X 138
[email removed by eBay]
Myers Technology Co.
Elk Grove Village, Illinois 60007
United States
PREPARED BY:
John Myers
[email removed by eBay]
Myers Technology Co., LLC
2150 Touhy Avenue
Elk Grove Village, Illinois 60007
United States
myerstc.com
WEIGHT 7,700 lbs.
Capacity Round 23" at 90 degrees
Capacity Wide 32,1/2"
Machine swivels on Base up to 45 degrees, Powered
Dual column design
Blade size 262" x 2.126" x .055"
Blade HP 7.5
Blade speeds 80-230 FPM
Power required 10 KVA
Machine weight 7,700 lbs.
Dimensions 12' x 7' x 8' tall
