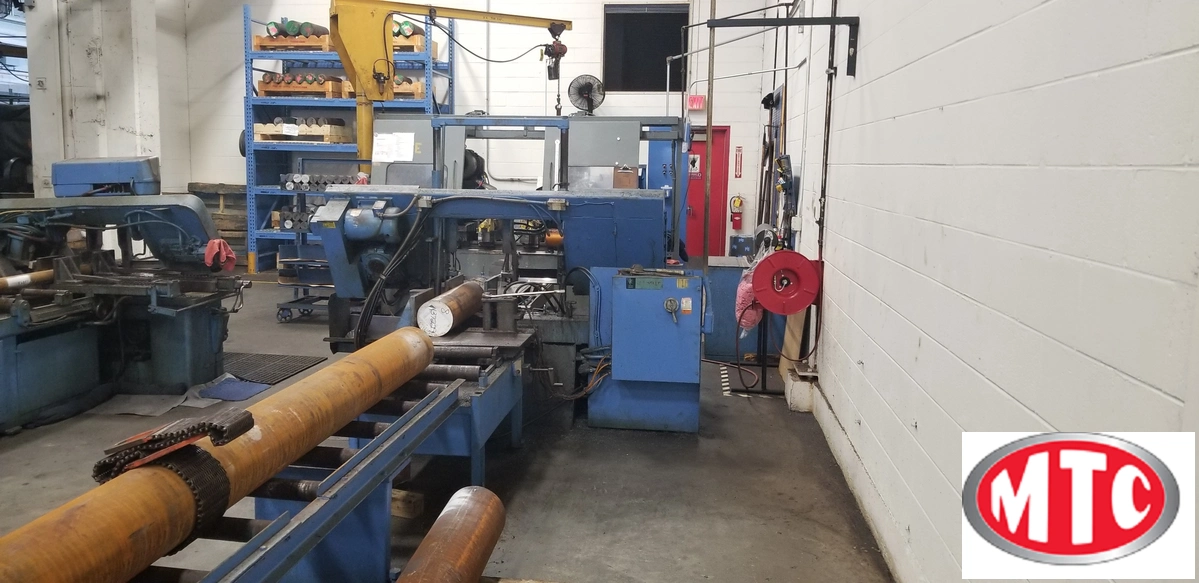

Wells F-16-2A Automatic Dual column Bandsaw, 16" Capacity
Have one to sell?
ConditionUsed
1 available
W.F. Wells Inc. Model F-16-2a Fully automatic horizontal dual post bandsaw, Good condition 16" Capacity, 1-1/4" Blade, Coolant system, Power blade tension, multiple feed capability, Parts counter, Variable speed drive, Wells patented feed force compensation Valve
Auto material feed, Blade, Coolant system, W.F. Wells patented feed compensation, Parts counter, fresh paint in front and cleaned, Variable speed drive, carbide blade guides, Manuals
MACHINE SPECIFICATIONS
STANDARD EQUIPMENT
Capacity @ 90° 16" H X 20" W 1¼” Bi-Metal Blade
16" Diameter Carbide Guides with Roller Backups
Capacity @ 45° 16" H X 10" W Hydraulic Vise with Variable Pressure
10" Diameter Hydraulically Controlled Blade Tension
Weight Capacity 5,000 lbs. Operator Manual and Parts List
Blade Speed Range 60-425 SFPM Semi-Automatic Operation
Blade Size 1¼” X .042" X 15' Built-In Coolant System
Blade Guides Rollers and Carbide Side Blocks 45° Swiveling Vise
Blade Tension
Bandwheel Size
Hydraulic
20"
Blade Powered Rotary Cleaning Brush
TEFC Motors
Vise Full Stroke, Hydraulic Fused Disconnect with Lock Out
Sawing Force 0-750 lbs NFPA-79 Electrics
Blade Drive 5 HP variable drive Automatic Out-Of-Stock Shutdown
Hydraulic Drive 2 HP Motor Quick & Easy Blade Speed Change
Work Height 26" Feed Pressure Monitor/Regulator
Coolant Capacity 15 Gallons All Safety Guards
Hydraulic Capacity 20 Gallons
Shipping Weight 3,450 lbs.
Machine Dimensions 49" L x 97" W x 83" H
