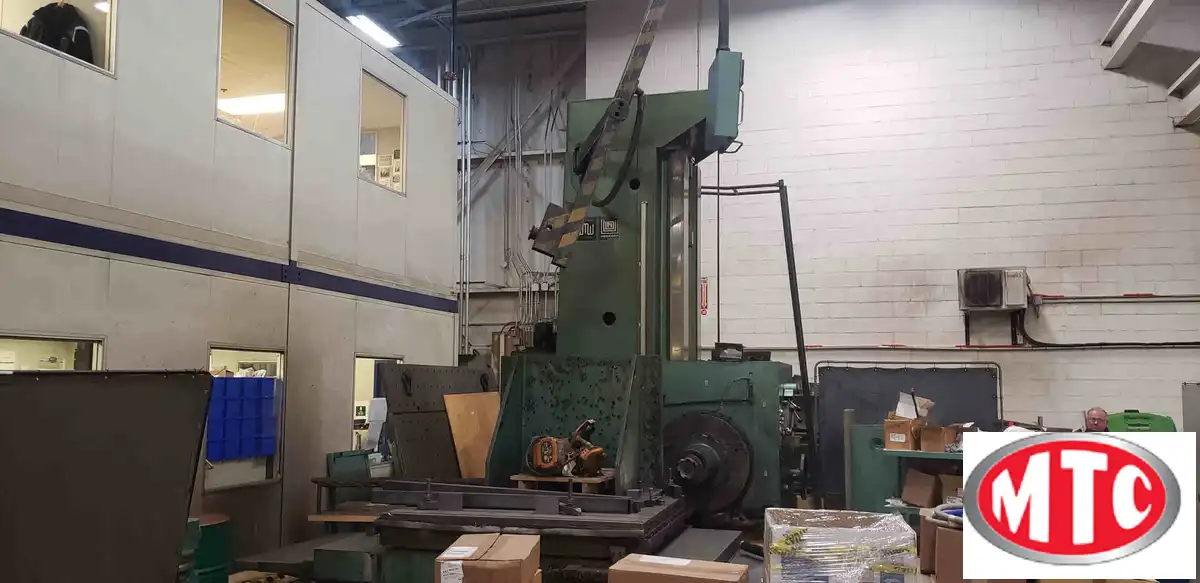

Union BFT130/6 Table Type Horizontal Boring Mill
Have one to sell?
ConditionUsed
1 available
Three Axis Heidenhain Digital Readout, Brand New Electrics Cabinet, Facing Head,
Vertical Head, Spindle Support, Pendant Control, Coolant System, Way Covers,
Built In Rotary Table, Two Angle Plates (24”W x 28.5”L x 65”), Assorted V-Blocks,
Angle Plate (90”W x 28”L x 80”H), Angle Plate (48”W x 27.5”L x 38”H), Work Light,
All Available Tooling (Boring Bars, Tool Holders, Extra Facing Head,) Transformer,
Model…………………………………………………………….BFT130/6
Spindle Diameter………………………………………………5.11”
Rotary Table…………………………………………………….55.1” x 63”
Cross Travel (X Axis)………………………………………….88.1”
Vertical Travel (Y Axis)………………………………………..78.7”
Saddle Travel (W Axis)………………………………………..70.8”
Spindle Travel (Z Axis)………………………………………..39.3”
Facing Head Diameter…………………………………………30.9”
Spindle Taper……………………………………………………ISO 50
Spindle Speeds (27)……………………………………………4.5 - 900 RPM
Max Work Piece Weight……………………………………….17,600 LBS
Spindle Motor……………………………………………………40 KW
Electrics…………………………………………………………..380V/3PH/50HZ
Made In……………………………………………………………Germany
Approximate Weight………………………………………… 70,000 LBS
Approximate Overall Dimensions……………………………322”L x 199”W x 174”H
