Daito GA 260 Automatic, programmable horizontal Bandsaw
Have one to sell?
ConditionUsed
1 available

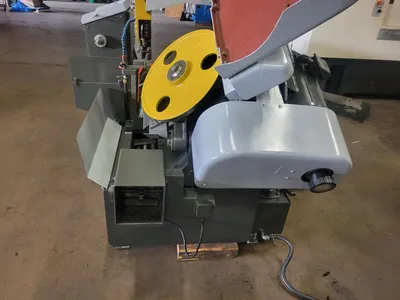

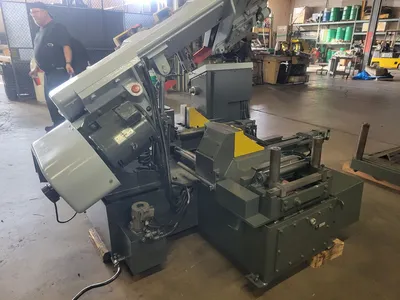

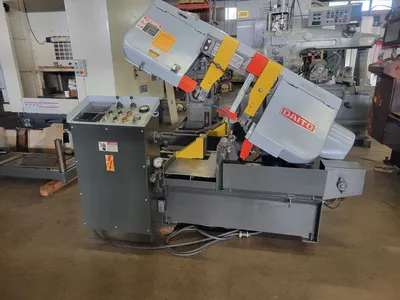

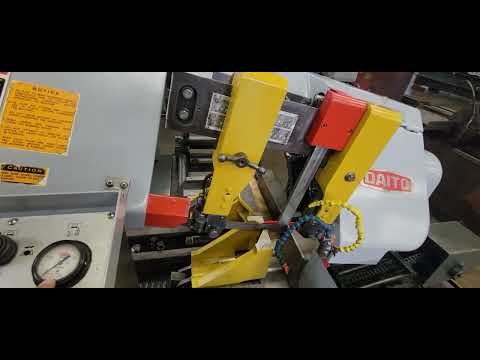

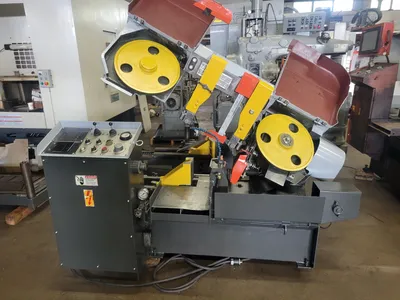

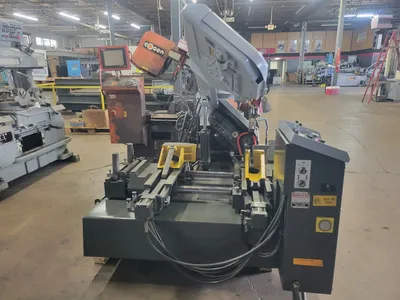

Daito Model GA 260 fully automatic, NC Programmable horizontal bandsaw with Variable vise Pressure, 1.25" Blade and 6' Dead Roller table

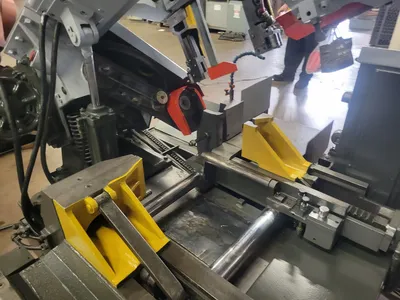

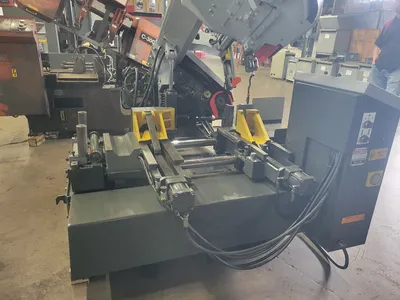

Variable vise pressure, 1.25" Blade, 6' dead roller table, Programmable control, 16" shuttle with automatic multiple strokes up to 393" feed, 2 Piece Front vise for burr free cut off, powered Blade brush, joy stick control, Chip conveyor
General Specifications
BLADE SIZE 0.0042” X 1.25” X 11’6”
CUTTING CAPACITIES
ROUNDS 10 ¼”
FLATS 12” X 10 ¼”
BUNDLES 12” X 4”
BLADE SPEEDS (VARIABLE) 66- 525’ PER MINUTE
MAX WORKLOAD 5500 LBS
SAW WHEEL DIAMETER 17”
FEEDING STROKE
SINGLE 16”
MULTIPLE 32’ 9 ¾”
MOTORS
BLADE 5 HP
HYDRAULIC 1 HP
COOLANT 1/12 HP
CHIP CONVEYOR 1/30 HP
HYDRAULIC RESERVOIR CAPACITY 10.6 GALLONS
COOLANT RESERVOIR CAPACITY 21 GALLONS
Equipped With

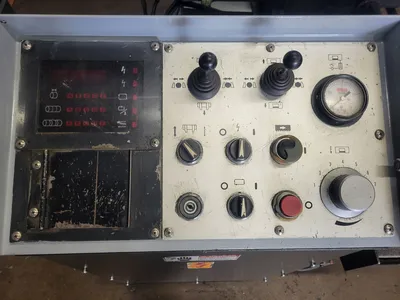

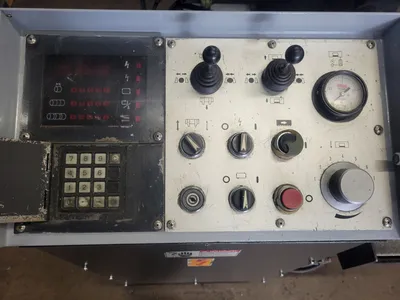

DIGITAL CONTROL WITH self diagnostics
rake type jam resistant SCRAP CONVEYOR
INFINITELY VARIABLE DOWN FEED PRESSURE
Safety guard covers blade will sawing
vise pressure regulator for thin tube cutting
Adjustable COOLANT SYSTEM
Joy stick for operation of saw

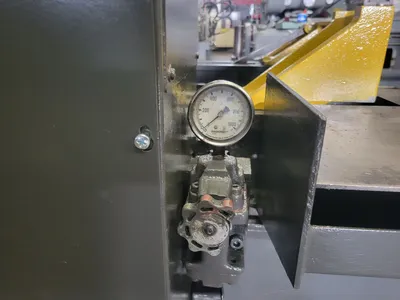

Hydraulic P.S.I gauge
Approximate Overall Dimensions 75 1/4” W X 62 1/4”D X 39 3/4” H
Approximate Overall Weight 2750 LBS
