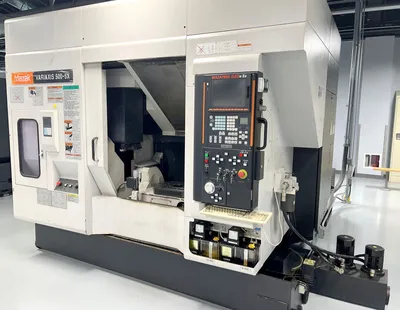

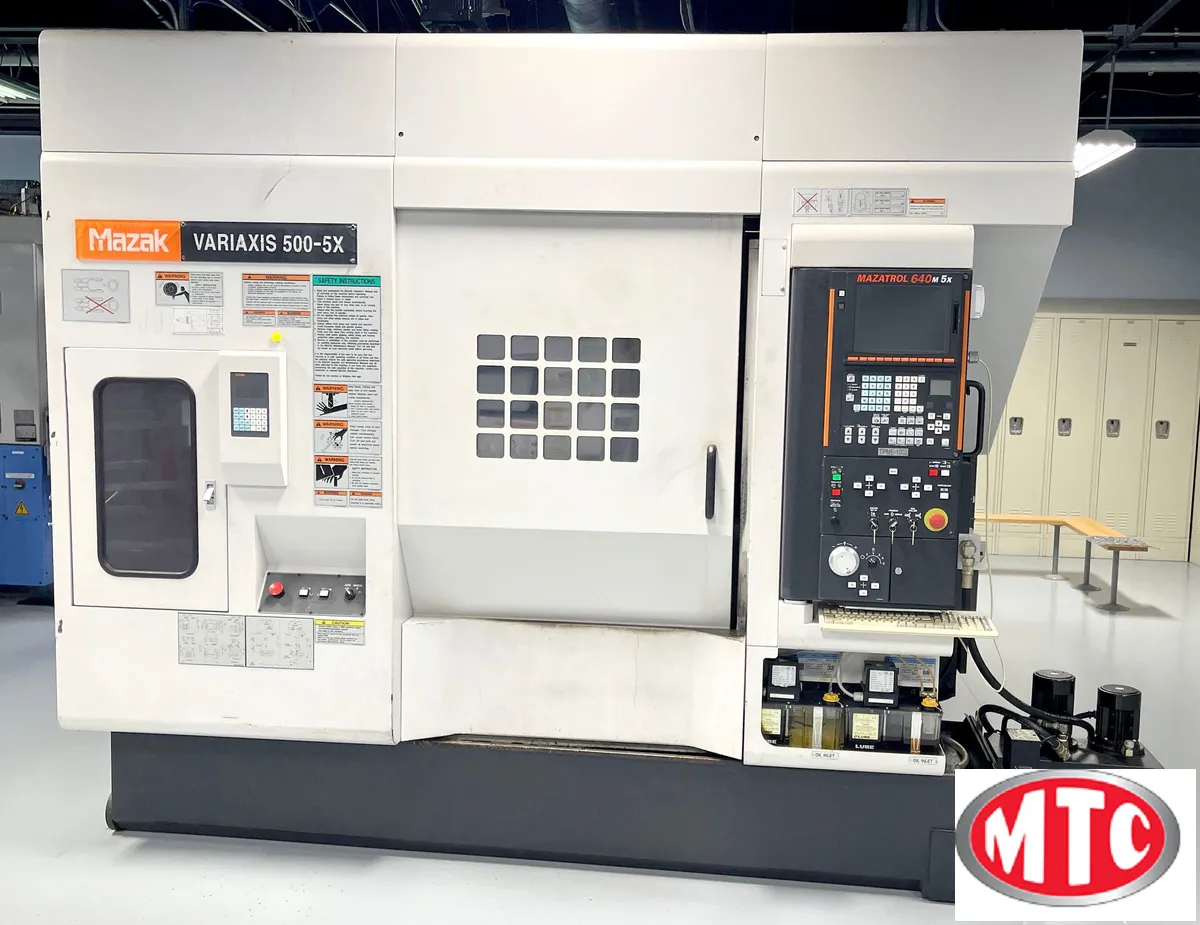

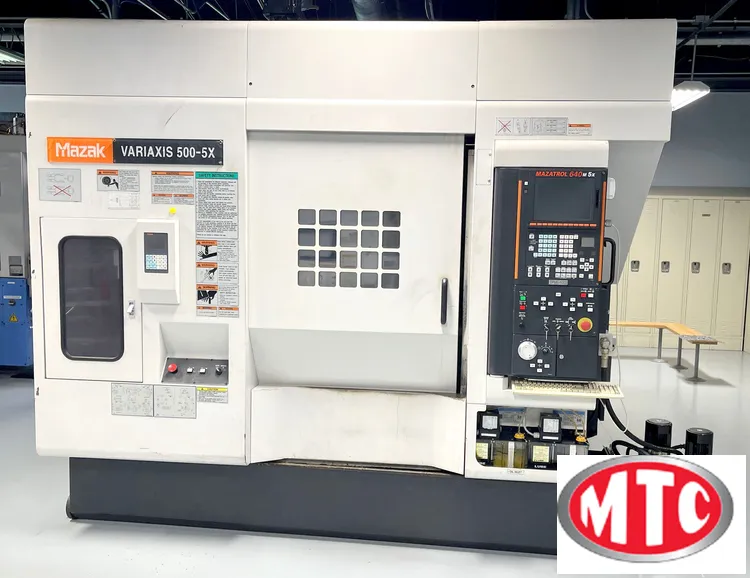

Used 2006 MAZAK VARIAXIS 500-5X 5-AXIS | Horizontal Machining Centers

Rotary Table / Trunnion: 5th Axis Trunnion
Tool Magazine Capacity: 30

Number of Pallets: 1
Max Tool Diameter: 3.5 inches

Table / Pallet Size: 19.69" x 15.75 inches
Max Tool Diameter(adjacent): 4.92 inches

X-Travel: 20.08 inches
Chip-to-Chip Time: 4.5 seconds

Y-Travel: 20.08 inches
Spindle Nose to Table Top: 7.48-25.59 inches

Z-Travel: 18.11 inches
Max Tool Length: 11.81 inches

Spindle Taper Type: HSK63
Max Tool Weight: 17.6 lbs

Spindle Speed: 12,000 RPM
Max Table/Pallet Load: 661 lbs

Spindle Motor: 30 HP
Additional Machine Specs: Travels:
- A-Axis: +/-150° (-120° to +30°)
- B-Axis: 0.001°

Control Make/Model: Mazatrol 640M 5X CNC Control

Additional Control Options: Windows 2000 Operating System
High Speed Smoothing
Die Mold Package
Machine Options: Tool Presetter
