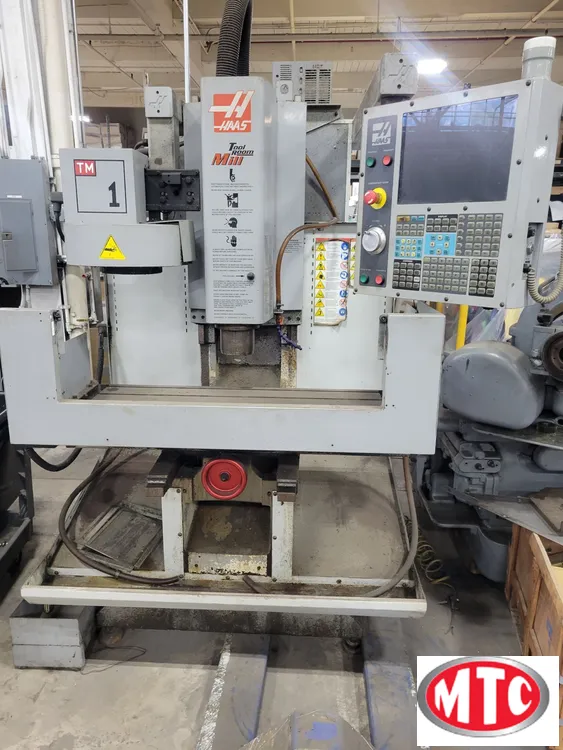

Used 2008 HAAS TM-1 | 2 & 3 Axis Control Vertical Milling Machine

Have one to sell?
847-290-0167
sales@myerstc.com
$15,950.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
2 & 3 Axis Control Vertical Milling Machine
Manufacturer:
HAAS
Model:
TM-1
Year:
2008
Stock #:
8535
Status:
For Sale
Serial #:
1068916

Description

Haas Tool Room Mill, with hand wheels , Coolant system, Table splash guards and 10 tool Automatic tool changer

10 Tool Automatic tool changer, Coolant system, Table guards, Quick Code

Table-W10.5"266.7 mm
Table-L47.75"1,212.8 mm
Travel-Long30"762 mm
Travel-Cross12"304.8 mm
Power7.5 hp5.6 kW
RPM6,000 RPM6,000 RPM
Taper#40 Cat#40 Cat
ControlCNC (Haas Quick code)CNC (Haas Quick code)
Dimensions6' x 6' x 7' tall Approx.6' x 6' x 7' tall Approx.
Weight5,5005,500

Model: TM-1
Travels: 30” x 12” x 16”
Distance spindle to table: 4” to 20”
Table: 47.75” x 10.5”
Spindle rpm: 4,000
Spindle HP: 7.5
Spindle taper: Cat 40
ATC: 10 place
Rapid travels: 400 ipm
Max. cutting speeds: 400 ipm
Max. tool diameter: 3.5”
Max. tool weight: 12 lbs.
