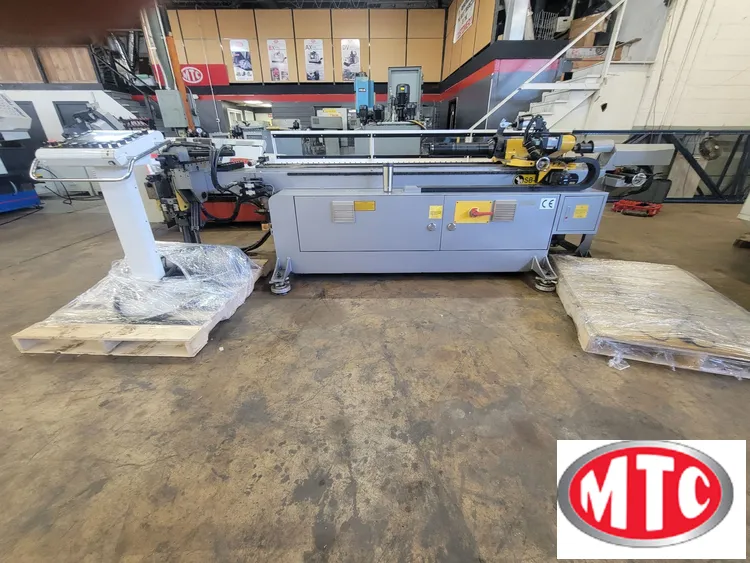

Used 2012 SOCO SB-63-AUTO | Pipe, Tube & Bar Benders

3 Axis with NC Hydraulic Bending OD 63.5mm
Tube bending machine with capacity up to OD 63.5mm
Fully Automatic and Cost Effective
Equipped with 3 programmable axis
Feeding – Electric Servo
Rotation – Electric Servo
Bending – Hydraulic (NC)
Hydraulic pressure die assist for every bending stack
Equipped with Wiper, clamping and pressure die seats
Programmable early mandrel extraction system
Touch screen system
Electric servo controlled feeding & rotation axis to ensure high precision (+/- 0.2mm and +/- 0.2° ) and reliability
NC programmable hydraulic bending precision up to +/- 0.2 °
Data input by XYZ or YBC coordinates
Data storage and editing for multiple files

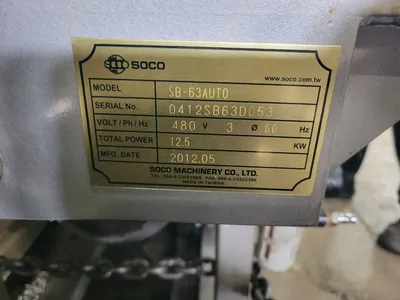

Model SB-63AUTO

Maximum tube O.D. (CLR 1.5D) 2-1/2” x .098” mild steel

2-1/2” x .064” stainless

Maximum Tube Length with Mandrel 125” (3200mm)

Maximum Feeding Stroke 79” (2030mm)

Maximum Bending Radius 9.8” (250mm)

Maximum Bending Angle 1900

Bending 450/sec +/- 0.200

Plane Positioning 1200/sec +/- .0150

Feeding 27”/sec +/- 0.010”

Electrics 15HP hydraulic 400w rotation plane servo

750w feeding servo

Approximate Weight 5,500 lbs.

Dimensions (L x W x H) 160” x 51” x 50”
