Used 2010 HAAS GR-510 | Gantry Machining Centers (incld. Bridge & Double Column)
Have one to sell?
ConditionUsed
1 available

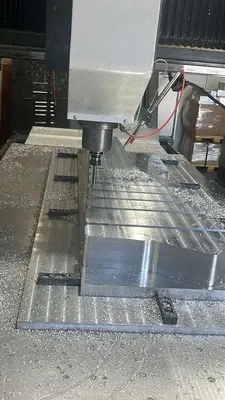

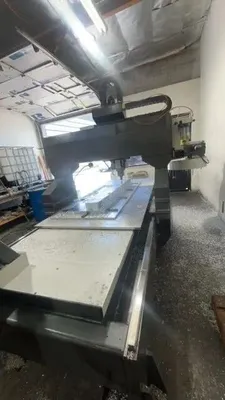

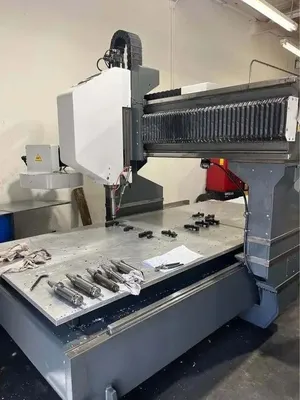

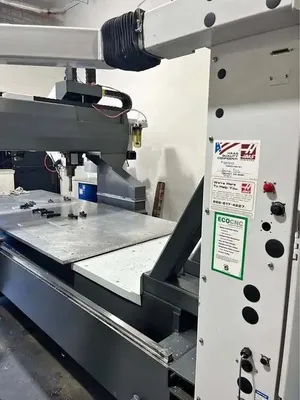

The Haas GR Series gantry routers have the power to cut aluminum and other metals, as well as the speed to cut plastics and other light materials. These machines easily handle large sheets of material, or can machine small parts by the thousand. The rigid steel construction of the GR Series provides a very stable cutting platform, and a 1" thick aluminum table is standard. A traveling guard protects the operator from chips and coolant, and keeps the workspace clean.
Rigid-steel construction
Traveling guard for chip and coolant containment
1" thick aluminum table
Haas 61" by 121 travel Gantry mill, 11" "Z"Z travel, 10,000 RPM, 15 HP spindle with Cat#40 taper and 10 tool automatic tool changer
Travels S.A.E METRIC
X Axis 121.00 in 3073 mm
Y Axis 61.00 in 1549 mm
Z Axis 11.00 in 279 mm
Spindle Nose to Table (~ max) 13.5 in 343 mm
Spindle Nose to Table (~ min) 2.5 in 64 mm
Spindle S.A.E METRIC
Max Rating 15.0 hp 11.2 kW
Max Speed 10,000 RPM
Max Torque 48.0 ft-lbf @ 1500 rpm 65.0 Nm @ 1500 rpm
Drive System Direct Speed, Belt Drive Direct Speed, Belt Drive
Taper CT 40 CT 40
Table S.A.E METRIC
Length 122.0 in 3099 mm
Width 53.0 in 1346 mm
Max Weight on Table (evenly distributed) 6000 lb 2722 kg
Between Columns 62.0 in 1575 mm
Feedrates S.A.E METRIC
Max Cutting 800 ipm 20.3 m/min
Rapids on X 800 ipm 20.3 m/min
Rapids on Y 2100 ipm 53.3 m/min
Rapids on Z 1100 ipm 27.9 m/min
Axis Motors S.A.E METRIC
Max Thrust X 2520 lbf 11210 N
Max Thrust Y 1020 lbf 4537 N
Max Thrust Z 2050 lbf 9119 N
Tool Changer S.A.E METRIC
Type Carousel Carousel
Capacity 10 10 tool capacity
Max Tool Diameter (full) 3.5 in 89 mm
Max Tool Weight 12.0 lb 5.4 kg
General S.A.E METRIC
Coolant Capacity 95 gal 360 L
Air Requirements S.A.E METRIC
Air Required†4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar
Electrical Specification S.A.E METRIC
Spindle Speed 8100 rpm 8100 rpm
Drive System Direct Speed, Belt Drive Direct Speed, Belt Drive
Spindle Power 15.0 hp 11.2 kW
Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
Full Load Amps (3 Phase) - Low 40 A 40 A
Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
Full Load Amps (3 Phase) - High* 20 A 20 A
Dimensions - Shipping S.A.E METRIC
Domestic Pallet 206.0 in x 111.0 in x 108.0 in 524 cm x 282 cm x 274 cm
Weight 19400 lb 8800.0 kg
