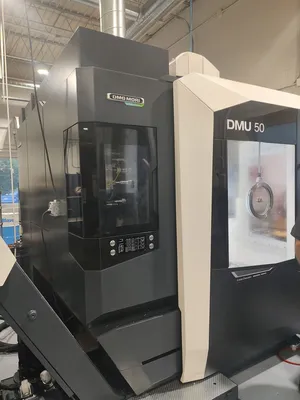

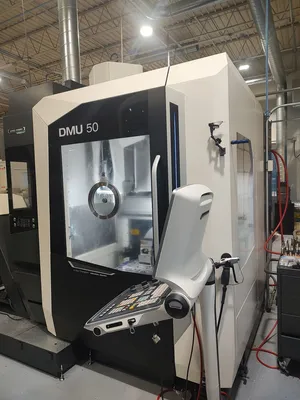

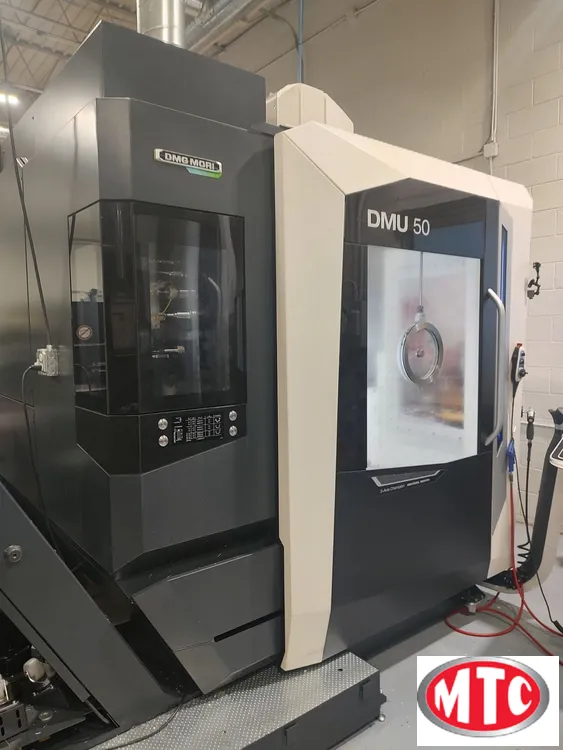

Used 2022 DMG MORI DMU 50 GEN III | Vertical Machining Centers (5-Axis or More)
Have one to sell?
ConditionUsed
1 available

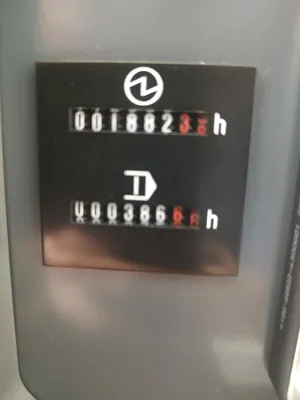

Beautiful 5 Axis Machine loaded with Options like 20,000 RPM, 120 ATC, Laser probes, Internal Coolant, from one shift Aerospace supplier, only 1880 Power on 385 Machining
By CELOS simple operation and holistic Integration in the business organization
_ Optimum flexibility – swivel rotary table in standard for automatic 5-axis machining
_ Optimum space economy – Excellent accessibility to the work area, good chip disposal,
large working area in relation to small machine size
_ High stability – one piece machine basement made of grey cast iron
_ Digital drives and direct measuring systems guarantee highest precision and top surfaces
_ Mounting of tool magazine parallel to production time
_ Powerful standard specification –, 137,8 ft/min rapid traverse,
_ Tool magazine optional up to 120 pockets
20,000 RPM, HSK-A63 Spindle, 120 tool Magazine, Chip conveyor, Internal Coolant Supply, 40 Bar, Rotating Window cleaner, Coolant Gun, Mist collector, Infrared probing, Laser Tool measurement, 3D Quick set, CSA Specs, Electronic Hand wheel, Siemens CELOS Safety package for power failure . Hour meter
Basic machine
DMU 50 3rd Generation
Control

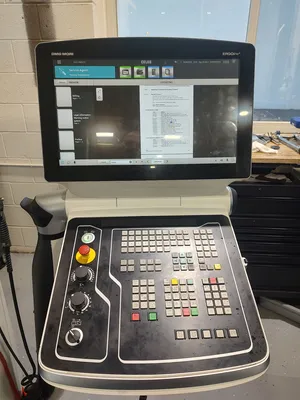

CELOS with Siemens 840D sl Operate
Spindle
Spindle speed 20.000 rpm, HSK-A63
Working table
NC swivel rotary table
Tool magazine

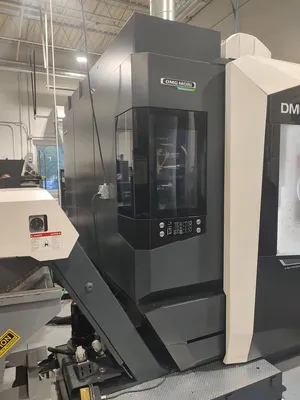

Tool magazin 120 pockets HSK-A63
Cooling media / chip removal

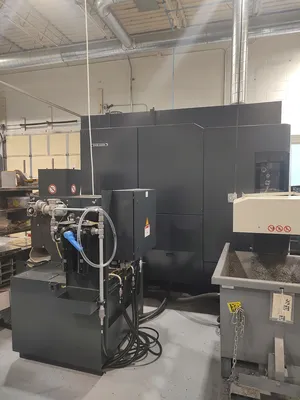

Swarf conveyor, with cleaned slot screen
Internal coolant supply 40bar/600l
Rotating clear-view window
Spray gun for swarf removal
Oil- and emulsion mist separator mechanical
Measuring / Monitoring
Infrared measuring probe PP60 optical
Laser tool measuring BLUM DIGILOG
3D quickSET
General options
Frequency 60 cycles, without surcharge
Machine version Inch
CSA Specification
UL conformity
Options for software general
Electronic handwheel
Options for CELOS with Siemens / Siemens
Safety package for power failure (incl. IPC)
Documentation
Documentation 1 English
Screen Text Language
Screen text German/English
