New 2025 HYD-MECH M-20A | Horizontal Band Saws (Semi-Automatic)
Have one to sell?
ConditionNew
1 available
New

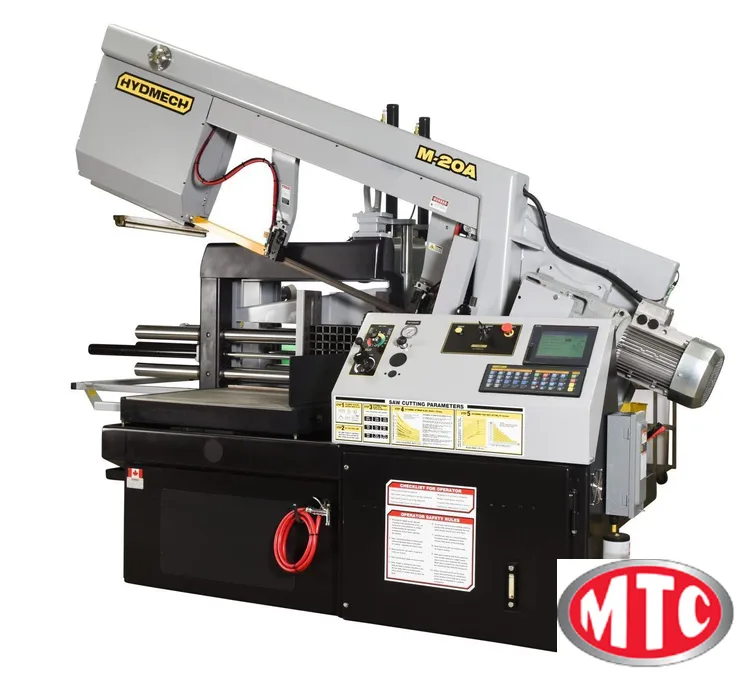

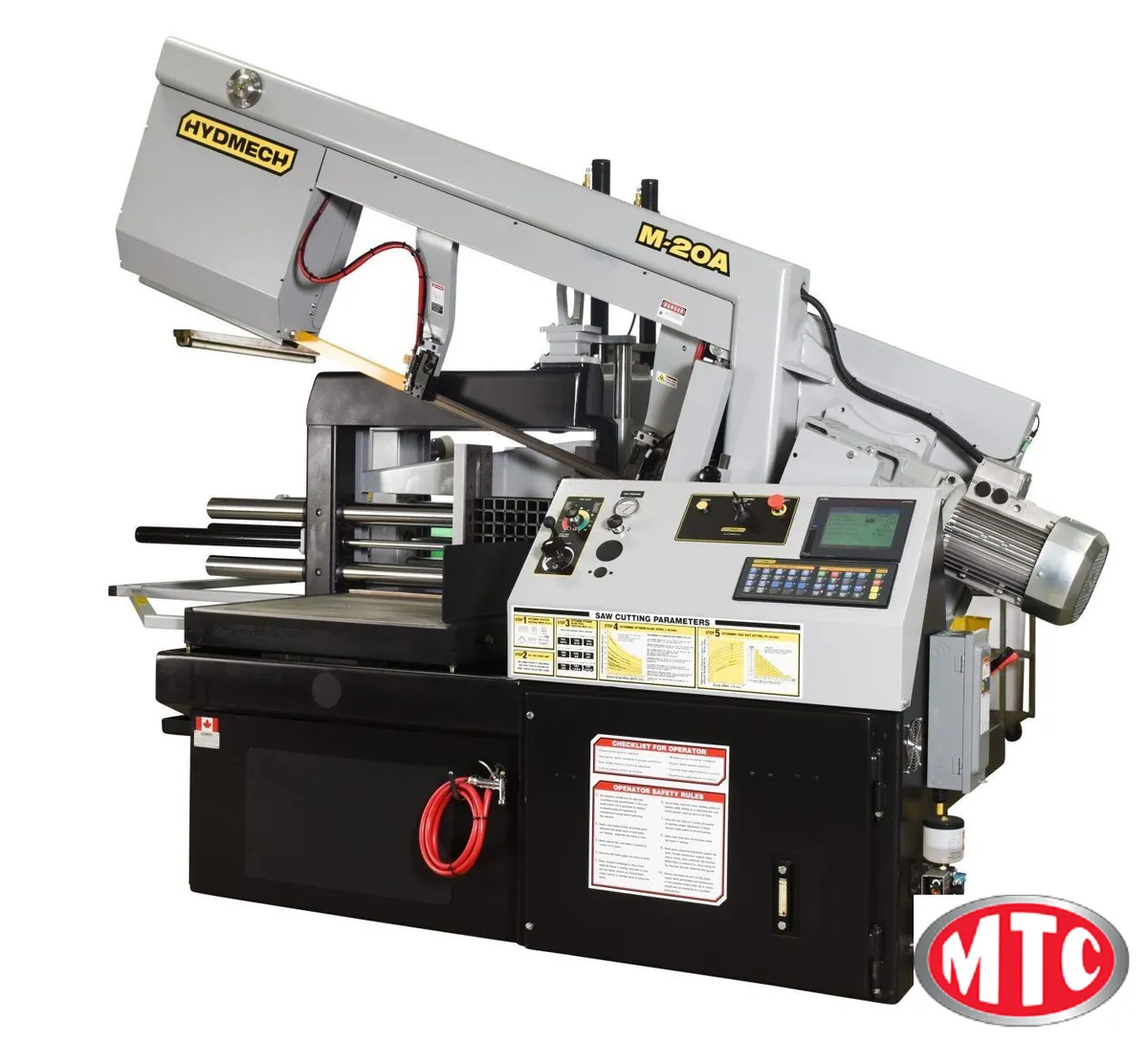

The M-20A is an automatic horizontal pivot band saw providing exceptional miter cutting capability for heavy-duty applications.
It features a powerful motor and gearbox with variable frequency drive to provide exceptional cutting performance on a wide range of material.
The M-20A band saws standard PLC 500 control features a “go to” function which allows for automatic alternating between programmed angles. The M-20A miters from 90° to 60°.
Featuring a 20″H x 30″W capacity at 90°, 10 HP motor, and 1 1/2″ blade, the M-20A is a reliable choice for your heavy-duty metal cutting applications.
Automatic chip removal auger • Easy access electrical panel and hydraulics Blade breakage switch
• Hardened replaceable wear plates on material vises
• Hydraulic band tensioning
• Hydraulic carbide guide tensioning
• Safety door interlocks
• Flood coolant with wash down hose
• Laser light
• Work light
• Out of stock switch
• Variable vise pressure
OPTIONAL $$$$
Chip bucket $700.00
Full capacity overhead bundling vises $6,200.00
Mist Lubrication System, (requires shop air) $ 1,900.00
Voltage 480 volt 3 Phase 60 cycle No/charge
Voltage change to 208 3 phase $ 1,700.00
Remote control console 10' cord $ 5,100.00
5' infeed conveyor idler rollers $ 4,900.00
10' infeed conveyor idler rollers $ 9,900.00
Infeed and outfeed conveyors upon request
Technical Specifications
Capacity Rectangular (h x w) Round
90° 20” x 30” 20”
45° 20” x 19” 20”
30° 20” x 12” 14”
Blade Size 1 1/2” x 20’ 6” Work Load 8,000 lbs.
Blade Drive 10 HP VFD Machine Weight 7,700 lbs.
Machine Voltage 480 v Table Height 32”
Blade Speed 50-350 SFM Dimensions (w x l x h) 129” x 90” x 110”
Coolant Tank Capacity 9 Gallons
Standard Machine Features
• Automatic programmable mitering with “go to” angle functionality
• Automatic multi-indexing up to 33” in a single stroke.
• Steel guide arms mounted on linear rails. Hydraulically powered idler side guide arm is adjustable for proper spacing.
• 10 HP VFD. True direct blade drive – no belts/pulleys
• Full capacity, full stroking hydraulic vises
• Hydraulic positive down feed • Blade chamber separates material from cut part
• Cast iron band wheels
• 8.5” color touch screen HMI. Mitsubishi FX5U PLC. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. User Friendly Graphical Icon programing for miter cutting, 1000 jobs, 20 jobs in queue
• Replaceable blade brush
• Robust steel base
•
