Used 2018 HAAS UMC-750SS | Universal Machining Centers

DESCRIPTION:

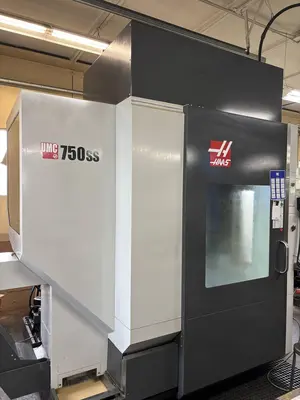

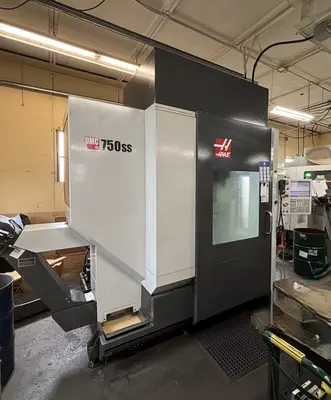

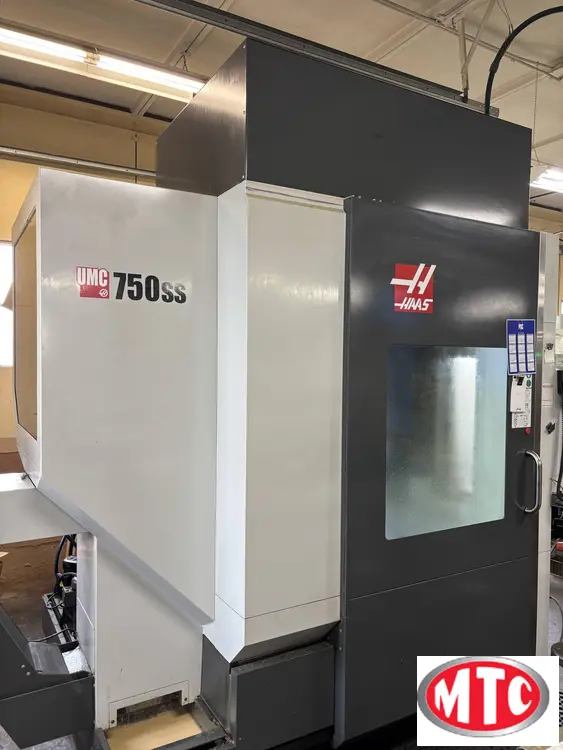

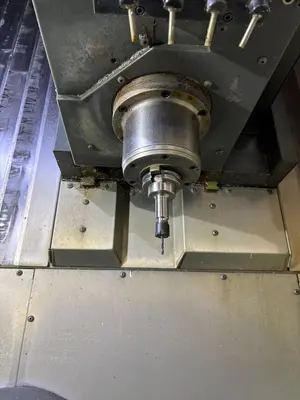

2019 HAAS UMC-750SS, used vertical 5-axis machining center. Equipped with Haas NextGen Control, 15,000 RPM spindle, and Renishaw probing. Tool capacity of 40 with built-in 5-axis table. Cutting time: 2,095 hours. Original owner, primarily cut aluminum, brass, and stainless steel.

SPECIFICATIONS:

2019 HAAS UMC-750SS
SPECIFICATIONS:
PLATTER DIAMETER........... 19.7"
TABLE LOAD CAPACITY........ 660 lb
X-AXIS TRAVEL.............. 30"
Y-AXIS TRAVEL.............. 20"
Z-AXIS TRAVEL.............. 20"
B-AXIS (TILT) TRAVEL....... +120 DEGREES TO -35 DEGREES
C-AXIS (ROTATION) TRAVEL... 360 DEGREES
SPINDLE SPEED.............. 15,000 RPM
SPINDLE MOTOR.............. 30 hp
SPINDLE TAPER.............. CAT 40
TOOL CAPACITY (ATC)........ 40
RAPID TRAVERSE RATE........ 1200 ipm
CUTTING FEED RATE.......... 650 ipm

EQUIPPED WITH:

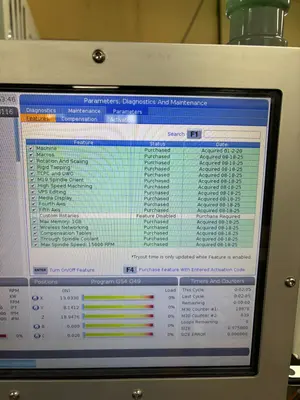

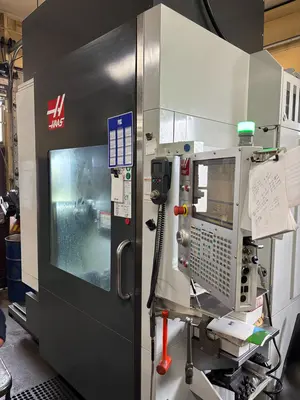

HAAS NEXTGEN CONTROL

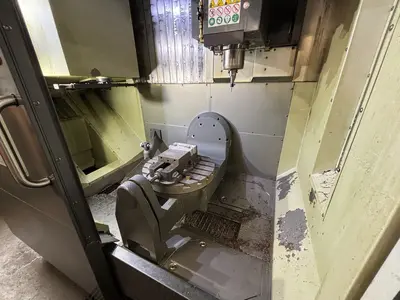

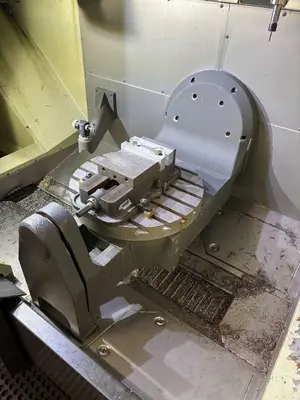

BUILT-IN 5-AXIS TABLE
4TH & 5TH AXIS DRIVES & WIRING
THROUGH SPINDLE COOLANT
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
40 POSITION TOOL CHANGER
15,000 RPM SPINDLE
BELT-TYPE CHIP CONVEYOR
REMOTE JOG HANDLE (TOUCH SCREEN)
DYNAMIC WORK OFFSETS & TOOL CENTER POINT CONTROL
COORDINATE ROTATION & SCALING
MEDIA DISPLAY M-CODE (M130)
HIGH-SPEED MACHINING
COMPENSATION TABLES
SPINDLE ORIENTATION (M19)
RIGID TAPPING
EARLY POWER-FAILURE DETECTION MODULE
WI-FI CONNECTION
HAAS REMOTE MONITORING
SECOND HOME POSITION
MACROS
USB PORT
ETHERNET
1GB MEMORY
CT-STYLE TOOL CHANGER GRIPPERS INCLUDED
PROVISIONED FOR MIST EXTRACTION
** ORIGINAL OWNER

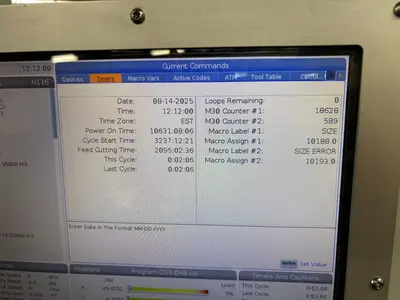

** AS OF AUGUST 14, 2025, CUTTING TIME HOURS: 2,095
** MACHINE CUT PRIMARILY ALUMINUM, BRASS, & STAINLESS STEEL
** MACHINE BUILD DATE: MAY, 2019
** MACHINE INSTALL DATE: DECEMBER, 2019
** FULL REPLACEMENT COST, AS EQUIPPED: $281,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
