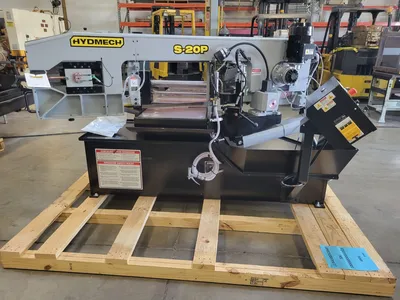

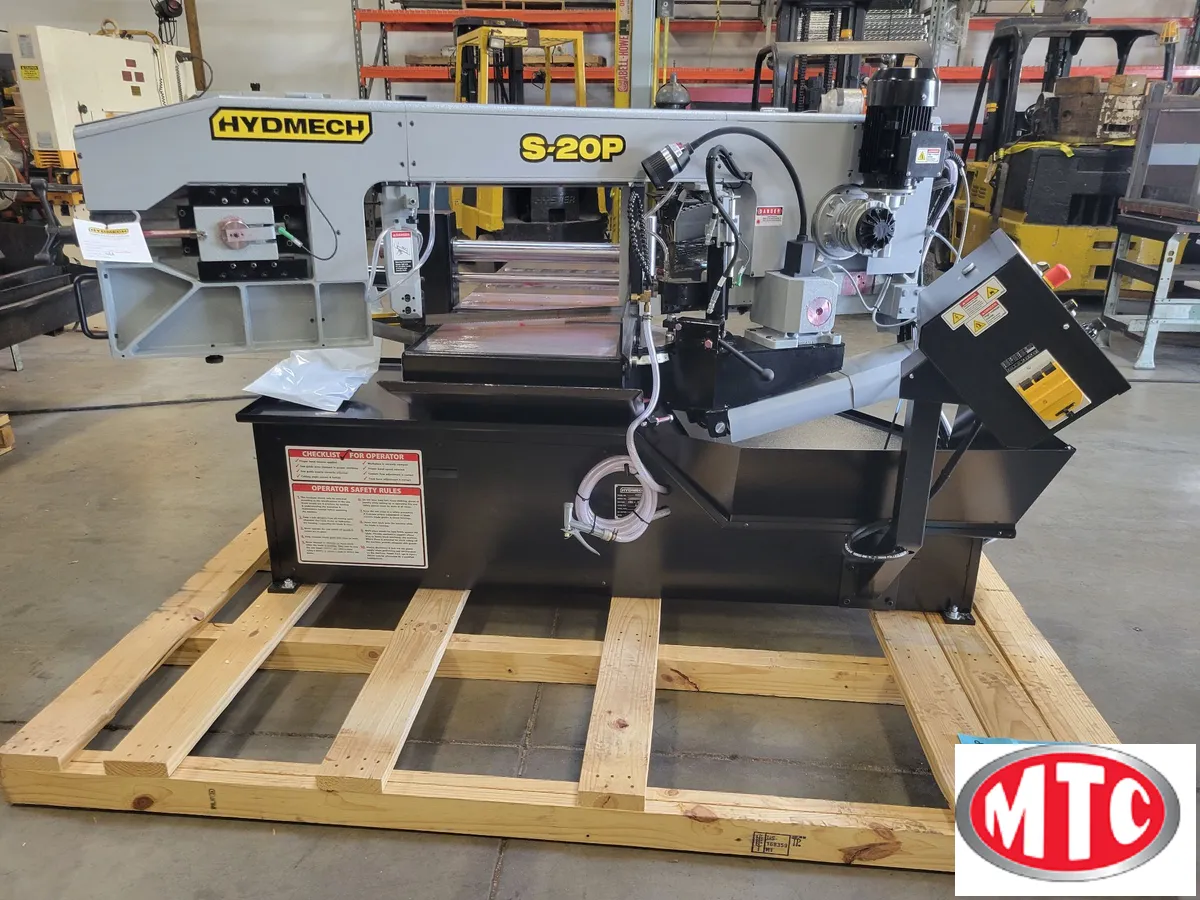

Hyd-mech, horizontal Semi-automatic bandsaw, Up to 60 degree Mitering, Hydraulic head lift and Vise travel & variable vise pressure
Hydraulic head lift, Hydraulic full travel Vise, coolant system with wash down hose, 3 HP, AC varible blade drive, Cast iron head, easy swing up to 60 degree cutiing head, 36" roller infeed table, swing away control panel, Laser light and work light, Variable Vise pressure, one year warranty and manuals
Technical Specifications
Capacity Rectangular (h x w) Round
90° 13” x 18” 13”
45° 13” x 10 3/4” 12”
30° 13” x 7 3/4” 8 1/2”
Blade Size 1” x 14’ 10” Work Load 5,000 lbs.
Blade Drive 3 HP VFD Machine Weight 2,500 lbs.

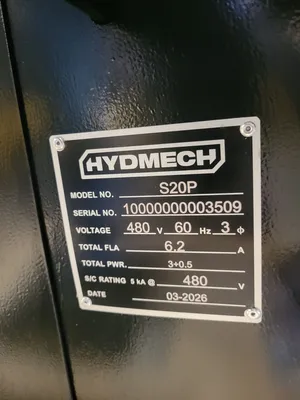

Machine Voltage 480 v Table Height 31”
Blade Speed 45-330 SFM Dimensions (w x l x h) 92” x 75” x 52”
Coolant Tank Capacity 6 Gallons
Standard Machine Features

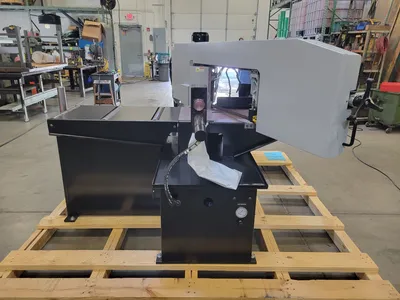

• Easy swing, heavy duty cast iron saw head that can swing up to 60 degrees in one direction

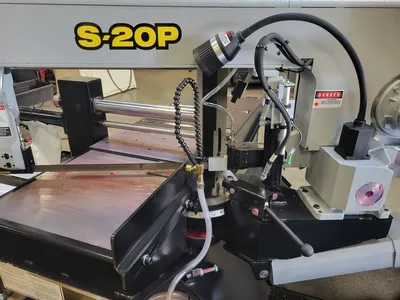

• Full capacity, full stroking hydraulic vise
• 3 HP VFD. True direct blade drive – no belts/pulleys
• On-demand hydraulics save energy

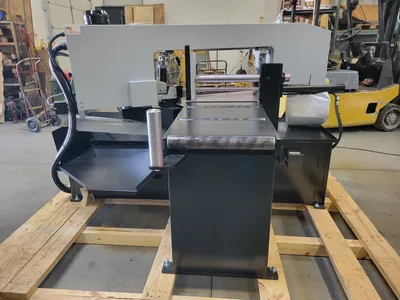

• 36” material in-feed roller table and 19” out feed table

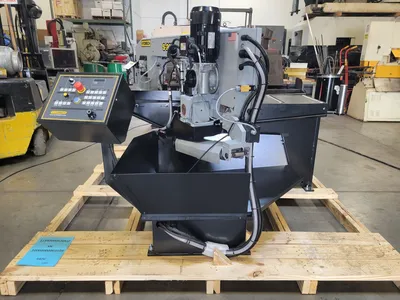

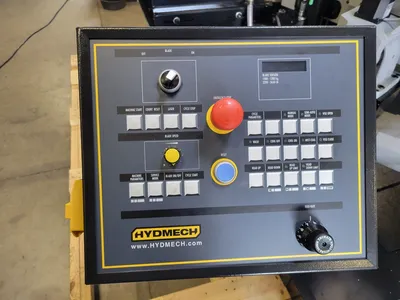

• Cast iron band wheels • Swing away semi-automatic operator control panel
• Replaceable blade brush
• Robust steel base
• Easy to read angle scale with angle locking mechanism

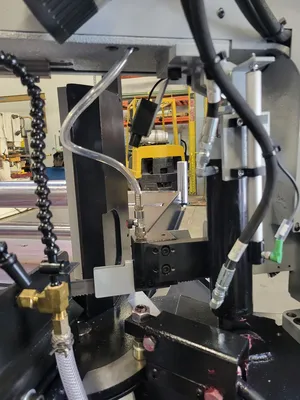

• Cast iron guide arms. Idler side guide arm is adjustable and supported by linear rail.
• Gravity fed sawing head with infinite down feed adjustment • Mechanical band tensioning with digital readout
• Preset replaceable carbide guide inserts
• Safety door interlocks

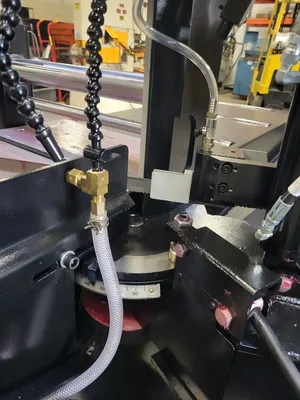

• Flood coolant with wash down hose
• Laser light
• Work light
• Variable vise pressure
Optional Machine Features
• Full capacity hydraulic overhead bundling
• Idler conveyors • Work stop – 34”
• Single phase – 220 v -VFD
• Left hand side control panel • Mist lubrication
• Remote operator console
