Olympia 70", CNC VTL, Fanuc 180i-T, "C" axis Live tool, 30 ATC, Movable column, 66" table

Table diameter 66"
Maximum Swing 70"
Standard Turning Diameter 68"
Chuck Diameter 66"
Maximum under rail 70"
Table drive power 5
"X" axis travel 60
No. Of Tools 32
Control mfg. Fanuc
Control model 180i-T
Max. Table speed 350 RPM
Weight 58,000 lbs.
Live milling RPM 2,500
Live spindle taper Cat 50
Cross rail travel 40"
Vertical Ram Travel 40"
Machine, column and rail 180" x 114" x 140 high, 42,000
Elevating mechanism and ATC 105" x 101" x 108" High, 6,000
Control panel, transformer & tooling 6,000 #
Main drive motor 41"x 18"x 28" 1,100#
Hydraulic unit 40"x 40"x 40" 600#
Chip conveyor w/ coolant tank 149"x 52"x 80" 1,560#
leveling pads pallet 24"x 24"x 12" 800#
electrical cabinet 71"x 21"x 79"H 1,200#
Table drive power 50 HP
More VIDEOs Please copy and paste in your browser
https://youtu.be/wiTMd6Oaj1g

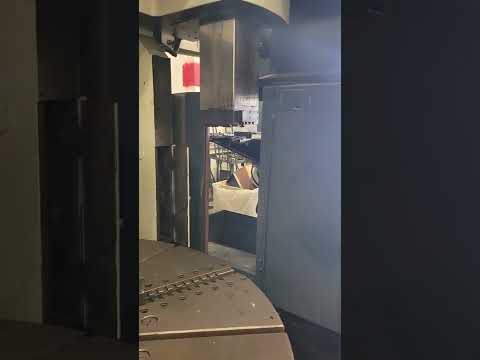

Table 100 RPM and axis moving

Tool change sequence 7-26-2022

https://youtu.be/ecgLx2xQ_kQ
