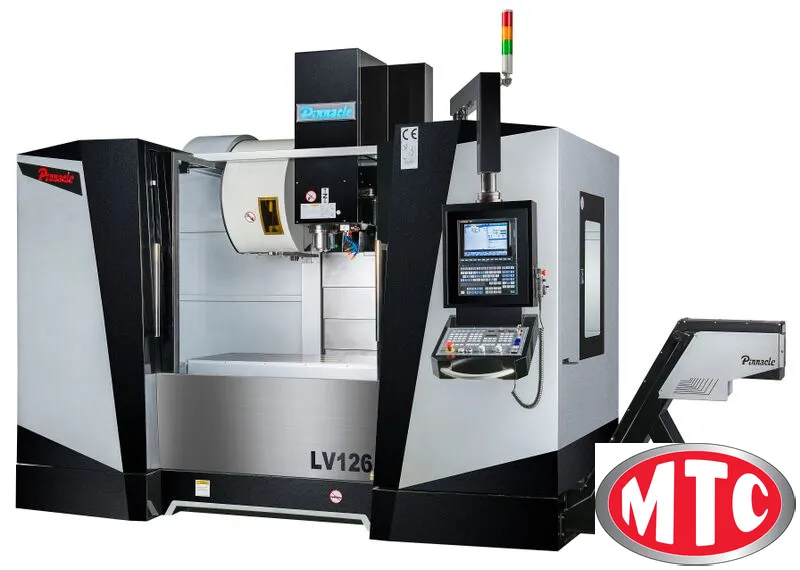

2022 PINNACLE SV-126
Vertical Machining Centers
Fanuc Oi-MF Control, 10.4" Color CRT, AICC II (200 blocks), Fanuc function Jerk control and Manual Guide 0i., Chip conveyor, Coolant system, Work light, Auto lube, Operation status light, spindle air blast, cutting air blow, Spindle oil cooler, Flushing system, Full splash guard, 40 Taper 24 Tool Arm type tool changer, Programmable coolant nozzle, 4th axis pre wire and oil skimmer. TWO (2) year Warranty Machine and control, Parts and labor.
Table Size 57" x 24"
Table Load 1900 lbs.
X Axis Travel 51.1"
Y Axis Travel 24"
Z Axis Travel 24"
Spindle Nose to Table 4.3" to 28.3"
Spindle Taper Cat # 40
Spindle Speed 8,000 RPM
Rapid on (X, Y, Z) 787 IPM
Cutting Feedrates 393 IPM
Tool Changer Type Swing Arm
Tool Changer Capacity 24 Tools
Tool Shank Cat #40
Pull Stud Coolant thru
Max Tool Diameter 3.54"
Max. Tool Weight 17.6 lbs.
Spindle Motor 30 H.P.
Drive Motors (X, Y, Z) 4.07 HP
Chip Conveyor Type Screw type
Coolant Tank capacity 300L, 80 Gallons
Power Required 30 KVA
Air Required 85 PSI
Floor Space ( L x W x H ) 134" x 87"
Machine Weight 15,000 lbs.
Coolant Thru Spindle 20 bar/ 300 psi
Draw Bar Force 2000 kgf/ 4,400 lbs.
24 Station Swing arm tool changer $7,295.00 package
Control Cooler $ 1,095.00 package
High intensity lighting $ 795.00 package
Spindle air blast $ 995.00 package
"M"- functions $ 1,495.00 package
Hi- Speed machining $ 2,795.00 package
User macros $ 2,795.00 package
Spindle orientation $ 895.00 package
Optional 80 Gallon Coolant $ 895.00 package
Extended 2nd year Warranty $ 6,195.00 package
Chip Flush separate pump $ 695.00 package
Coordinate Rotate & Scaling $ 1,395.00 package
Programmable coolant nozzle $ 1,595.00 package
Chip Auger $ 2,795.00 package
Freight CA to IL $ 1,500.00 package
Visual Part program system Manual guide i $ 1,995.00 package
Spindle oil chiller $ 1,995.00 package
Oil skimmer $ 795.00 package
Special edition Package price $4,950.00
Coolant Through Spindle, 300 PSI $ 6,800.00
30 tool changer upgrade $ 2,200.00
40 tool changer upgrade $ 7,800.00
ROTARY TABLE PACKAGES complete ready to run 3-jaw & tailstock
CNC 200R 8" $ 16,900.00
CNC 250R 10" Air Clamping $ 18,950.00
CNC 250R 10" Hyd. Clamping w/ hyd. unit $ 20,950.00
10,000 RPM Spindle Belt $ 3,000.00
12,000 RPM Spindle Belt $ 8,400.00
10,000 RPM DIRECT DRIVE $ 4,000.00
12,000 RPM DIRECT DRIVE $ 9,200.00
15,000 RPM DIRECT DRIVE $ 18,000.00
Coolant Through & Direct drive 10,000 RPM Spindle $ 12,600.00
Coolant Through & Direct drive 12,000 RPM Spindle $ 22,800.00
Coolant Through & Direct drive 15,00 RPM Spindle $ 28,800.00
