New 2026 VISION WIDE SF 3116 | Vertical Machining Centers (Double Column)
Have one to sell?
ConditionNew
New

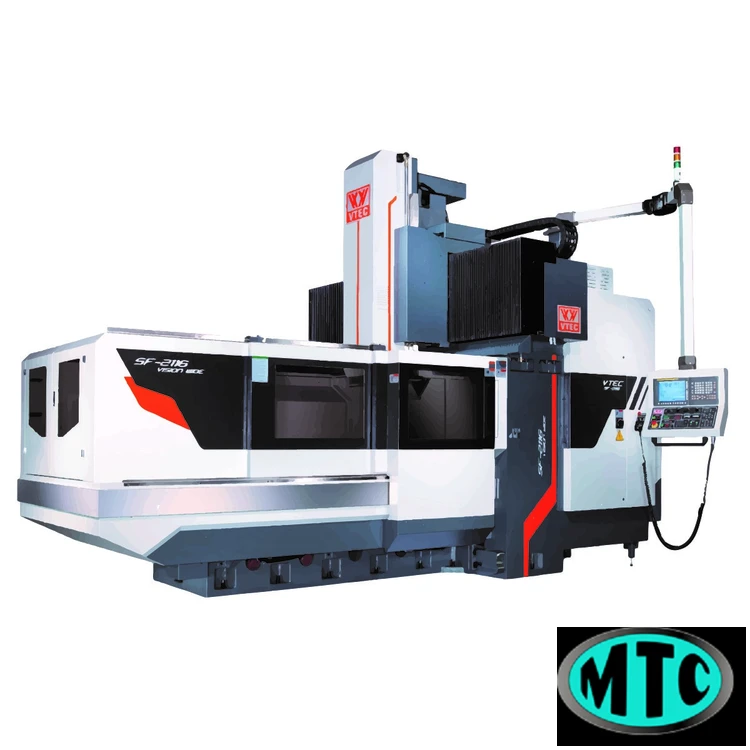

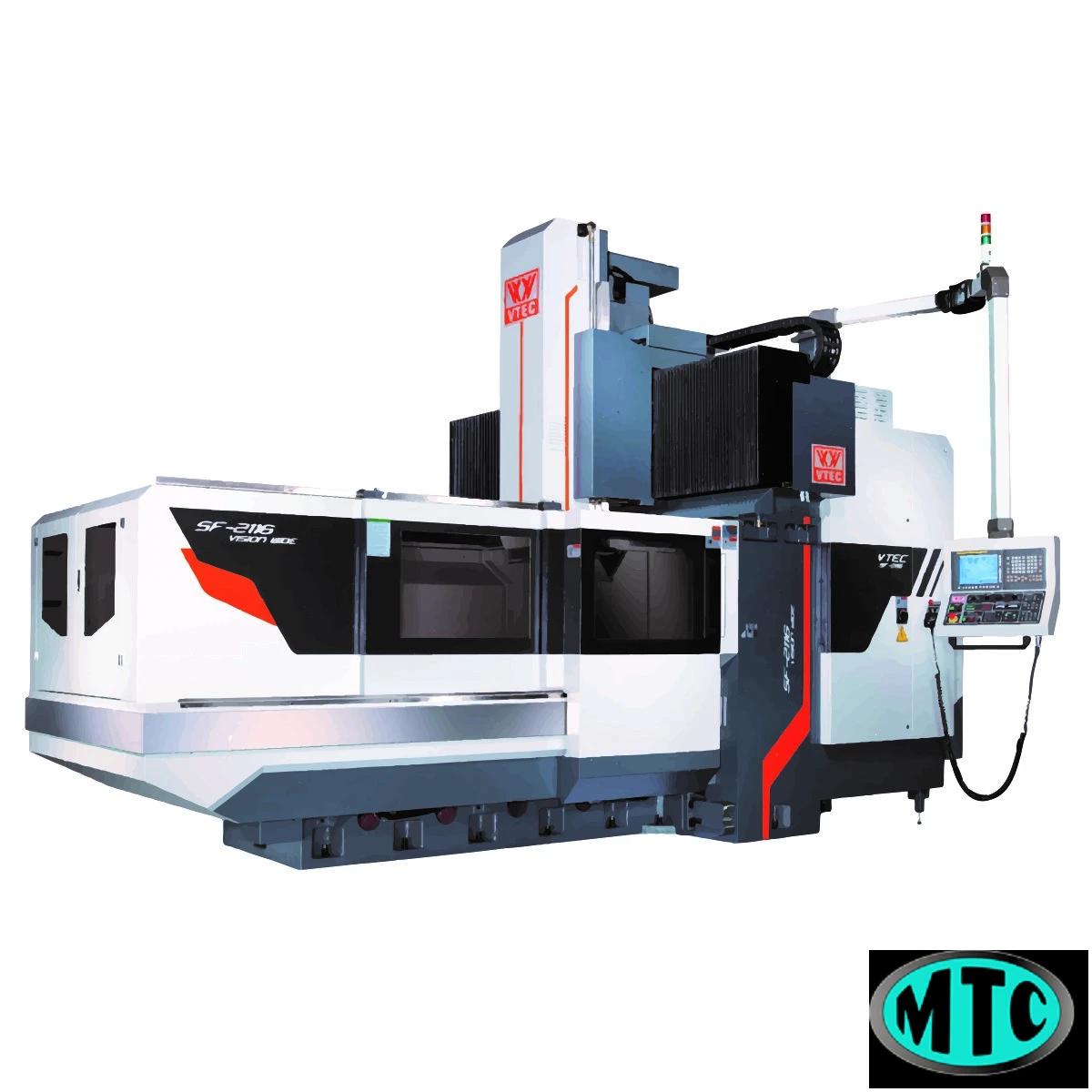

Vision Wide SF-3116 CNC Bridge center w/FAnuc Oi-MF
CNC bridge center, Vision Wide Heavy Duty, 66.9" between columns, Vision wide is one of the worlds largest builders of double column/bridge type machining centers. the SF series feature Symmetrical HD columns, heavily ribbed base and headstock to reduce thermal deformation and vibration with increased rigidity and accuracy in all types of materials, All machines are equipped with 300 psi dual filter coolant through systems, dual chip augers + lift up chip conveyor, BOX "Z" axis ways and heavy duty ROLLER way design on "X" & "Y"- "Z" axis, Hand scrapped Box Way , precision class 3 ball screws in all axis,
Fanuc Oi-MF control, and drives, 40ATC, AICC-II w/ 400 block look ahaed, 2 gig data server, Ethernet, 6,000 RPM, 35 HP, 2-speed geared head, Box ways "Z", Big Plus dual contact Spindle, 300 PSI coolant through spindle, Dual augers and Chip conveyor, Manuals, documentation, installation, one year Vision Wide Warranty, 2 year Fanuc
"X" axis travel 122"
"Y" axis travel 62.99"
"Z" axis travel (Box ways) 40.2"
Spindle center to column 17.8"
Distance between columns 66.9"
Spindle nose to table 5.1" to 45.3"
Table size 118" x 59.1"
Max. table load 22,050 lbs. full rapid
Spindle power 35HP
Spindle speed 6,000 RPM
Speed ranges 2 Step gear
Spindle taper #50 Cat Big plus
Spindle torque 605 Ft./lbs.
counter balance type Nitrogen assist
Spindle bearing diameter 4 Rows, 100mm
Optional spindles 4,000 RPM 35 HP
Optional Spindle 5,500 RPM 50 HP
Automatic tool changer 40
Max. tool weight 39.6 lbs.
Max. tool diameter 4.92"
Max. tool diameter adj. pockets empty 7.08"
Tool change time 3 seconds
Cutting feed 393.7 IPM
Rapid travers X/Y/Z 944/787/590 IPM
Axis motors, X/Y&Z 9.4/ 5.4 HP
Ball screw dia. X/Y 2.48"
Ball screw dia. Z 1.97"
Axis Thrust X/Y&Z 3760/2763 KGF
Coolant capacity 120 US Gallons
Machine net weight 52,910 lbs.
Machine floor space 386" x 210" x 173.3" high
