New - Build-To-Order 2024 PINNACLE SV-105 | Vertical Machining Centers
Have one to sell?
ConditionNew
New

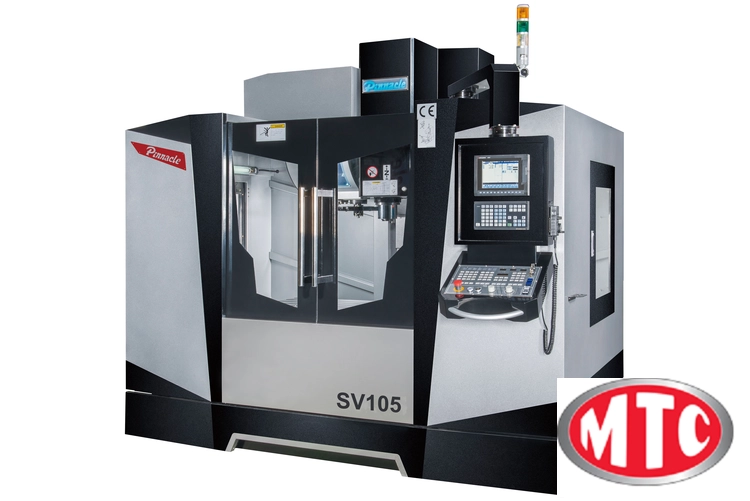

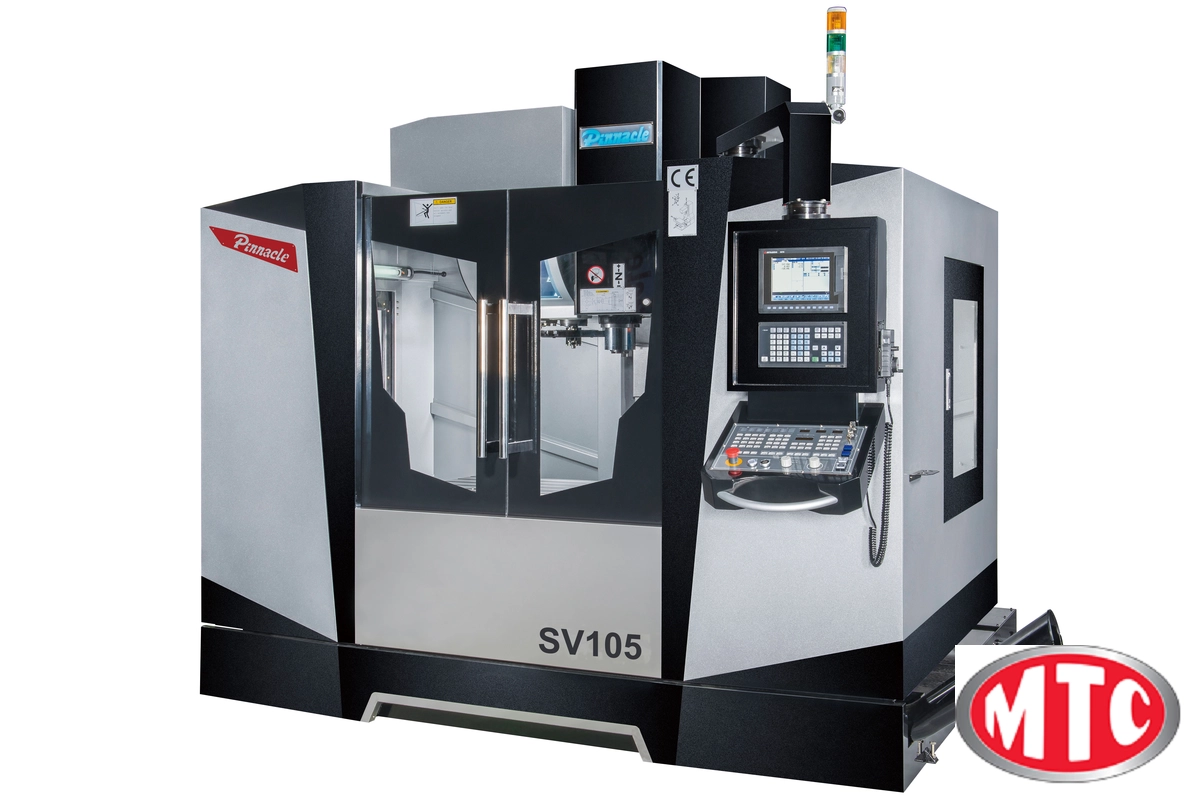

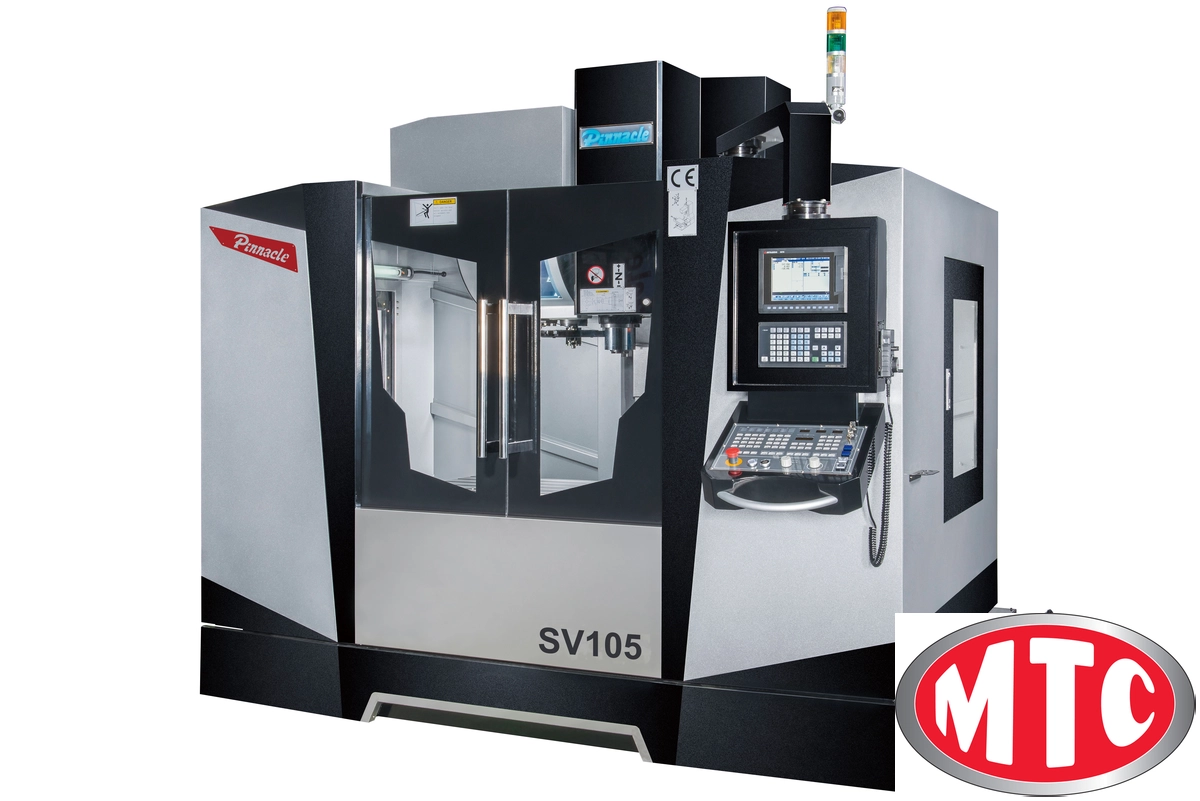

Pinnacle SV-105 Vertical Machining Center W/ Fanuc Oi-MF
Pinnacle CNC Vertical Machining Center, CNC Milling machine Model SV-105, heavy duty Box Way, meehanite castings, Patented Counter weight system, Fanuc control.ooo2" bi directional positioning accuracy FULL Travel !,
Fanuc Oi-MF (pkg. A) Control, 10.4" Color CRT, AICC II (200 blocks), Fanuc function Jerk control and MANUAL GUIDE i, Programmable coolant nozzle,chip conveyor, 24 tool swing arm tool changer, Coolant system, prep for Coolant through the spindle, Work light, Auto lube, Operation status light, spindle air blast, cutting air blow, Spindle oil cooler, Flushing system, Full splash gaurd and 2 year WARRANTY
Machine1 year Warranty Parts and labor, control 2 years parts and labor
Table Size 47" X 20"
Table Load 2,433 lbs.
X Axis Travel 40.15"
Y Axis Travel 22"
Z Axis Travel 22"
Spindle Nose to Table 4.3" to 28.3"
Spindle Taper Cat# 40
Spindle Speed 8,000 RPM
Rapid on (X, Y, Z) 944 IPM
Cutting Feedrates 393 IPM
Tool Changer Type Swing Arm
Tool Changer Capacity 24 Tools
Tool Shank Cat #40
Pull Stud coolant thru
Max Tool Diameter 4.52"
Max. Tool Weight 17.6 Lbs.
Spindle Motor 22.5 HP
Drive Motors (X, Y, Z) 4 HP
Chip Conveyor Type Screw, "X" axis
Coolant Tank capacity 200 L
Power Required 20 KVA
Air Required 6 Kg/cm2
Floor Space ( L x W x H ) 102" X 89"
Machine Weight 12,000 lbs.
Coolant Thru Spindle Optional
Draw Bar Force 4,400 lbs.
Cat 40 10,000 RPM Belt drive $2,900.00
Cat 40, 10,000 RPM Direct drive $3,750.00
Cat 40, 12,000 RPM Belt drive $6,850.00
Cat 40, 12,000 RPM Direct drive $7,500.00
Cat 40, 15,000 Direct Drive $16,200.00
Coolant through Spindle (belt Type) 300 PSI $6,500.00
ZF gearbox + bigger Oil cooling system $11,700.00
Extended column 200mm ( 7.87") $3,600.00
Linear scales "X", "Y"&"Z" $11,520.00
F.O.B. Elk grove Village, Il
Delivery ARO 60 to 90days
