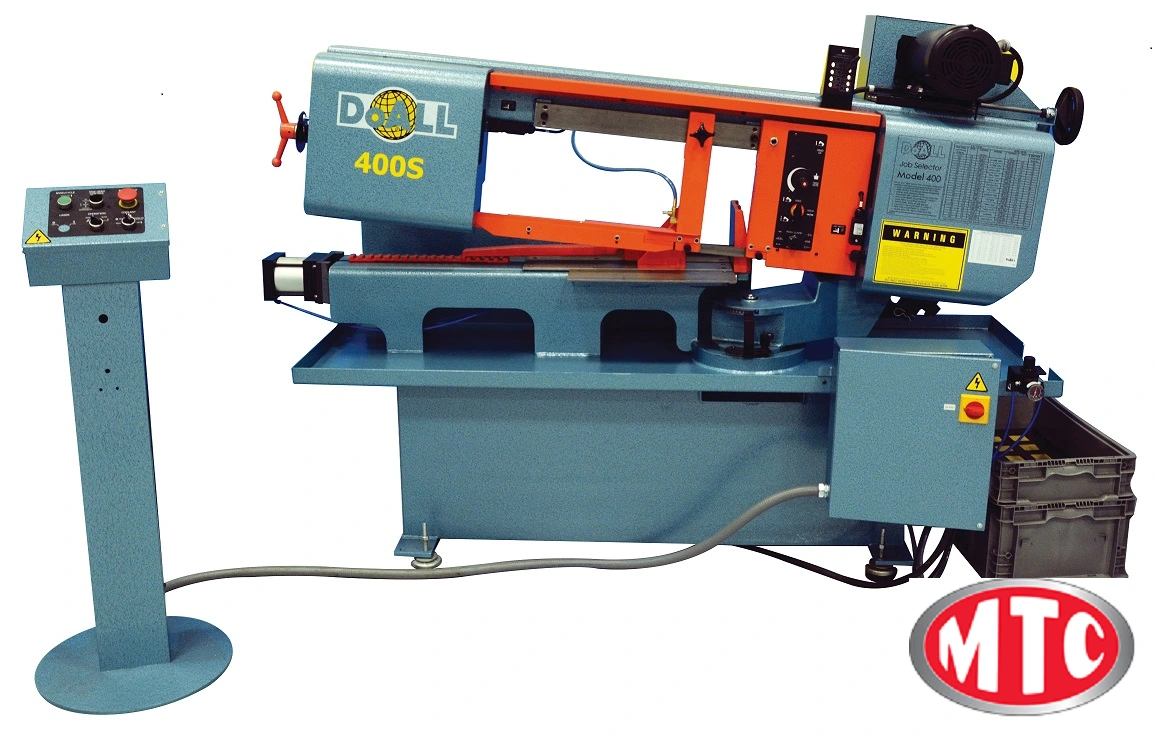

2026 DOALL 400S-SA, Semi-Automatic Mitering

at 90 degrees 10" H X 16" Wide
at 45 degrees 9" H X 10-3/4" Wide
Blade size 1" x .035" x 158" long
Blade speed 105 to 275 FPM
Blade motor 2 HP 220/440 volt
Coolant capacity 6 Gallons
Band tension Spring loaded hand wheel
Feed control infinite variable
Head counterbalance Spring loaded
Vise manual / Air option
band wheel dia. 14-1/2"
Weight 1,200 lbs.
material pass line 29-1/8"
Table capacity 1,800 lbs.
full load amps 2.7-7.2 amps
Floor space required 87" x 42" x 55" high

A)Full cycle Attachment provides Pneumatic head raise and vise clamp allowing for
head raise to pre-determined height after the cut in auto mode. Pneumatic operations
remain active in manual mode $3,000.00
B) 5 ft. Medium-duty idler conveyor 16" between frames. roller capacity 850 lbs. $1,520.00
C) Gravity roller table 10' $2,477.00
D) additional conveyor rollers $79.00
E) 24" Discharge table $370.00
F) 18" adjustable work stop $ 758.00
G) Band mist lubricator $1,860.00
H) Work Light $ 304.00
I) Laser line generator $1,248.00
J) flushing hose attachment $ 183.00
K) Additional USB stick Manuals $ 91.00
L)
M) Discounted installation and training up to 6 hours $ 999.00
N) Starter Kit of six pack blades, consist of 1 each, silencer plus 3-4 tooth, 4-6, 5-8, 8-12, and
StructurALL 4-6 & 5-8 tooth $383.49
O) 5 Gallon pail of Koolrite 2290 Coolant $190.13
P) 5 Gallon Pail of AL-2000 Mist coolant $239.68
