New 2023 DOALL S-320NC | Horizontal Band Saws (Automatic)
Have one to sell?
ConditionNew
New

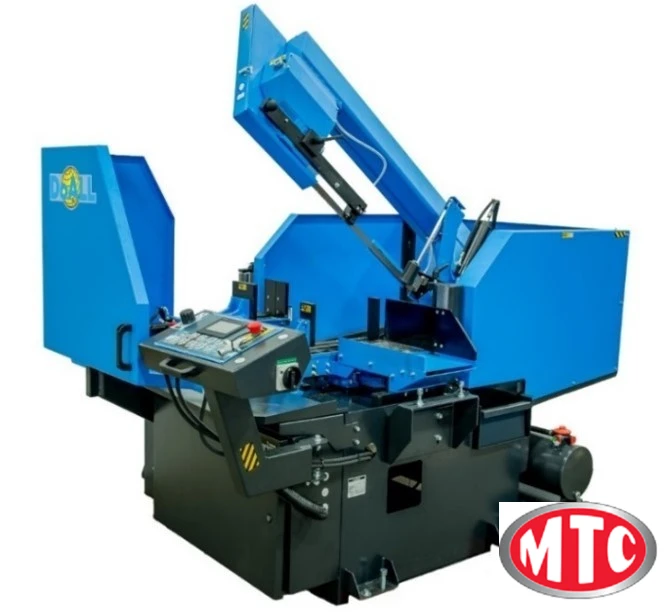

Doall S-320CNC Swivel Bandsaw 2022
Doall S-320NC Swivel Bandsaw, Heavy Duty bandsaw, Production Bandsaw.
Mitsubishi Saw Control, Overfeed Protection, Discharge Chute, Digital Read Out of Cutting Angle, Pulley-Driven Band Brush, Work Height Sensor, Work Light, VFD, Flood Coolant, Tool Kit, and all manuals.
Cutting capacity Round 7.1"
Rectangular 13" x 12"
Bandsaw Blade Size 1 x 0.035" x 144"
Band Drive Motor HP 3 HP
Band Speed 65-328 FPM
Band Tension Hydraulic
Hydraulic Motor 1.14 HP
Coolant Pump 0.6 HP
Coolant Capacity 5 1/4 Gallon
Auto Index Single Stroke min-max 0.12" to 19.7"
Auto Index Multiple Stroke Max 394"
Electrics 230V, 60Hz, 3 ph
Approx. dimensions 91" x 90" x 60"
Machine weight 1,764 lbs.
