New 2025 MAGIDO GROUP X51 | Washing & Degreasing
Have one to sell?
ConditionNew
New

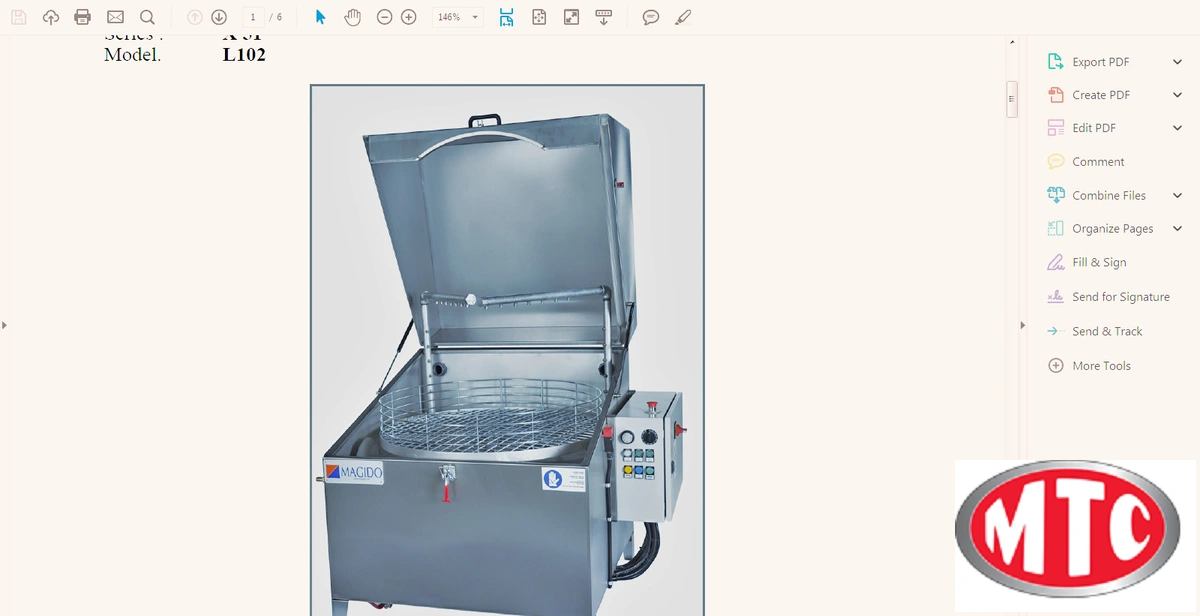

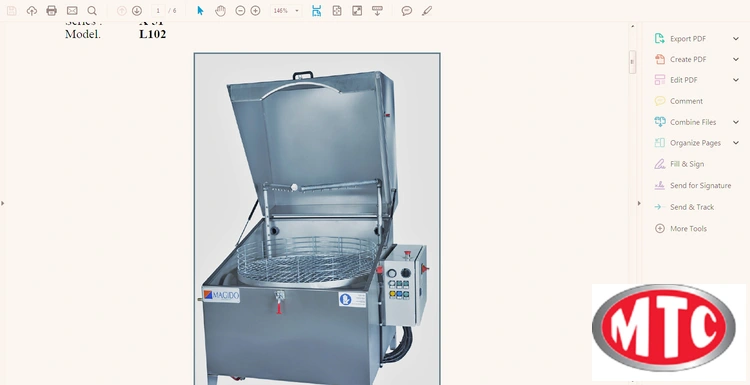

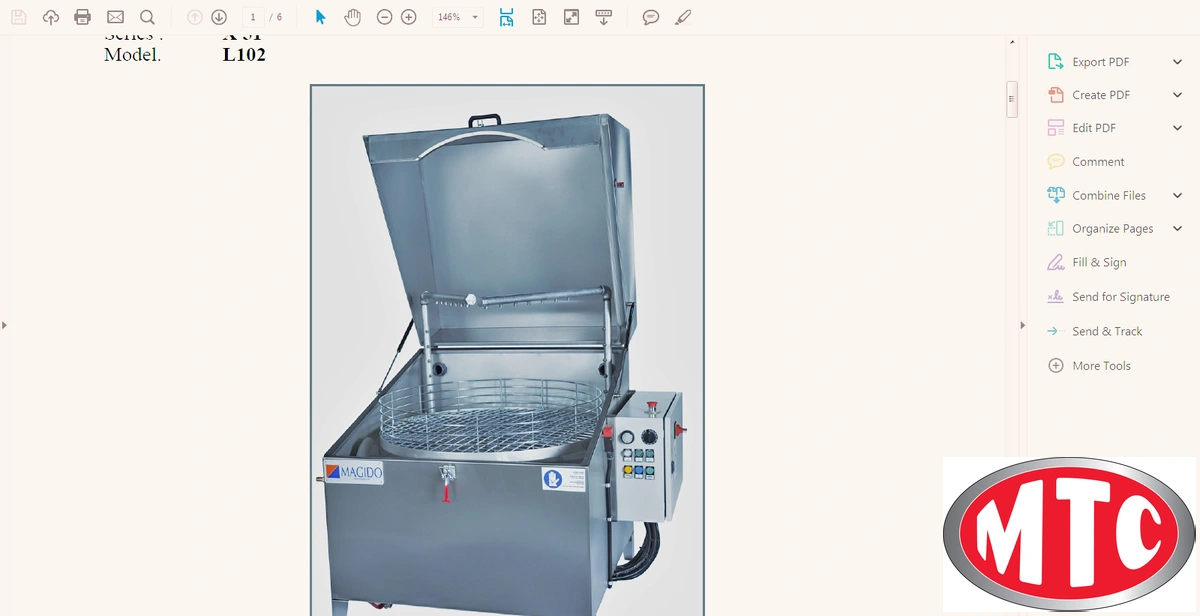

Magido Parts Washer, Washing machine with 2 pumps
Stainless steel Parts washer, Industrial parts washer,
Construction: The machine body is entirely build in aisi 304.
Water Circuit: Two independent AISI 304 pumps intake water solution from the tanks and feeds
spray pipe and nozzles.
Static Filter : Water solution flows back to the tank after been filter by two gravity filters of 1000
micron.
Electrical Heater: A stainless steel heater in AISI 304 heat up the water in the tank , A digital
thermostat controls the water temperature constantly till the preset value ( range 60-140°F),
Turntable Rotation : By external motor and v-belt drive.
Water Level Shut Off : The unit is equipped with a floater to stop the machine in the case of low
water level. Restore water is manual .
Manual Lid : The machine lid is a manual type supported by two gas struts the help the final
opening
Electro Mechanic Electrical Box : IP 55, painted RAL 7032.
Spray pipe in stainless steel, Oil Skimmer, .automatic wash cycle, 2 pumps 1.7 HP each, 12 month Warranty parts
Turntable diameter 35" External
Loading Hieght 19"
Loading weight 440 lbs.
Wash tank Volume 46 Gallons
Pump power 1.7 HP x 2
Pressure in 2 pumps 37 PSI
Flow rate in 2 pumps 29 GPM
Heater 6 KW
Drain tap 1,1/2"
Gearbox power 1/2 HP
RPM 7 RPM
Power used 8 KW
Voltage 440V 3 Phase, 60 cycle
Width 49"
height with lid open 78,1/4"
Depth with lid open 51"
Dry weight 440 lbs.
Ambiant air blow off $ 1,200.00
End of cycle light with buzzer $ 400.00
Removable turntable (modification) reduces interior $ 400.00
Height from 19" to 16", load to 37" $ 400.00
Extra removable turntable $ 800.00
Basket changer, cart $ 2,471.00
Automatic water-fill $ 400.00
24/7 progremmable heater control $ 500.00
factory freight $ 450.00
