New 2024 PINNACLE DV 1442 | Vertical CNC Milling Machines
Have one to sell?
ConditionNew
New

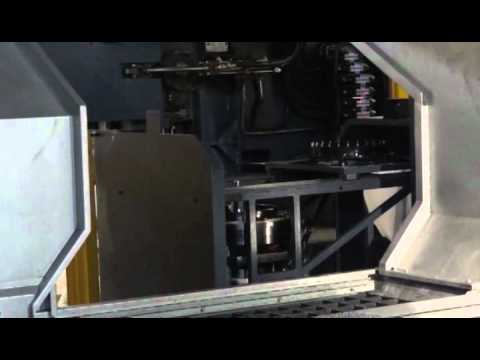

Pinnacle DV 1442 Double column machining center
Double column Vertical machining center, Bridge Type machining center, Planer type CNC machining center,
Fanuc Oi-MD, 10.4" LCD, AICC II, Jerk control, Semi Splash guard, Chian type chip conveyor & two screw type chip auger, 32 ATC, Auto door for ATC, Spindle oil cooler, Heat exchanger, Transformer, Coolant system, air gun and water gun, work lamp, "Z" axis BOX ways,
"X" Axis travel 165"
Y" Axis travel 55.1"
"Z" axis travel 35.4"
Distance between Columns 55.1"
Table size 165" x 48"
"Z" Axis guide ways BOX
No. of Bearing support Blocks "X"/ "Y"/"Z" 16/6/6
Distance spindle nose to Table 4.3" - 41.7"
Ball Screws / linear way size X/Y/Z 2.75", 1.96",1.96"/ 2.16",1.77
Spindle Taper Cat 50
Spindle Speed 2 speed GEARED HEAD, 8,000 RPM
Draw bar force 4,000 lbs.
Spindle power 20/25 H.P. 30 mins.
Optional Spindle motor Add $5,000.00 25/30 H.P. 30 mins.
Optional speeds DEDUCT-#5,000.00 10,000 RPM #40 taper -5,000.00
Cat.50 10,000 RPM direct drive, w/ column ext.13.7" to 49.2"= $ 20,000.00
Cat. 50 10,000 RPM Built in spindle+ Column ext. 7.8 to 43.3" = $ 36,000.00
Data Server 2 GB & Ethernet $4,000.00
Coolant thru spindle 300 PSI $15,900.00
Full Splash guarding, including roof $21,000.00
