New 2024 PINNACLE SV-116/40 | CNC Machining Centers
Have one to sell?
ConditionNew
New

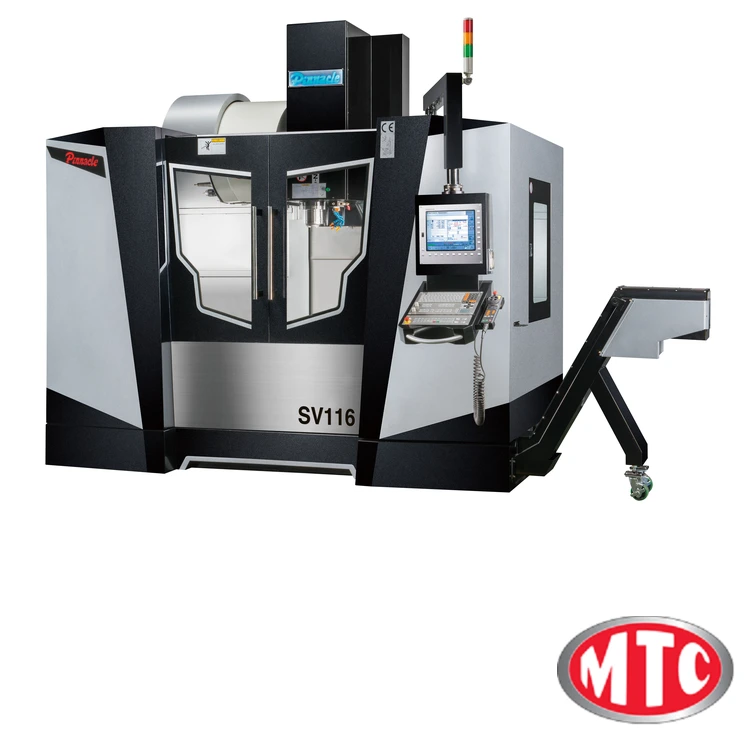

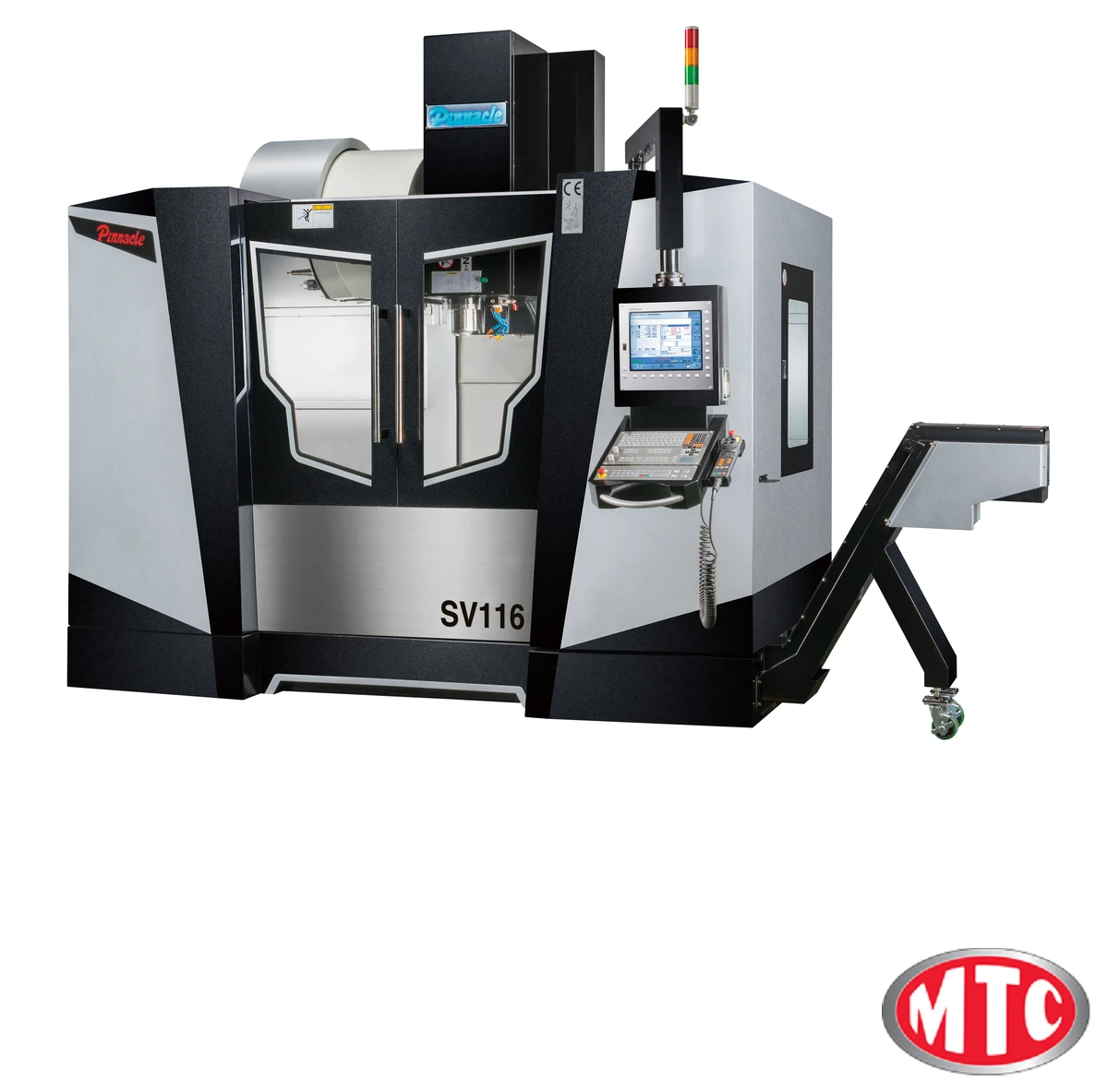

Pinnacle SV-116/40 Vertical Machining Center, Fanuc Oi-MF
Pinnacle CNC Vertical Machining Center, CNC Milling machine Model SV-116, heavy duty BOX Way, meehanite castings, Patented Counter weight system, , Fanuc control, 0.0001" bi directional positioning accuacy FULL Travel !,
Fanuc Oi-MB control w/ 10.4' Color display, Fanuc function Jerk control and Manual Guide 0i., AICC-II (200block look ahaed), 40Taper, 6,000 RPM, BOX ways, 24 tool swing arm tool changer, Programmable coolant nozzle, , Coolant system, Work light, Auto lube, Operation status light, spindle air blast, cutting air blow, Spindle oil cooler, Flushing system, Full splash gaurd, All Manuals and tool box.
Machine2 year Warranty Parts and labor, control 2 years parts and labor
Table Size 51" X 25.5"
Table Load 1900 lbs.
X Axis Travel 44.8'
Y Axis Travel 24"
Z Axis Travel 24"
Spindle Nose to Table 4.3" to 28.3"
Spindle Taper Cat #40
Spindle Speed 6,000 RPM
Rapid on (X, Y, Z) 944 IPM
Cutting Feedrates 400 IPM
Tool Changer Type Swing Arm
Tool Changer Capacity 24 Tools
Tool Shank Cat #40
Pull Stud Coolant through type
Max Tool Diameter/ Length 5" /13.7"
Max. Tool Weight 44 lbs.
Spindle Motor 22.5 HP
Drive Motors (X, Y, Z) 4 HP
Chip Conveyor Lift up, chain type $ 4,600.00
Coolant Tank capacity 300L, 80 Gallons
Power Required 30 KVA
Air Required 6 Kg/cm2
Floor Space ( L x W x H ) 120" X 86" X 116"
Machine Weight 15,000 lbs.
draw bar force 2000 kgf/ 4,400 lbs.
Fanuc Oi-MB upgrade INCLUDED
Spindle chiller INCLUDED
Spindle 12,000 RPM belt type $8,400.00
Spindle 12,000 RPM Direct drive $9,200.00
coolant thru Spindle Belt type $ 6,400.00
Programmable coolant nozzle INCLUDED
30 tool ATC $2,000.00
4th Axis table8", All wired in $ 17,918.00
Extended "Z" travel to 31.88" $7,000.00
Linear Scales X, Y & Z $12,500.00
Delivery ARO 60 to 90days
Terms ... 30% Down 60% At Dock Bal 10 Days After Delivery
