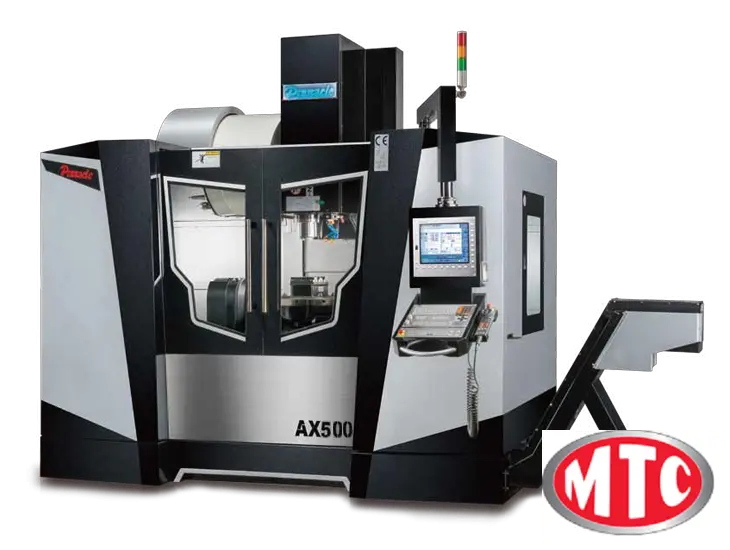

Pinnacle AX500 CNC Machining Center, Heidehain TNC 640 control
CNC Machining Centers
High-Tech Expertise in 5-axis Machining
3 Linear Axes X/Y/Z plus rotary and tilting axes A/C offers solutions to your 5-axis or multiple faces machining jobs.
Air Blast through Spindle, Air Blast for Work Piece (Nose), Coolant Flushing System, 3 Axes Telescopic Covers, Full Splash Guard, Automatic Lubrication System, Working Lamp, Arm Type 30-Tool ATC, Z Axis Pneumatic Balance System, Cooling System, Air Gun/Water Gun, MPG Hand Wheel, Heat Exchanger, Rigid Tapping, Spindle Oil Cooler, Adjusting Tools and Box, Operation and Programming Manual, Chain Type Chip Conveyor.
Coolant through spindle
Heidenhain Touch Probe TT460, receiver SE660 & Calibration ball KKH100
tool length Measurement
26 month Heidenhain Warranty
14 month Machine warranty
Heidenhain TNC 640 Smart + Control and drive package, Oil cooled ball screws, FULL 5 Axis simultaneous operation, Coolant system, Flushing system, Full splash guard with roof,
Coolant through the Spindle
Oil cooled Ball screws
Linear scale feedback
chip conveyor
19" Color LCD screen
Heidenhain Touch probe TT460, Receiver SE660 & Calibration ball KKH100
oil skimmer#0 tool cat 40 ATC
26 month Heidenhain warranty
14 month Machine warranty
| X | 29.9" |
| Y | 24" |
| Z | 22" |
| Power | 23 hp |
| RPM | 10,000 RPM |
| # ATC | 30 |
| Taper | Cat #40 |
| Table-W | 20" |
| Table-L | 20" |
| # Axis | 5 |
| Control | CNC (Heidenhain TNC 640) |
| Dimensions | 10'2" x 10'3" x 10' 8" high |
| Weight | 16,000 lbs. |
Table size: 500 mm/ 19.68"
Travel Ranges (X/Y/Z): 760 x 610 x 560 mm
Max. Table Load: 770 lbs.
Max work piece Size: 23.6" x 12"
Diameter of Table Hole: 1.96 in
Spindle nose to nose table surface: 1.38"-23.4"
"A" Axis Tilt: 220 Degrees
"C" Axis Rotary: 360 Degrees
Spindle speed (direct drive): 12,000 RPM
Main motor: 23 HP
Rapid Feed Rate X: 1200 IPM
ATC Type: Disk (chain), 24 Std. 30 Optional
Tool Storage Capacity: random
Machine weight: 16,000 lbs.
Optional Accessories on this machine
Arm-30T $7,695.00
COOLANT THROUGH SPINDLE + 20 BAR PUMP SUB TANK
TOUCH PROBE TT460 + RECEIVER SE660 + CALIBRATION BALL KKH100
$ 9,950.00
Tool Length/Diameter Measurement System (Heidenhain TT460) $ 2,950.00
HEIDENHAIN LINEAR SCALES FOR X/Y/Z AXIS $ 9,995.00
Total Of optional accessories = $51,590.00
Base machine price as advertised $ 391,194.00
Total List price package = $ 442,784.00
Less base machine discount - $ 100,000.00
sub total= $ 342,784.00
less optional accessory package discount of - $ 27,000.00
TOTAL PACKAGE Price delivered Set up $ 315,784.00
