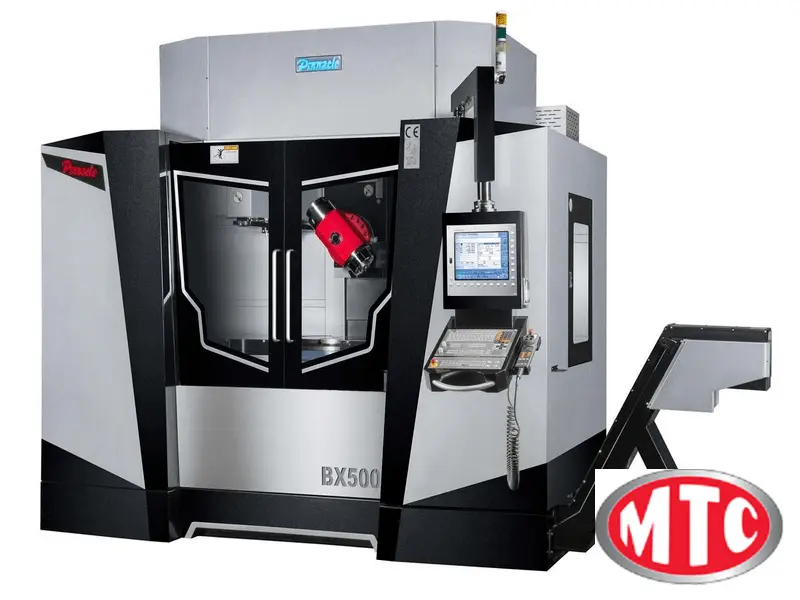

Pinnacle BX-500 CNC Machining Center
Vertical Machining Centers (5-Axis)High-Tech Expertise in 5-axis Machining
Pinnacle BX-500 Vertical Machining Center with Built in Rotary Table, and 5-Axis Machining, Simultaneous 5 Axis.
Fanuc or Heidenhain controls, Call for delivery.
X | 51" |
Y | 24" |
Z | 32" |
Power | 25 hp |
RPM | 15,000 RPM |
# ATC | 30 |
Taper | HSK or |
Table-W | 57" |
Table-L | 24" |
# Axis | 5 |
Control | CNC (Fanuc) |
Table Size: 57" x 24"
Travel Range (X) & (Y): 51" X 24"
Travel Range (Z): 32"
Max. Table Load: 1,874 lbs
Spindle Nose to Table Surface: 3.89" - 35.8"
T Slot (width x number x distance: .7" X 4.92"X .19"
Built-In Spindle:
Spindle Taper: DIN40 (HSKA63)
Bearing Inner Diameter: 2.75"
Draw Bar Force Ft/lbs: 5,786 - 723.3
Main motor (30 min.): 20/24 Hp.
Motor Type: INDRAMAT IMB 160F~4B
