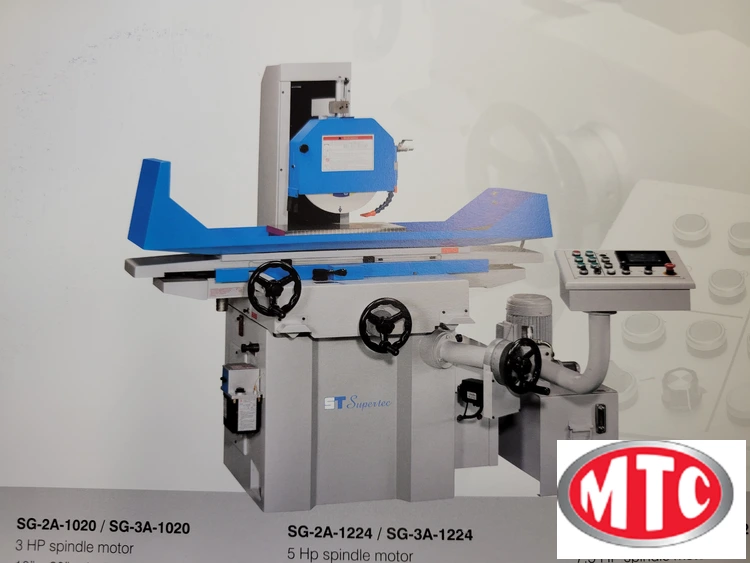

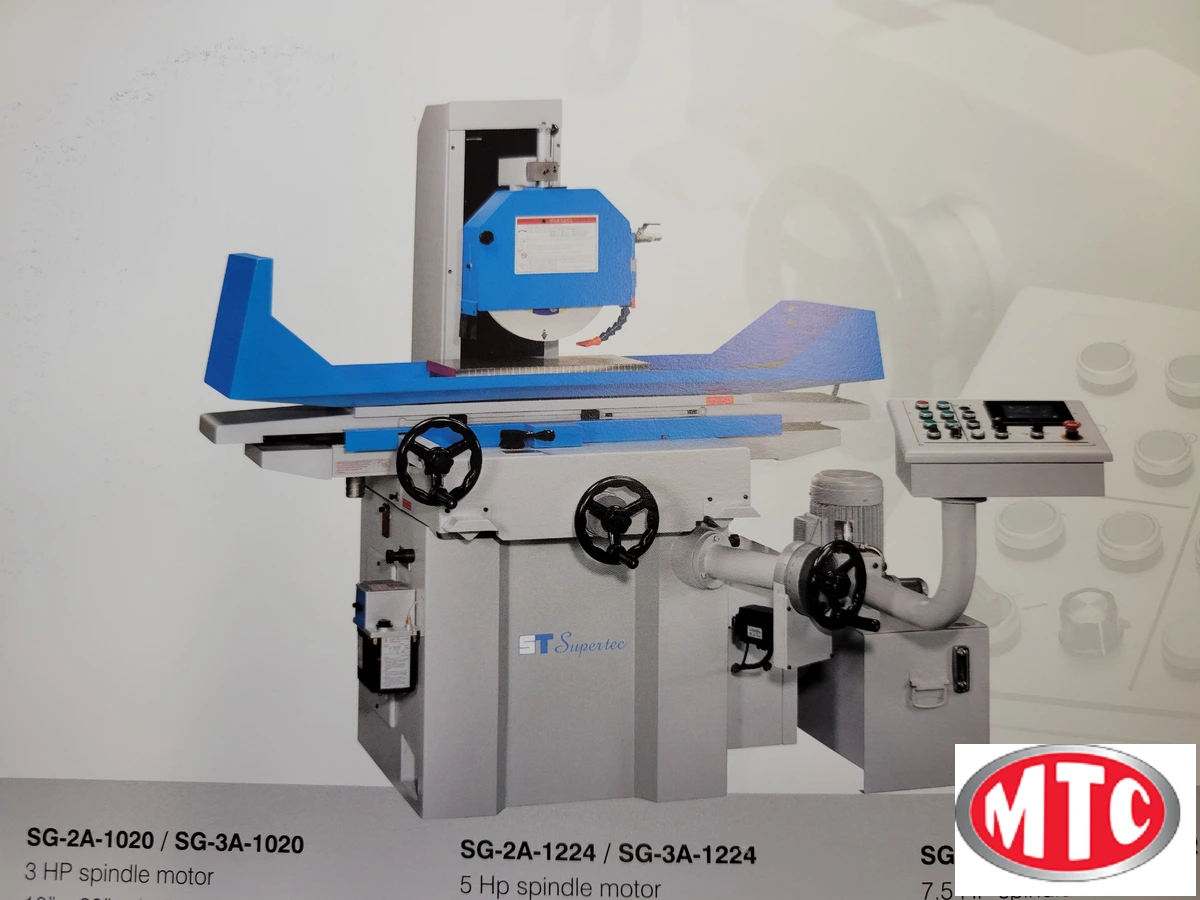

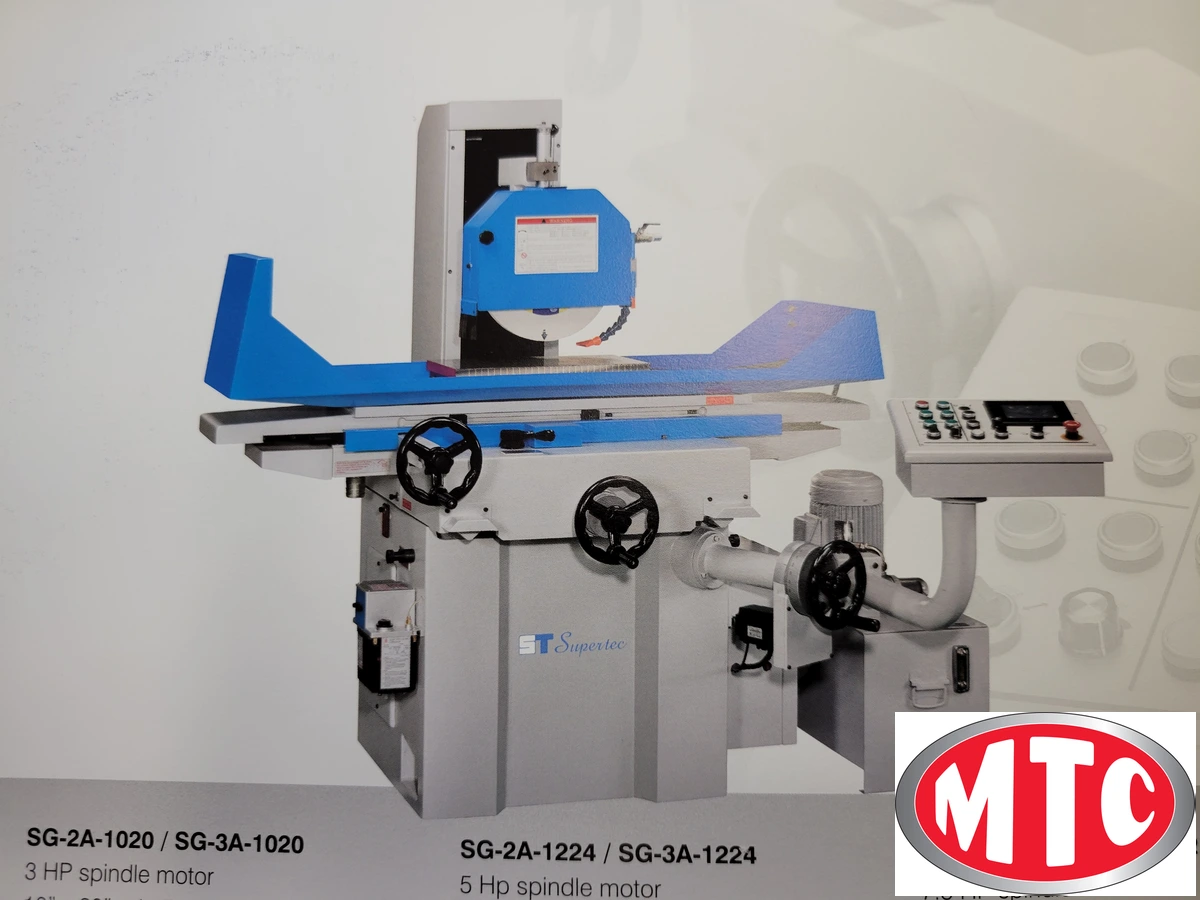

SUPERTEC SG-3A1224 Saddle Type Surface Grinder
Have one to sell?
ConditionNew
New
Double "V" ways on longitudinal & cross axes. 3 Axis Automatic (3Axis w/conversational PLC control), 5 HP spindle motor (SG-1224), Auto Down feed (Driven by AC Servo motor), Auto Lube System, Extra low noise & low temperature rises, Annealed twice casting for greater machine stability, Low-friction coated surfaces-Sideways are hand scrapped & turcite-B coated, Spindle run-out 0.0001" TIR.
OPTIONAL ACCESSORIES
Electromagnetic Chuck (12" x 24"): $2,340.00
Auto demagnetization for electric chuck: $960.00
GD fine pole electromagnetic chuck (12" x 24"): $3,750.00
GD chuck control: $960.00
O.S. Walker LBP (Fine pole, 12" x 24") chuck: $5,360.00
O.S. Walker Chuck control: $1,180.00
Cross micro-feed: $1,740.00
Vertical micro-feed: $1,740.00
Spare wheel flange: $670.00
Parallel dressing attachment (manual): $960.00
Spindle Motor-variable speed (Inverter) 5 HP: $2,620.00
Coolant System (140L) : $1,280.00
Coolant System with paper filter (60/min, 140L): $2,670.00
Coolant System with mag. separator (60/min, 140L): $2,390.00
Coolant system with mag. separator & paper filter (100L): $3,650.00
Grinding wheel w/flange: 14" x 1" x 5", Balance arbor, Table mounted diamond dresser, Tool box w/tools & leveling screws.
Mx. cross x longitudinal travels: 13" x 28"
Spindle center height from table: 19.2"
Grinding surface of table: 12" x 24"
Hydraulic table speed (60HZ0: 40-1000 in/min
Hydraulic motor: 0.75kW/1HP
Intermittent cross feed (Electro-mechanical) approx: 0.1-10mm/feed/0.1-0.4 in/feed
Continuous cross feed (electo-mechanical) approx: 1000mm/min/40in/min
1 revolution on cross handwheel: 4mm/0.1"
1 division on cross handwheel: 0.02mm/0.0005"
Rapid vert. traverse approx: 240mm/min/9.4"/min
1 revolution on vetical handwheel: 1mm/0.052"
1 division on vertical handwheel: 0.005mm/0.0001"
Wheel Dimension: 14" x 1" x 5"
Max. height from table top to bottom of wheel: 12.2"
Spindle Motor: 5HP
Spindle Speed 50/60HZ: 1500/1800RPM
Net Weight: 3,630lbs.
Gross Weight: 4,620lbs.
Dimensions: 91" x 61" x 77"
