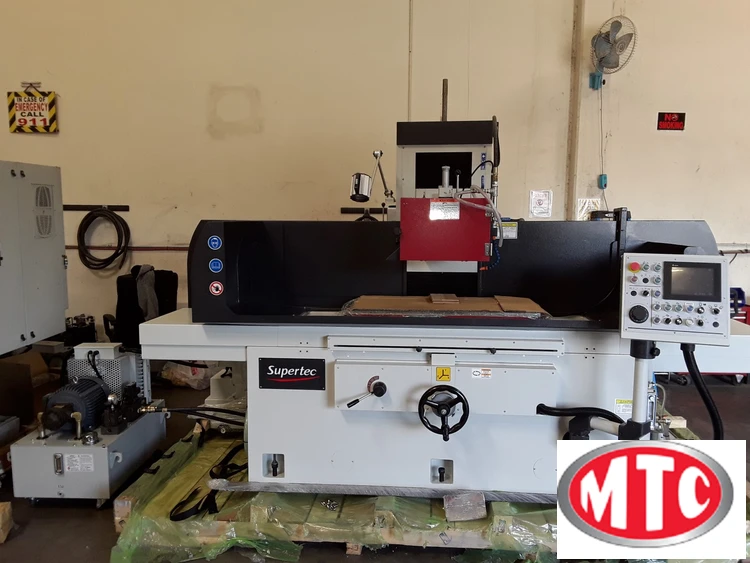

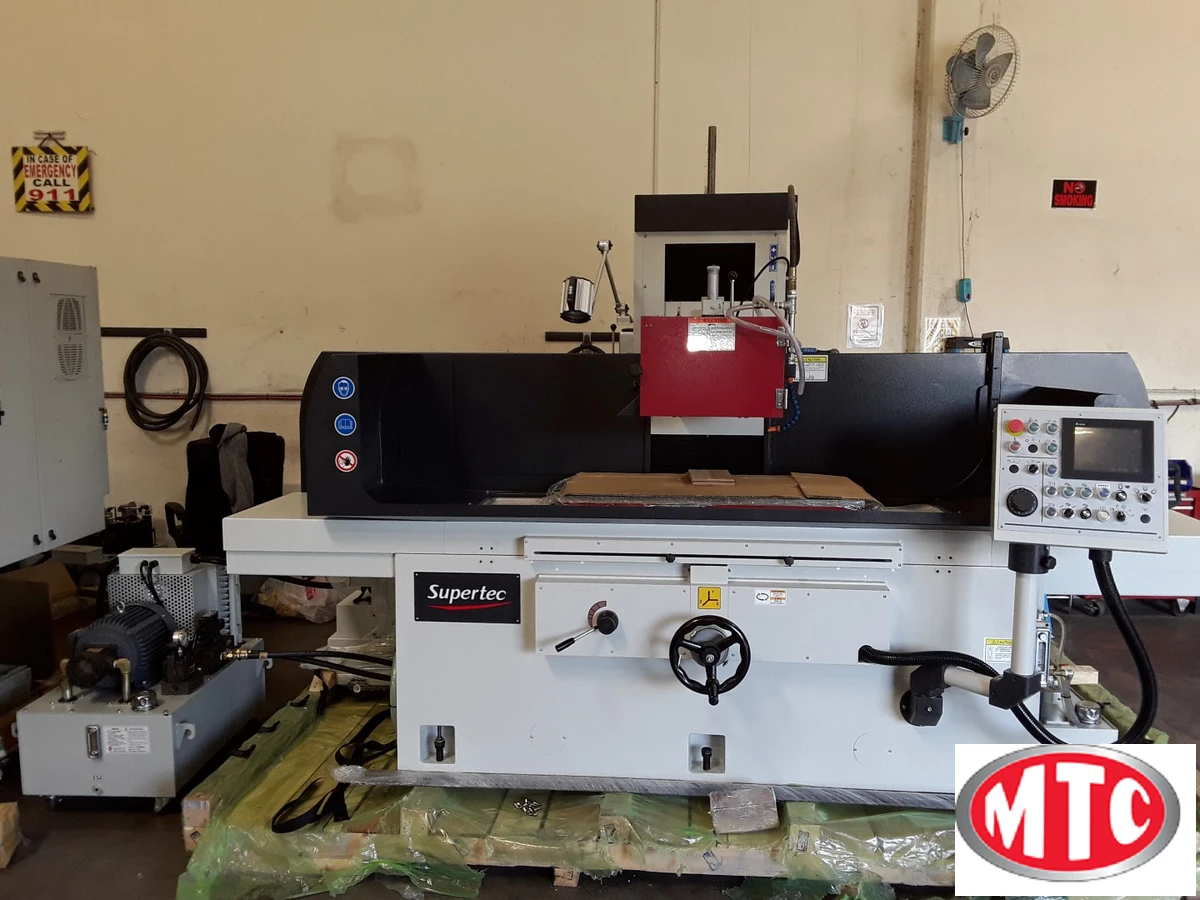

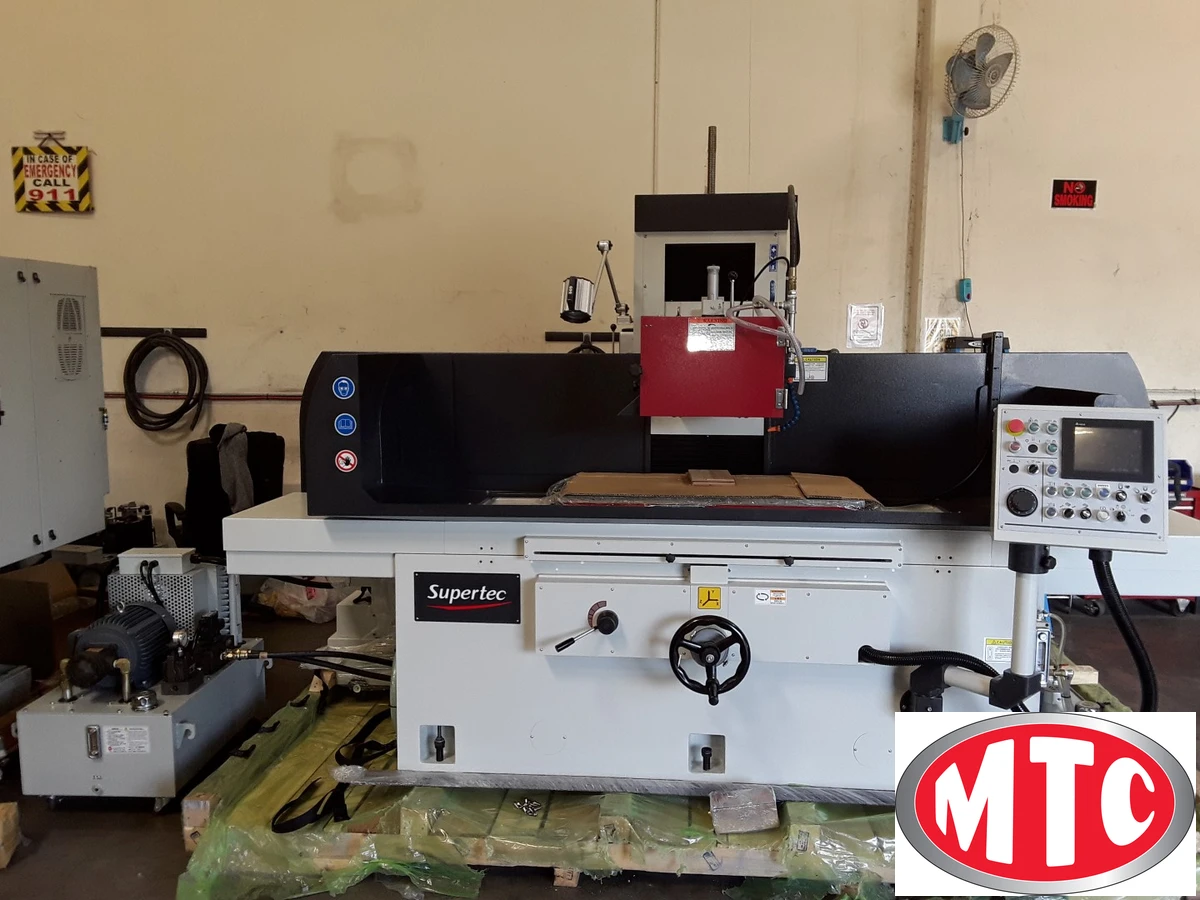

Suptec Planotec-2040NC Column Type Automatic Surface Grinder
Have one to sell?
ConditionNew
New
Cycle Interrupt Button on Control, Conversational Touch Screen Control, Harden Guide ways on Wheel head, Automatic Lube System, precision Cartridge Spindle, AC Servo Motor/Ball screw on Down feed, 0.000040" Down feed Increment, Hydraulic Sys. Separate
from Machine.
Diamond Dresser, Wheel Extractor, Front & Rear Splash Guard, Halogen Work Lamp, Balancing Arbor, machines Wired 220 Volts/3 Phase/60 Hertz.
GENERAL CAPACITY
Table Size 20 x 47"
Max. Grinding Length 49"
Max. Grinding Width 20"
Table Spindle Center Distance 24"
Standard Magnetic Chuck Size 20" x 40"
LONGITUDINAL MOVEMENT
Manual Travel 46"
Hydraulic Traverse 44"
Table Speed 10-82 fpm
CROSS MOVEMENT
Manual travel 25"
Rapid Traverse 2-3 fpm
Auto Increment feeds 0.08"-0.4"
Hand-wheel per graduation 0.0008"
Hand-wheel per revolution 0.2"
VERTICAL DOWN-FEED
Rapid Traverse 39.4 in/min
Auto down-feed 0.0004"~0.002"
Hand-wheel per gradation 0.000040"/0.0004"/0.004"
Hand-wheel per revolution 0.004"/0.04"/0.4"
GRINDING WHEEL
Wheel size 16" x 2" x 5"
Spindle Speeds 1780 rpm
MOTOR
Spindle Motor 10 HP
Cross-feed motor 1/4 HP
Elevating motor 1 KW
Hydraulic Motor 5 HP
OPTIONAL ACCESSORIES
OP7-5001 Electromagnetic chuck $6,670.00
OPT-5002 Chuck control $620.00
OG3-2004 Coolant system w/paper filter $2,670.00
TOTAL FOR CHUCK, CONTROL AND COOLANT = $ 9,960.00
Special price when purchased together with machine = $ 6,125.00
Savings of $ 3,835.00
Mist collector above machine, Mounting extra $ 3,000.00
Misc. 3 days on site set/up training by Supertec (US/MEX/CAN) $ 6,000.00
2 Axis Digital Readouts, 1 micron, magnetic, lifetime warranty $ 2,650.00
Approx. freight from CA. to $ 2,500.00
Total for machine and options above $ 99,465.00
Additionally available:440 volt conversion
