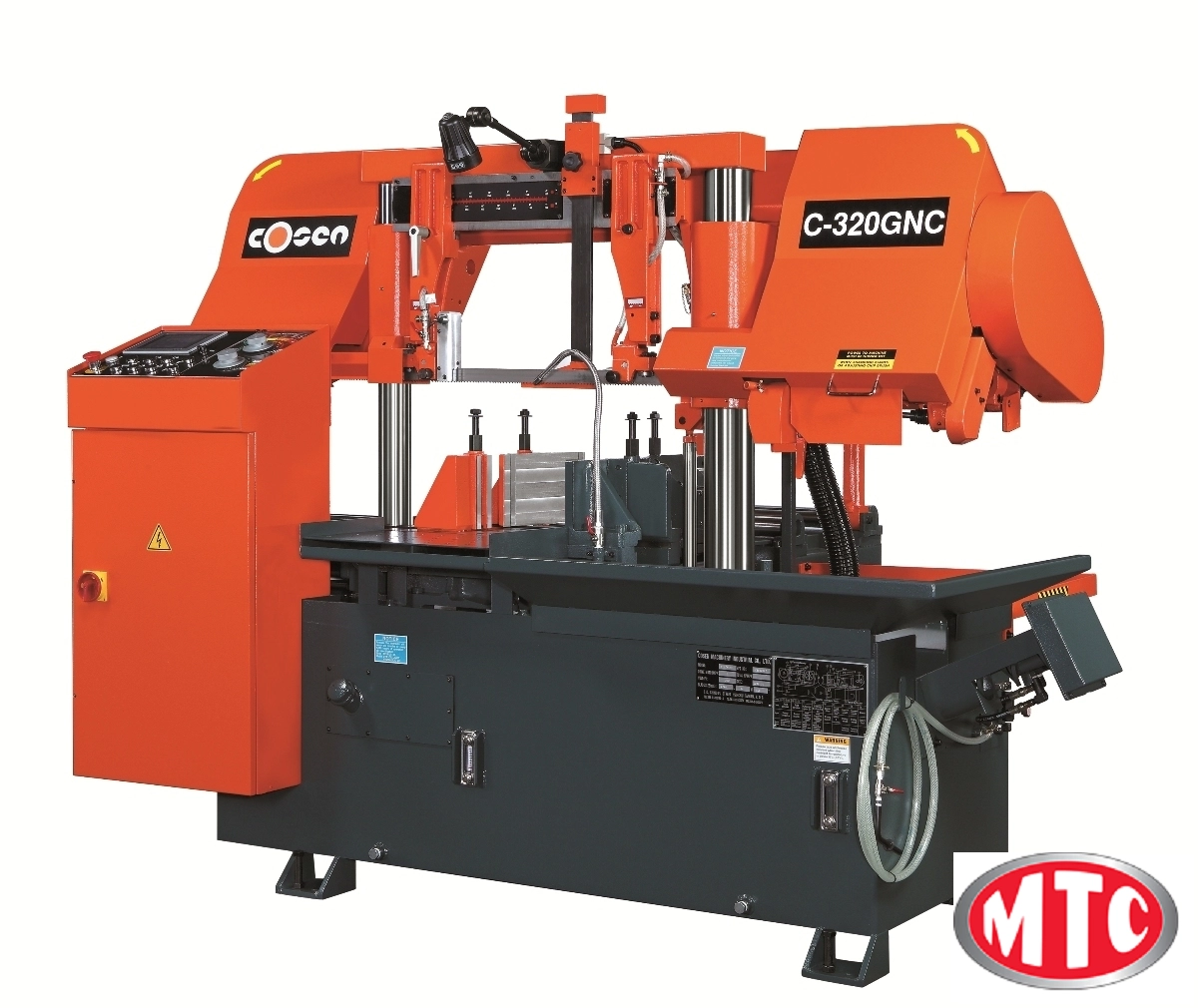

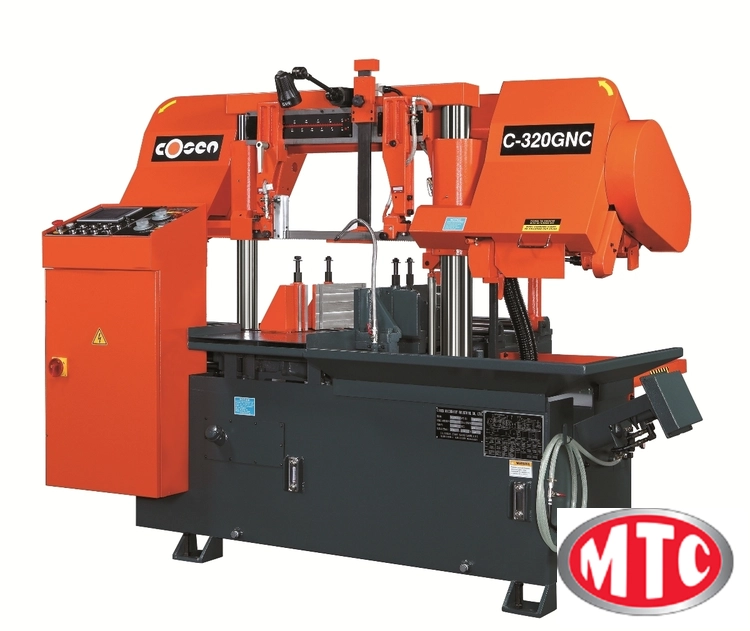

Dual Column Programmable Bandsaw
Have one to sell?
ConditionNew
New
Fully automatic, Dual Column Programmable bandsaw, 12.6 X 15'"Capacity, New Full Warranty,
Blade “clip” device eases blade changing when necessary by holding the blade on the band
wheel during installation, making it very easy for one person to change the blade.
Adjustable fence to support bundled cut-off stock
Additional flushing hose for cleaning
Built in work light
Bi-metal saw blade
Tool Box with tools, leveling pads, and an additional wire brush
Operation & parts manual
Full Stroke Vises
Double Retracting Vises
Hydraulic Powered Chip Auger
Heavy-Duty 7’ Idle conveyors w/ vertical alignment rollers
Machine Specifications:
Maximum Cutting Capacity Round 12.6”
Square 12.6” x 12.6”
Rectangular 12.6” x 15”
Bundle Width: 7.5” - 11.8”
w/ optional top clamps Height: 2.8” - 5.5”
Remnant Piece 2”
Blade Variable Speed 66 – 328 fpm
Size 13’ 11” x 1.25” x .042”
Motor Saw Blade 5 HP
Hydraulic 1 HP
Coolant 1/8 HP
Auto. Material Feed System Job Storage Up to 100 jobs
Single Index Stroke 0” to 15.9”
Multiple Stroke Indexing 0” to 999”
(Automatic kerf compensation)
Weight 3,758 LBS
Power 230V, 3 PH, 60 Hz
(460, 3 PH, 60 Hz Option)
Floor Space 82.7” x 82.8” x 70.1”
Work Bed Height 31.1”
*Please note that machine design and specs can change without notice Max. AMP Draw - 230v: 18.01
460v: 9.01
