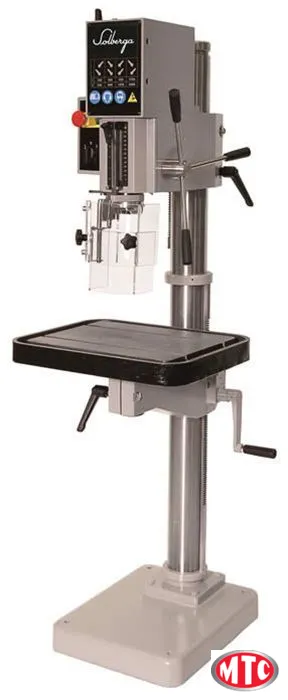

Solberga/Willis geared head Drill press

• Direct gear drive with fiber to steel mesh helical drive gears providing smooth, quiet operations
• Quick spindle speed change through gear levers and pole changing switch
• Drill head and table arm can rotate 360 degrees around the column
• Drill head and table arm are raised and lowered by hand crank
• Electrical system includes forward/reverse switch, emergency stop switch, and thermal overload. Also includes a no volt release function.
• Built in tool ejector for rapid tool change
o Drills to center of the circle 20”
o Drilling capacity in mild steel 1”
o Drilling depth 5”
o Max. distance spindle - table 33”
o Spindle taper 3MT
o Spindle speeds (8) 130 – 3,480
o Optional power feed rates, IPR 0.004, 0.006, 0.012
o Column diameter 4”
o Table size 14” x 20”
o Vertical travel of drill head 8”
o Vertical travel of table 21”
o HP (low speed / high speed) 1.5
o Net weight 400

FOB Toledo, OH, USA
Delivery stock, subject to prior sale and voltage requirements
Terms Subject to credit review
Validity 30 days, subject to our final confirmation

SE2025 Standard floor model drilling machine, manual feed $ 4,900
SE2025PW Standard floor model drilling machine, power feed 7,050
