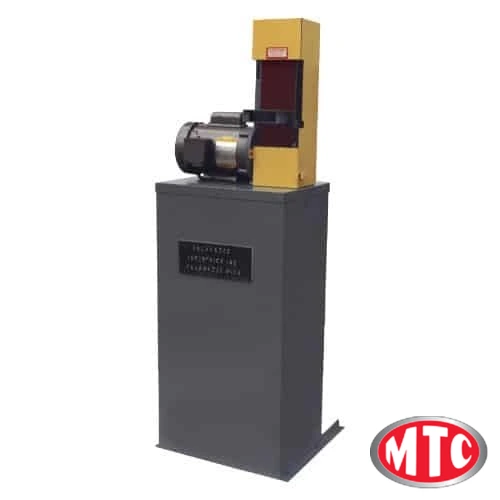

Kalamazoo S4SV 4" Wide Belt Sander with Vacuum base
Have one to sell?
ConditionNew
New
S4SV 4 x 36 inch belt sander with vacuum collector is an excellent sander and vacuum that will sand different materials and save you time. The built-in vacuum in the bottom will collect the debris while helping to keep the machine clean.
Vacuum base, 1 Phase motors, Ships UPS in two boxes, 5" x 2.5" Work table, Manual and warranty
MACHINE SPECIFICATIONS
• 1/2 HP 1 phase 115V 3450 RPM motor.
• Single phase amp draw115V 7 amps.
• Vacuum Single phase amp draw 115V 8.2 amps.
• 4″ x 36″ belt (accommodates any 4” x 36” belt type).
• Cast iron frame that you can put in two positions
• One piece cast iron frame and platen.
• Platen work area: 5.5″ H x 4.25″ D
• Adjustable and removable steel work table: 5″ W x 2.5″ D. Work table is adjustable up 20 degrees and 45 degrees down.
• Spring belt tracking.
• Spring sanding belt tension
• Quick and simple part replacement.
• Steel base with a built-in dust collector.
• Machine shipping dimensions: L 12” X W 19” X H 21”.
• Vacuum shipping dimensions: L 20” x W 20” X H 37”.
• Shipping weight: 115 lbs. This machine ships in two separate boxes.
Other 4 X 36 INCH SANDER OPTIONS
• S4S 4 x 36 inch belt sander with full boxed guard. Click here to go to its web page.
• S4 4 x 36 inch belt sander with umbrella guard. Click here to go to its web page.
• S4S-1HP: 1HP 1PH 115V
THIS BELT SANDER IS DESIGNED FOR THE FOLLOWING APPLICATIONS
• Bevel
• Deburr
• Squaring up ends
• Round edges
• Clean rough surfaces
• Rust removal
• Polishing
MATERIAL THIS SANDER CAN SAND
• Wood
• Metal
• Aluminum
• Plastic
• PVC
• Brass
• Bronze
REPLACEMENT PARTS
S4SV 4 x 36 inch belt sander with dust collector replacement parts are in stock and will ship within a few business days.
