Chmer CNC Sinker EDM w/ Linear motor "Z", Glass Scales "X", "Y" & "Z"
Have one to sell?
ConditionNew
New

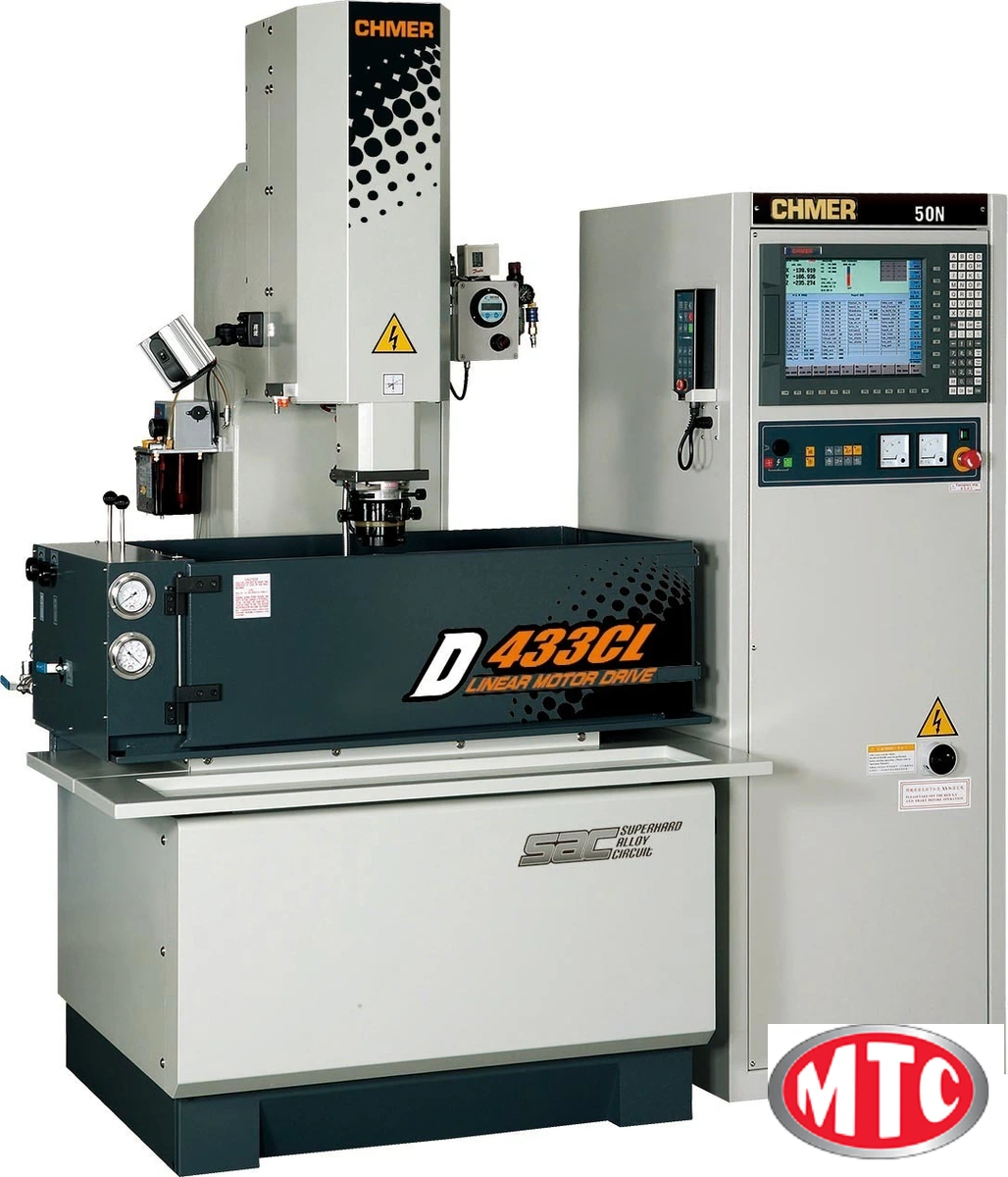

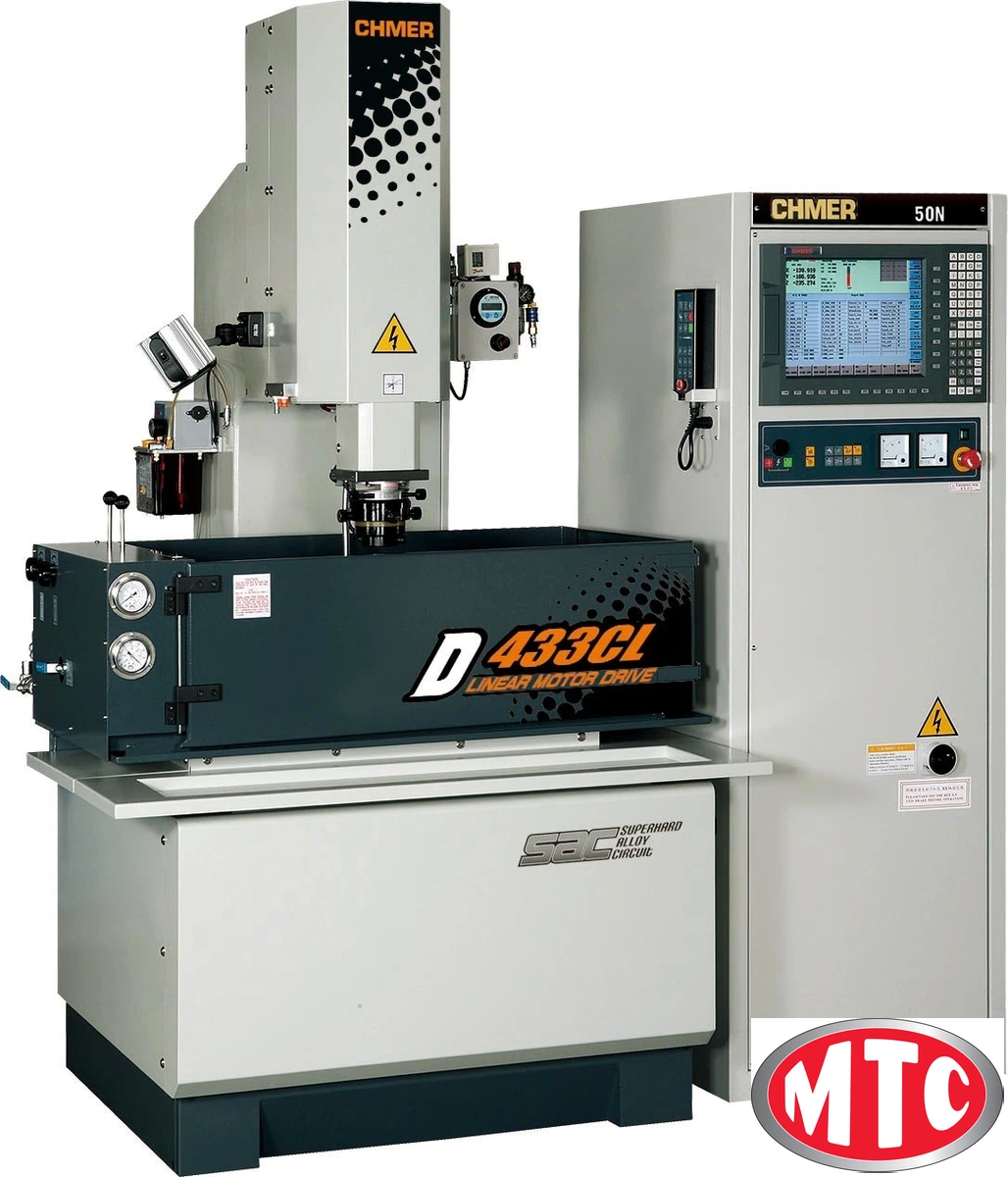

The CHMER D433CL is the product of decades of experience building EDM machine tools. It is a space-efficient three-piece design comprised of the machine tool, DI tank, and CNC control.
• Linear motor Z axis with glass scale feedback
• X, Y AC Servo Motor Drives, with closed loop glass scale feedback with .000020” resolution (.0005mm)
• Ultra-high precision ballscrews and LM guides (ways) on X and Y
• Remote control
• Flushing manifold with pressure and suction flush valves
• Auto lube system
• Halogen Work light
including Linear motor Z, Glass Scales X, Y, Z,
installation, on-site training, two years part, one year labor, and five –year Linear Motor drive Warranty
System 3R C-Axis, System 3R, 4-position 4-position tool shuttle changer, System 3r Auto macro chuck, Halogen fire suppressor,
Specifications
CHMER D433CL + 75N
Machine Tool
Travels X: 15.7” (400mm)
Y: 11.8” (300mm)
Z: 11.8” (300mm)
Distance from table to platen 9.8" - 21.7” (250–550mm)
Work tank size 39.4” x 24.3” x 11.8” (1000 x 610 x 300mm)
(This can be modified to increase depth)
Worktable size 25.5” x 15.7” (650 x 400mm)
Maximum workpiece weight 770 lbs. (350 kg)
Maximum electrode weight 66 lbs. (30 kg)
Drive system Linear motor on Z axis.
AC Servo Motor with Glass scales on X & Y axes
Minimum resolution .000020” (.0005mm)
Maximum machining speed w/50 amps 2.12 in3/hr with 75 amps
Outside dimensions: machine tool 50.4” x 64” x 87” high (1260 x 1600 x 2175mm)
Weight 3,520 lbs. (1600 kg)
CNC Control
Best surface finish .25 μmRa
Maximum current output 75 amps (optional up to 300 amps)
Data input MDI, LAN port, and USB port
Display 15” color TFT.
Controllable axes 6 (4th ~6th axis must be purchased separately)
Cutting conditions 10,000
Input power w/50 amps 75 amps 6 kVA
Outside dimensions 24” x 33” x 73” (620 x 850 x 1860mm)
Weight 484 lbs. (220 kg)
Dielectric System
Capacity 103 Gallons (390 Liters)
Filters Paper 2
Fluid temperature control Chiller, automatic (optional)
Weight empty 176 lbs. (80kg)
Outside dimensions 55.1” x 31.4” x 16.9” (1400 x 800 x 430mm)
