4” TOSHIBA SHIBAURA MODEL BT-10B (P2) TABLE TYPE HORIZONTAL BORING MILL

Have one to sell?

847-290-0167

sales@myerstc.com

ConditionUsed

Quantity

1 available

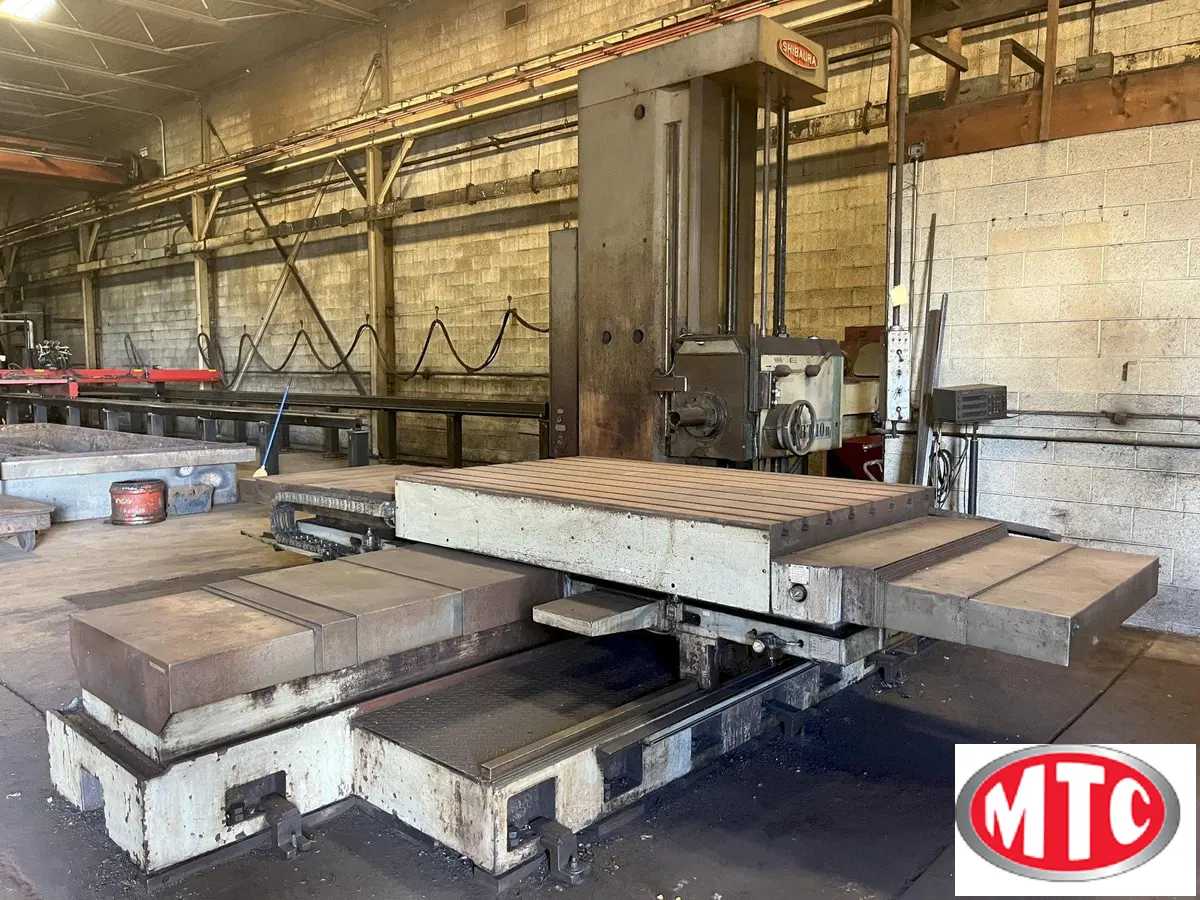

1979 TOSHIBA SHIBAURA BT-10B Horizontal Boring Mills (Table Type) | Myers Technology Co., LLC (1)

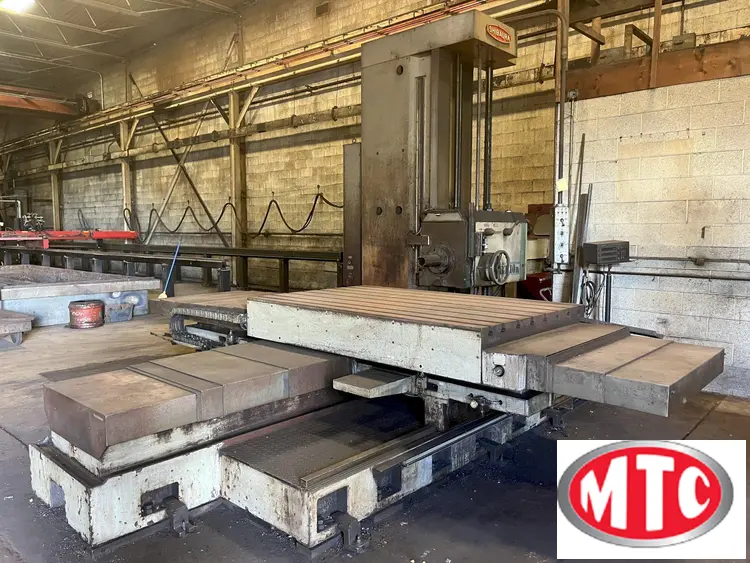

1979 TOSHIBA SHIBAURA BT-10B Horizontal Boring Mills (Table Type) | Myers Technology Co., LLC (2)

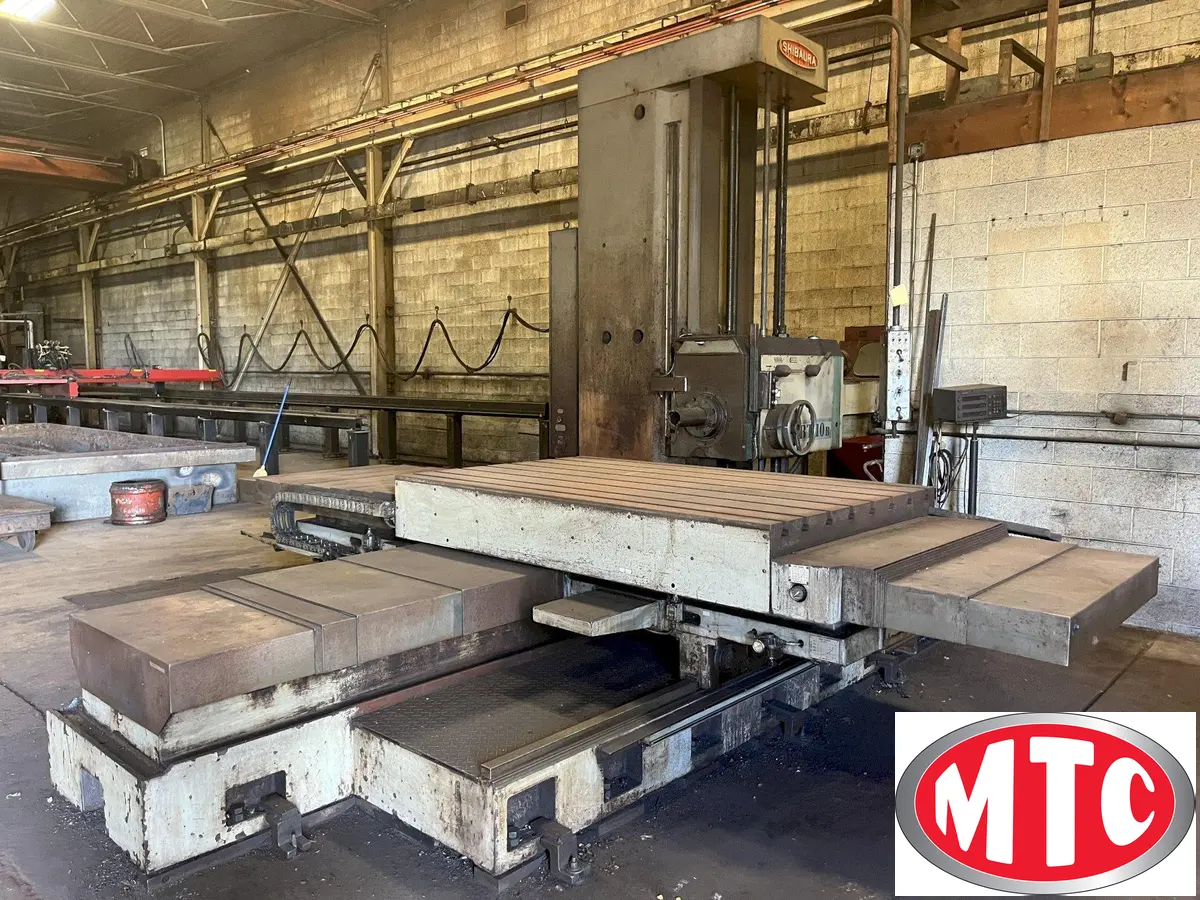

1979 TOSHIBA SHIBAURA BT-10B Horizontal Boring Mills (Table Type) | Myers Technology Co., LLC (3)

1979 TOSHIBA SHIBAURA BT-10B Horizontal Boring Mills (Table Type) | Myers Technology Co., LLC (4)

1979 TOSHIBA SHIBAURA BT-10B Horizontal Boring Mills (Table Type) | Myers Technology Co., LLC (5)

1979 TOSHIBA SHIBAURA BT-10B Horizontal Boring Mills (Table Type) | Myers Technology Co., LLC (6)

1979 TOSHIBA SHIBAURA BT-10B Horizontal Boring Mills (Table Type) | Myers Technology Co., LLC

Have one to sell?

Overview

Type:

Horizontal Boring Mills (Table Type)

Manufacturer:

TOSHIBA SHIBAURA

Model:

BT-10B

Condition:

Good

Year:

1979

Stock #:

8342

Status:

For Sale

Serial #:

113636

Specifications

ImperialMetric

Spindle Size	4"	101.6 mm
X-Horiz Tvl of Table	59"	1,498.6 mm
Y-Vert Tvl of Head	59"	1,498.6 mm
Power	15 hp	11.2 kW
RPM	1,000 RPM	1,000 RPM
Table-W	44"	1,117.6 mm
Table-L	48"	1,219.2 mm
Spindle Tvl.	20"	508 mm

SPINDLE ............. 3.94"
TAPER ............... #50
SPINDLE TRAVEL ...... 28"
SPINDLE SPEEDS ...... (16) 10 TO 1,000 RPM
SPINDLE FEEDS ....... (24) .0009 TO .67 IPR

RAPID TRAVERSE ...... 126 IPM
TABLE ............... 49.2" X 78.8"
TABLE LOAD .......... 17,640 LBS
VERTICAL ............ 59.1"
TABLE CROSS TRAVEL .. 70.9"
TABLE LONGITUDINAL .. 63"

DIGITAL READOUTS .... SONY 3-AXIS
MOTOR ............... 15 HP (11 KW)

4” TOSHIBA SHIBAURA MODEL BT-10B (P2) TABLE TYPE HORIZONTAL BORING MILL
