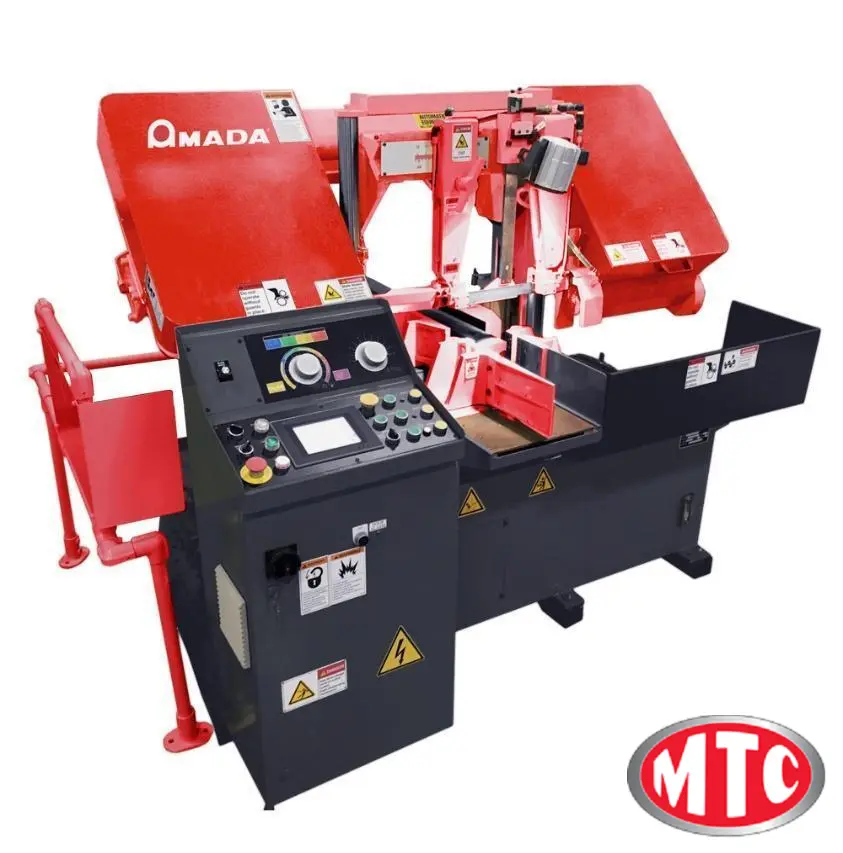

Amada/Marvel Spartan, HFA-260P/ PA-260MPC Horizontal Post style Automatic programmable bandsaw

Capacity Rectangle Round
Blade at 90o 12” Wide x 10.25” High (310 x 260 mm) 10.25” (260 mm)
Blade 1.25” L x .042” W x 12’11” H (34 x .042 x 3920 mm)
Blade Tension Hydraulically controlled tension (30,000 psi) provides consistent square cutting accuracy. The motion
detector will shut the machine off should the blade break or stall.
Speed Range 65 – 330 feet per minute (20 – 100 meters per minute) infinitely variable through a frequency inverter
drive and heavy-duty worm gear transmission. The broad speed range allows for optimum cutting of a
large spectrum of materials. A read out at the operator’s touch screen assures accurate speed setting.
Hydraulic Shuttle Feed Length settings of 0 - 16” (0 – 406 mm) are accomplished with simple programming at the operator’s
touch screen. The shuttle comes to positive stops at both ends of the index, assuring cutoff length
accuracy, reducing material loss. Repeatability is + .005 per index.
Hydraulic Down Feed
Feed rate and down pressure can be controlled independently for fast, accurate cutting. Setup is made
easy through the color-coded dial allowing the operator to select the optimum setting for the type of
material being cut. Both settings are made at the operator’s station.
Motors 5 H.P. (3.75 kW) Inverter Drive. Hydraulic Pump Motor: 1 H.P. (.75 kW) (23 gal). Coolant Pump Motor:
1/8 H.P. (0.09 kW) (22 gal). All motors are 230-volts, 3 ph. 60 Hz.
Operator’s Control Panel Mounted on the left-hand side of the machine. It offers full control of the all the features of the machine
such as vising, saw frame, Bundle Clamping, Touch Screen, Shuttle Advance & Retract, Coolant, Work
Light and more.
MPC Programmable
Control
Conveniently located on the operator’s control panel, this touch screen control allows the operator to
program and store up to 100 jobs. Inputs include Part Length from 0 to 999” (25 m) (in inches up to 3
decimal places) and Number of Pieces to be cut. The Automatic Piece Counter stops each job when the
pre-set number of cuts have been made. The control provides the option of running up to 20 parts in
one job consecutively.
Out-of-Stock Switch The machine will shut off automatically when material is no longer present in the rear vise jaws, allowing
for truly automatic operation.
Blade Guides The hydraulic clamping and combination roller bearing, and carbide blade guides reduce heat and blade
stress providing longer blade life and accuracies of + .002 per inch (.051 mm) of cut material. Large antivibration
rollers help to increase blade life.
Fast Approach Work height is automatically set allowing the head to raise just enough to clear the work piece while
reducing cycle time and improving cutting performance.
Chip Brush Powered from the main drive shaft of the saw, the brush changes speed along with the blade to assure
that chips are being removed from each gullet of the blade, improving cutting performance and blade
life.
Work Light Positioned directly over the work area to provide better illumination of the cutting area, the work light
can be turned on and off independently from the operator’s control panel.
Vice Jaws Hydraulic Full Stroking. Front jaws are split to reduce the remnant to as little as 2.75” (70 mm). The split
vise jaws also help to reduce burrs left on the material and are ideal for bundle cutting. Holding the work
piece on both sides of the blade reduces blade vibration, providing more accurate cuts and longer blade
life. Rear Vise: The rear vise jaw floats hydraulically to accommodate crooked stock assuring straight,
accurate cuts.
HFA260P Page | 3
Automatic Chip Removal The chip auger rotating in the coolant return removes chips quickly and efficiently, freeing the operator
to perform more productive operations. Coolant is allowed to drain back to the tank before the chips
are removed from the machine.
Variable Vise Pressure Hydraulic clamping pressure to the work holding jaws can be adjusted as required to hold solid or thin
wall material, allowing the piece to be held securely and without distortion.
Machine Weight 3,860 lbs. (1751 kg)
Table Height
27” (686 mm)
OPTION DESCRIPTIONS
Product Short Description Product Description
HFA260P Horizontal Post Style Saw HEAVY-DUTY, DOUBLE COLUMN, HIGH SPEED, HYDRAULIC, HORIZONTAL, METAL CUTTING
BANDSAW WITH 5 H.P. 1-1/4” BLADE AND AMADA MACHINERY PROGRAMMABLE CONTROL
Blade Amada SGLB Amada SGLB blade 12' 11" long x 1.25" wide, 4/6 tooth pitch. This is the standard blade that
is included with machine purchase, and you have the option to order more.
PA10SG1 Hydraulic Hold Downs The nesting fixtures for vertical clamping are designed for high-production multiple cutting.
Vertically mounted hydraulic clamps located on each vise jaw apply downward pressure to
hold multiple bar work or structural shapes. Minimum Capacity (H X W): 1-1/4” x 6” (31.75
mm x 152 mm). Maximum Capacity (H X W): 5” x 8” (127 mm x 203 mm).
FSCC Free Standing Control
Console
Replaces standard control console mounted to machine base with a free-standing pedestal
and 6’ flexible electrical and hydraulic lines.
PA10F055 First Section 5’ Roller Table 5’ (1.5 m) long. Table is constructed from 4” (102 mm) x 5.4 lbs. (2.5 kg) Channel with five
2.5” (63 mm) diameter ball bearing rollers on 12” (305mm) centers. This is the first table
required for either the loading or discharge side of the machine (free standing)
PA10/X055 Extension 5’ Roller Table 5’ (1.5 m) long. Table is constructed from 4” (102 mm) x 5.4 lbs. (2.5 kg) Channel with five
2.5” (63 mm) diameter ball bearing rollers on 12” (305 mm) centers. For use as extension to
first section.
PA10/E11 Coolant Pan Fitting the F055 and/or X055 roller conveyors, the coolant pan collects and returns coolant
back to machine. Included is the pan, V-trough, and hangers.
VOLTAGE
Machine comes standard with a 230 volt – 3 phase – 60 hertz connection (230-3-60).
All other voltages require a separate transformer not included.
