Mighty Viper CNC, 4.5" Bar cap. Box Way, Geared head Fanuc control
CNC Lathes

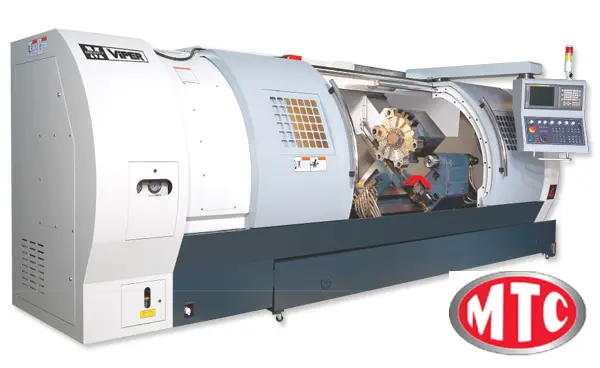

Mighty Viper, model VT-33BL, Heavy Duty BOX WAY, GEARED HEAD, Slant bed Lathe, with Fanuc Oi-T control, 15" Chuck, 5.1 Spindle bore, programmable tow along tailstock, Programmable Quill, CNC lathe
♦ Fanuc 0i-T
♦ 10.4" Color LCD
♦ Fanuc Manual Guide i
♦ 12-Station Static Block Tool Turret
♦ Chip Conveyor
♦ 15" 3-Jaw Hydraulic Chuck
♦ Hard Jaws (1 set)
♦ Soft Jaws (1 set)
♦ Splash Guarding
♦ Foot Switch for Chuck Clamp
♦ Work Light
♦ Coolant System
♦ Centralized Automatic Lubrication System
♦ Heat Exchanger in Electrical Cabinet
♦ Front Door Safety Lock
♦ Programmable Tow-Along Tailstock
♦ Programmable Quill
♦ RS-232 Interface
♦ PCMCIA Memory Card Slot
♦ USB Port
♦ Operation Manuals and Electrical Diagrams
♦ Leveling Blocks and Bolts
♦ Hand Tools
STANDARD TOOLING LIST
FOR STATIC BLOCK TOOL TURRET
♦ OD Cutter Mounting Block (33-85213) 12
♦ OD Cutter Mounting Wedge (33-85216) 12
♦ Coolant Nozzle Block for OD Cutter (33-85221) 12
♦ Tool Holder (□1") (33-85403) 2
♦ Spacer for Tool Holder (33-85215) 2
♦ Boring Bar Holder (Ø2") (33-85503) 1
♦ Boring Bar Holder (Ø1½") (33-85508) 4
♦ Sleeve for Boring Bar (Ø1¼") (33-85465) 2
♦ Sleeve for Boring Bar (Ø1") (33-85466) 2
♦ Sleeve for Boring Bar (ؾ") (33-85467) 2
♦ Sleeve for Boring Bar (Ø⅝") (33-85468) 2
♦ Sleeve for Boring Bar (ؽ") (33-85469) 2
♦ Sleeve for Boring Bar (Ø⅜") (33-85470) 2
♦ Drill Socket (I-4) (33-85450) 1
♦ Drill Socket (I-3) (33-85451) 1
♦ Spacer for Boring Bar Holder (33-85220) 12
| Swing | 26.8" |
| Machining Length | 40.2" |
| Chuck Size | 15" |
| Bar Capacity | 4.52" |
| Power | 50 hp |
| Max RPM | 2,400 RPM |
| Turning Dia | 24.8" |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |
| Control | CNC (Fanuc Oi-T) |
| Weight | 16,100Lbs. |
VT-33BL SPECIFICATIONS (IMPERIAL)
VT-33BL
CAPACITY Standard
Swing Over Z Way Cover 26.7"
Swing Over Cross Slide 18.9"
Maximum Turning Diameter 18.9"
Maximum Turning Length 40.2"
Distance Between Centers 40.2"
Slide Way Slant Angle 45°
TRAVELS
X Axis Travel 9.4" + 1.5"
Z Axis Travel 42.9"
MAIN SPINDLE
Chuck Size 15"
Spindle Nose A2-11
Spindle Bearing Inner Diameter Ø7.1"
Spindle Through Hole Diameter Ø5.1"
Bar Capacity Ø4.5"
Spindle Motor (30-min) 50 HP
Spindle Speed 2400 rpm
TURRET
Tool Stations 12
Turret Type Static
Indexing Time 0.9 sec 0.15 sec 0.9 sec 0.15 sec
Shank Height of Square Tool 1" - 1" -
Shank Diameter of Boring Bar 2" - 2" -
FEEDRATES
Rapid Feedrates (X/Z) 787 / 945 IPM
BALLSCREWS
Ballscrew Diameters (X/Z) Ø1.25" / Ø1.57"
TAILSTOCK
Tailstock Travel 40.9"
Quill Travel 3.9" -
Quill Diameter 4.3" -
Taper Hole of Quill MT-5 -
MISCELLANEOUS
Machine Weight 16,100 lb.
The values above are approximate conversions. For the exact figures, please see the original metric values on the next page.
