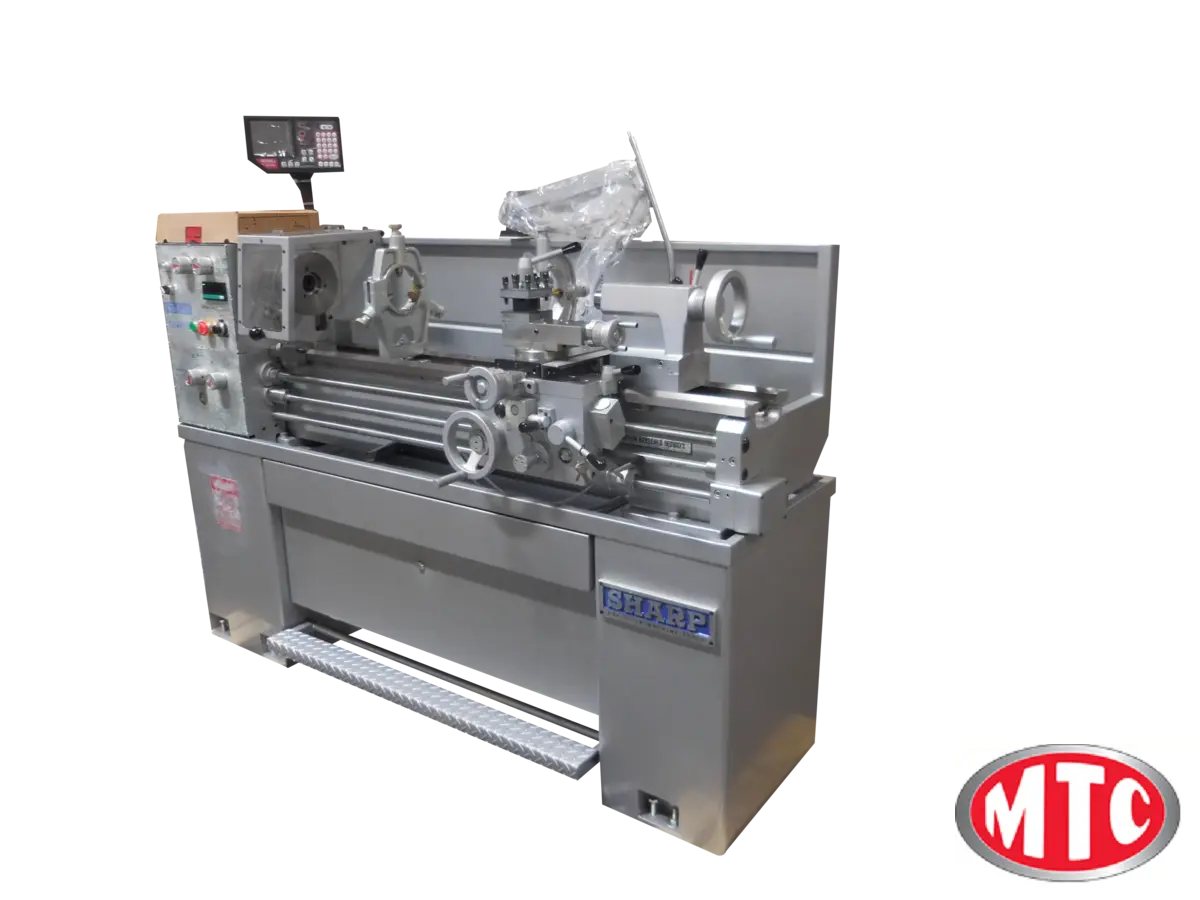

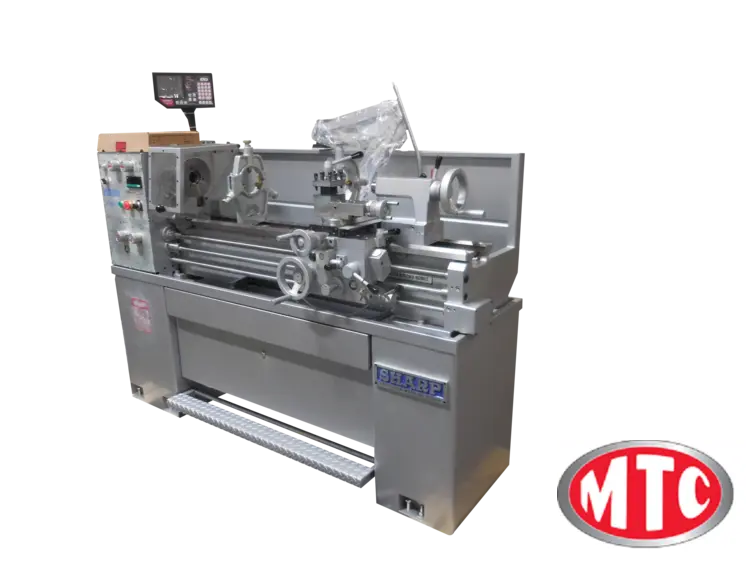

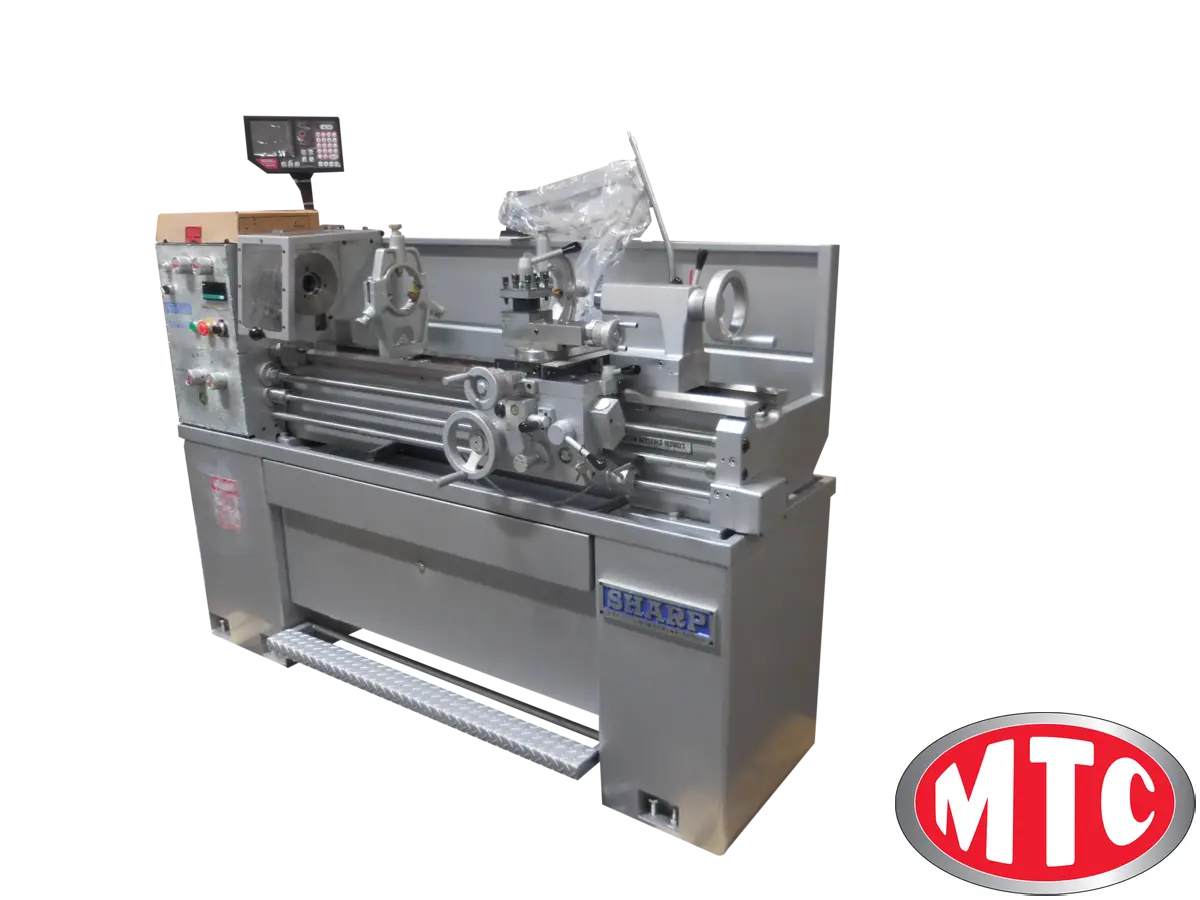

SPECIFICATIONS:
 Capacity
• Swing Over Bed 13”
• Swing Over Cross Slide 8-5/16”
• Swing Over Gap 18-1/2”
• Width Of Bed 7-1/2”
• Width of Gap 9.25”
• Distance Between Centers 40”
 Headstock
• Spindle Nose Type D1-4 camlock
• Spindle Bore 1-9/16”
• Spindle Speeds 40-2,000 RPM
• Taper of Spindle Bore MT#5
 Threads and Feeds
• Longitudinal Feeds – in/rev (40) 0.0016 - 0.046
• Cross Feeds – in / rev (40) 0.0005 –0.015”
• Inch Threads (40) 2-56 tpi
• Metric Threads (22) 0. 5 –12mm
• Leadscrew Pitch, Diameter 8 tpi, 7/8”
 Carriage
• Apron Width 11”
• Cross Slide Width 4.5”
• Cross Slide Travel 6-3/4”
• Compound Rest Travel 3-1/2”
 Bed
• Bed Length 64”
• Bed Width 7-1/2”
 Tailstock
• Quill Travel (graduated) 4”
• Quill Diameter 1-9/16”
• Quill Taper MT#3
 General
• Spindle Motor 3 hp
• Net Weight (approx.) 1,550 LBS
• Standard Color Gray
Specifications may be changed or improved without notice.

Electrical:
• Voltage 220
• Phase 3 phase
• (440 volts optional) transformer required for additional cost $720.00 NET

 Total Power Consumptions
• 220V 3KVA/10 amps
• 440V 3KVA/5 amps

OPTIONAL ACCESSORIES:

• 380V, 440V, 575V Transformer – 3HP 440T4 $ 895.00 NET
• 4 - Jaw Chuck 8” (QU) 4J8D4 $ 725.00
• 4 - Jaw Chuck 10" (QU) 4J10D4 $ 845.00
• 3 - Jaw Chuck 8” (Bison) 803-0834 $ 1,485.00
• 4 - Jaw Chuck 8” (Bison) 853-0834 $ 1,445.00
• Chuck Guard w/ Limit Switch 13-04 $ 420.00
• Chuck guard installation 13/14 CI net $ 125.00
• Follow Rest - for 1340VS ( capacity, 0.4” – 2.17”) 13V-07 $ 300.00
• Roller Jaws for steady rest, 3 pcs 13F-RJAW $ 345.00
• Taper Attachment - for 1340 ( factory installed) 13F-02 $ 2,565.00
• Quick Change Tool Holder Set (Aloris) - 7 Pcs/Holder BXA-2511-7150 $ 1,900.00 Live Center - MT#3 LC-MT3 $ 170.00
• Live Center with 7 Interchangeable Points CL-21-007 $ 535.00
• Drill Chuck & Arbor (JACOBS) 13/14-D/A $ 420.00
• Face Plate (12”) D1-4 Face-12-D4 $ 215.00
• 4-Way Carriage Stop - 13/14-05 $ 255.00
• Micrometer Carriage Stop - for 1340VS 13V-01 $ 255.00
• Halogen Work Light WL-24V70W $ 290.00

• UL rated electrical parts & motor in lieu of standard version ** 13/14-UL $ 1,075.00
• CSA rated electrical parts & motor in lieu of standard version ** 13/14 CSA $ 1,310.00
• Safety cover at end of spindle ** 13/14-G1 $ 75.00
• Tool guard include limited switch ** 13/14-G3 $ 565.00
• Lead screw cover ( accordion type) ** 13/14-G4 $ 1,135.00
• UL ( to meet state of California) or CSA Compliance Certificate for entire machine by a Los Angeles area UL licensed company. Good for California only. CSA is good for Canada. For outside California, please check with local UL licensed company for certification. Must order with 1. UL or CSA electrical components and motor (Item 13/14-UL,or 13/14-CSA). 2. Spindle safety cover (Item 13/14-G1). 3. Tool guard (Item # 13/14-G3) . 4. Lead screw cover (Item # 13/14-G4) 5. Chuck guard (13/14-08) in order to be certified. Net $ 4620.00
• CE Mark ( factory order) net $ 1340.00

5C Collet Set, 1/8” to 1” By 1/16” (16 Pcs) ACC-5C $ 370.00
• 5C Collet Closer Set (Atlas) CCD1-4 $ 2,145.00

All highlighted items are factory order only and all guards are needed for UL compliance certificate

DIGITAL READ OUT SYSTEMS:

• Fagor 20i D.R.O. FG-13VS $ 2260.00
• Fagor 40i D.R.O. FG-40i-13VS $ 3,425.00
• Acu-Rite 203S D.R.O. AR-13VS $ 3,720.00
• Newall NMS 800 DRO NWN-13VS $ 2,885.00
Factory Installation for all D.R.O. systems $ 595.00 NET

Note: All prices and specification subject to change without notice. Please verify
30 % deposit is required and payment subjects to our standard terms and conditions
