1340VS-K
Have one to sell?
ConditionNew
New

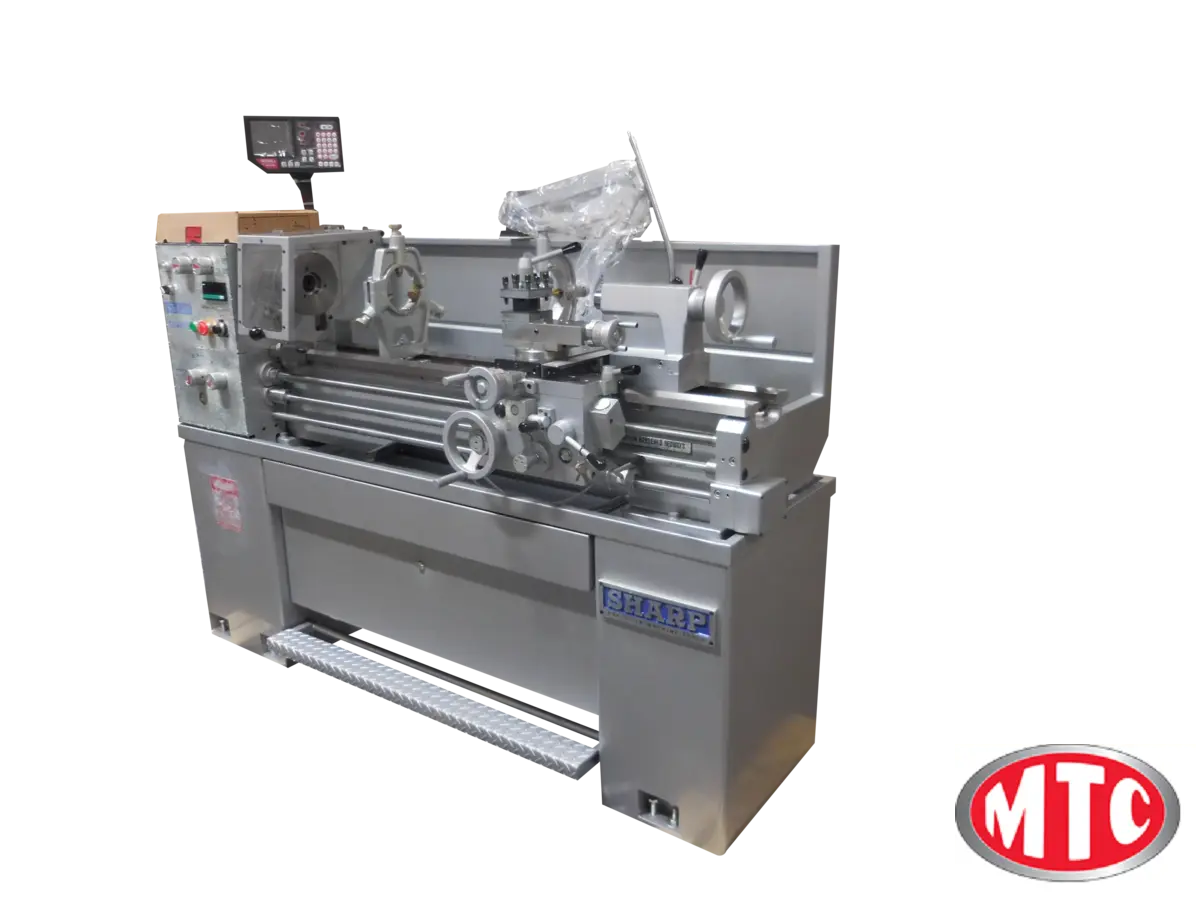

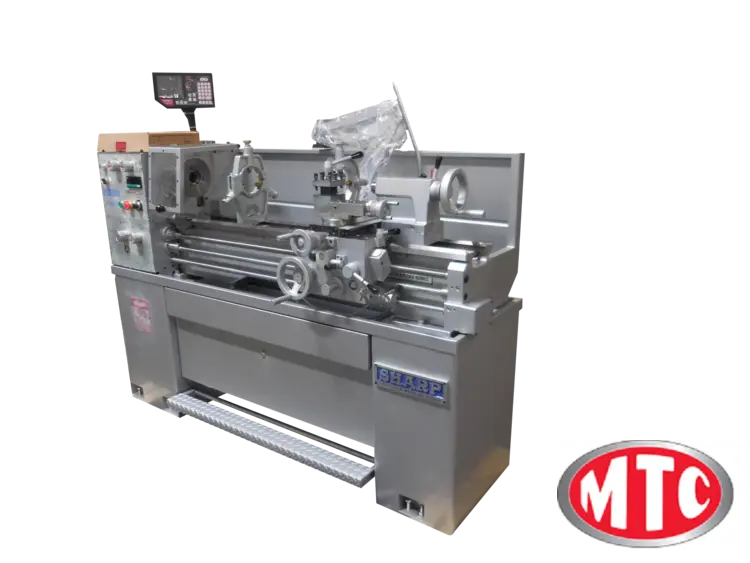

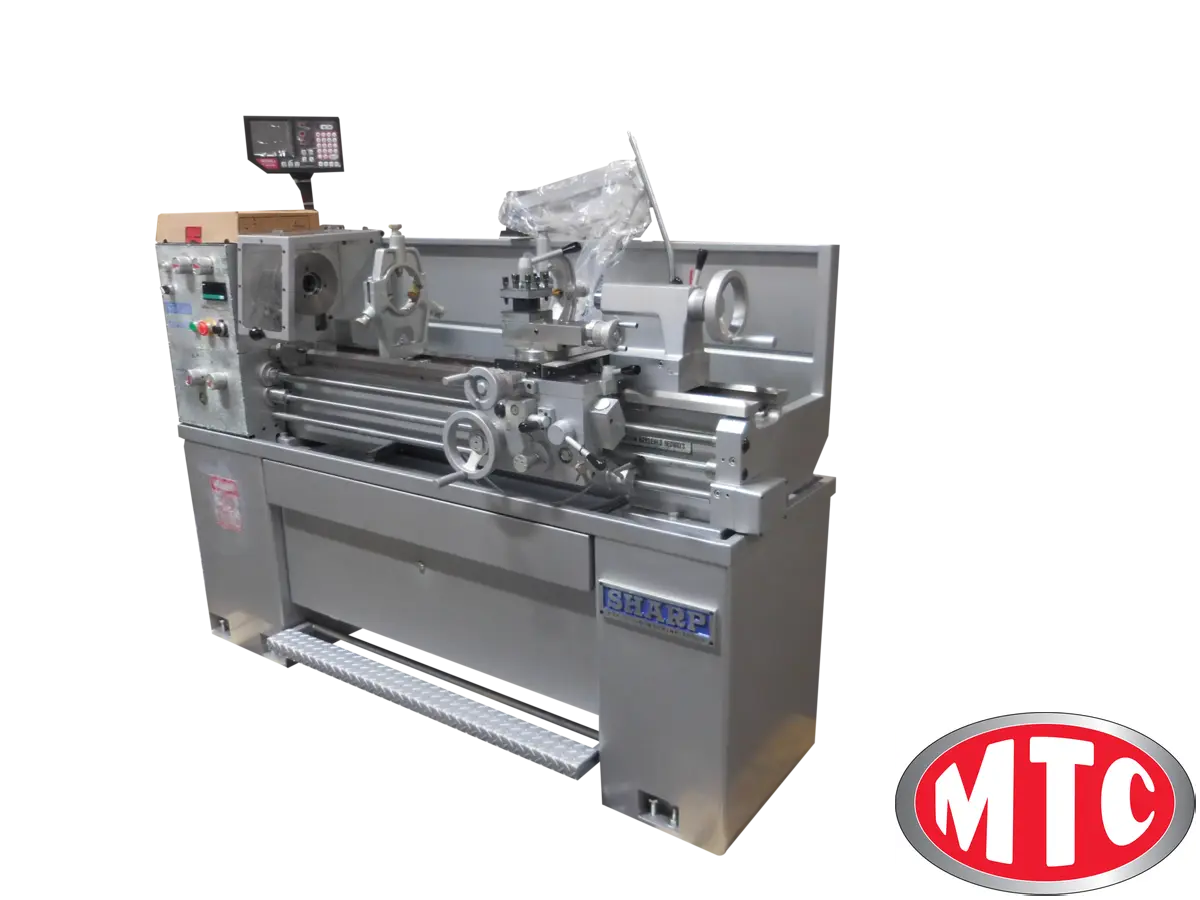

Sharp model 1340VS-K Precision Engine lathe with AC variable speed and Digital readouts and Chuck guard and Safety switch
FEATURES:
• 13”x 40” Capacity
• 7-5/8” Over Cross Slide
• 40-2000 RPM
• “VS” Model can run single phase electrics
• D1-4 Camlock Spindle 1-1/2” Bore
• Gap Bed
• 3 HP Motor (2-Speed Motor)
• Hardened and Ground Bed Ways (Rockwell 50)
• Larger Compound, Tailstock, and Apron Allow Heavier Cutting with Less Vibration than Competitive Models
• Vari-Speed, All Geared Headstock Housed inside a Sturdy Cast Iron Base.
• Jog Button for Easy Gear Engagement and Inching Spindle
• Quick Change Gearbox Offers a Wide Range of Threads
STANDARD EQUIPMENT:
• 3-Jaw 8” Chuck
• Removable Gap
• Steady Rest (Capacity, ¼” – 2.5”)
• Coolant System
• Splash Guard
• 4-Way Tool Post ( made in Taiwan)
• 6” Diameter Back Plate
• Threading Dial
• Foot Brake
• Center Sleeve (MT #5 x 3)
• Dead Centers (MT #3)
• Follow rest
• Chuck guard with limited switch
• Work light
• Newall NMS 300, 2 axes DRO
• Wired 220V (**440V – Optional additional transformer charge required)
• Tool Kit includes:
Machine Manual, Half Nut Wrench, Wrench 17m, 19m, Set of 6 Allen wrenches, Phillip Screw Driver, Flat Head Screw Driver, Oil can, Grease Gun, Rear Way Cover Bracket, 2 set of dead center, Pin for Indicator, Can of Paint
SPECIFICATIONS:
Capacity
• Swing Over Bed 13”
• Swing Over Cross Slide 8-5/16”
• Swing Over Gap 18-1/2”
• Width Of Bed 7-1/2”
• Width of Gap 9.25”
• Distance Between Centers 40”
Headstock
• Spindle Nose Type D1-4 camlock
• Spindle Bore 1-9/16”
• Spindle Speeds 40-2,000 RPM
• Taper of Spindle Bore MT#5
Threads and Feeds
• Longitudinal Feeds – in/rev (40) 0.0016 - 0.046
• Cross Feeds – in / rev (40) 0.0005 –0.015”
• Inch Threads (40) 2-56 tpi
• Metric Threads (22) 0. 5 –12mm
• Lead screw Pitch, Diameter 8 tpi, 7/8”
Carriage
• Apron Width 11”
• Cross Slide Width 4.5”
• Cross Slide Travel 6-3/4”
• Compound Rest Travel 3-1/2”
Bed
• Bed Length 64”
• Bed Width 7-1/2”
Tailstock
• Quill Travel (graduated) 4”
• Quill Diameter 1-9/16”
• Quill Taper MT#3
General
• Spindle Motor 3 hp
• Net Weight (approx.) 1,550 LBS
• Standard Color Gray
Specifications may be changed or improved without notice.
Electrical:
• Voltage 220
• Phase 3 phase
• (440 volts optional) transformer required for additional cost $720.00 NET
Total Power Consumptions
• 220V 3KVA/10 amps
• 440V 3KVA/5 amps
OPTIONAL ACCESSORIES:
• 380V, 440V, 575V Transformer – 3HP 440T4 $ 895.00 NET
• 4 - Jaw Chuck 8” (QU) 4J8D4 $ 725.00
• 4 - Jaw Chuck 10" (QU) 4J10D4 $ 845.00
• 3 - Jaw Chuck 8” (Bison) 803-0834 $ 1,485.00
• 4 - Jaw Chuck 8” (Bison) 853-0834 $ 1,445.00
• Follow Rest - for 1340VS ( capacity, 0.4” – 2.17”) 13V-07 $ 300.00
• Roller Jaws for steady rest, 3 pcs 13F-RJAW $ 345.00
• Taper Attachment - for 1340 ( factory installed) 13F-02 $ 2,565.00
• Quick Change Tool Holder Set (Aloris) - 7 Pcs/Holder BXA-2511-7150 $ 1,900.00 Live Center - MT#3 LC-MT3 $ 170.00
• Live Center with 7 Interchangeable Points CL-21-007 $ 535.00
• Drill Chuck & Arbor (JACOBS) 13/14-D/A $ 420.00
• Face Plate (12”) D1-4 Face-12-D4 $ 215.00
• 4-Way Carriage Stop 13v-03 $ 255.00
• Micrometer Carriage Stop - for 1340VS 13V-01 $ 255.00
• Halogen Work Light WL-24V70W $ 290.00
• UL( ( to meet state of California) rated electrical parts & motor in lieu of standard version ** 13/14-UL $ 1,075.00
• CSA rated electrical parts & motor in lieu of standard version ** 13/14 CSA $ 1,310.00
• Safety cover at end of spindle ** 13/14-G1 $ 75.00
• Tool guard include limited switch ** 13/14-G3 $ 565.00
• Lead screw cover ( accordion type) ** 13/14-G4 $ 1,135.00
• UL or CSA Compliance Certificate for entire machine by a Los Angeles area UL licensed company. Good for California only. CSA is good for Canada. For outside California, please check with local UL licensed company for certification. Must order with 1. UL or CSA electrical components and motor (Item 13/14-UL,or 13/14-CSA). 2. Spindle safety cover (Item 13/14-G1). 3. Tool guard (Item # 13/14-G3) . 4. Lead screw cover (Item # 13/14-G4) 5. Chuck guard (13/14-08) in order to be certified. Net $ 4620.00
• CE Mark ( factory order) net $ 1340.00
5C Collet Set, 1/8” to 1” By 1/16” (16 Pcs) ACC-5C $ 370.00
• 5C Collet Closer Set (Atlas) CCD1-4 $ 2,145.00
Factory Installation for all D.R.O. systems $ 540.00 NET
