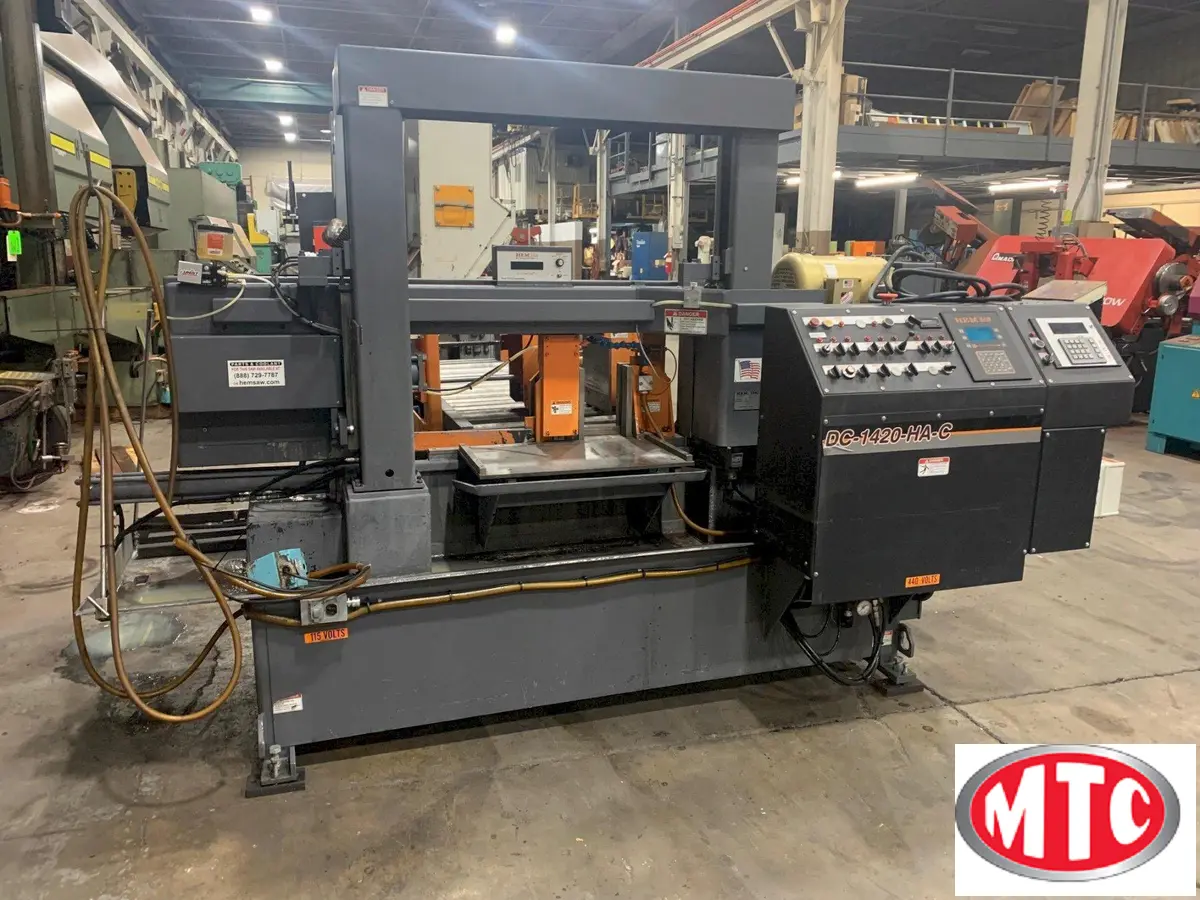

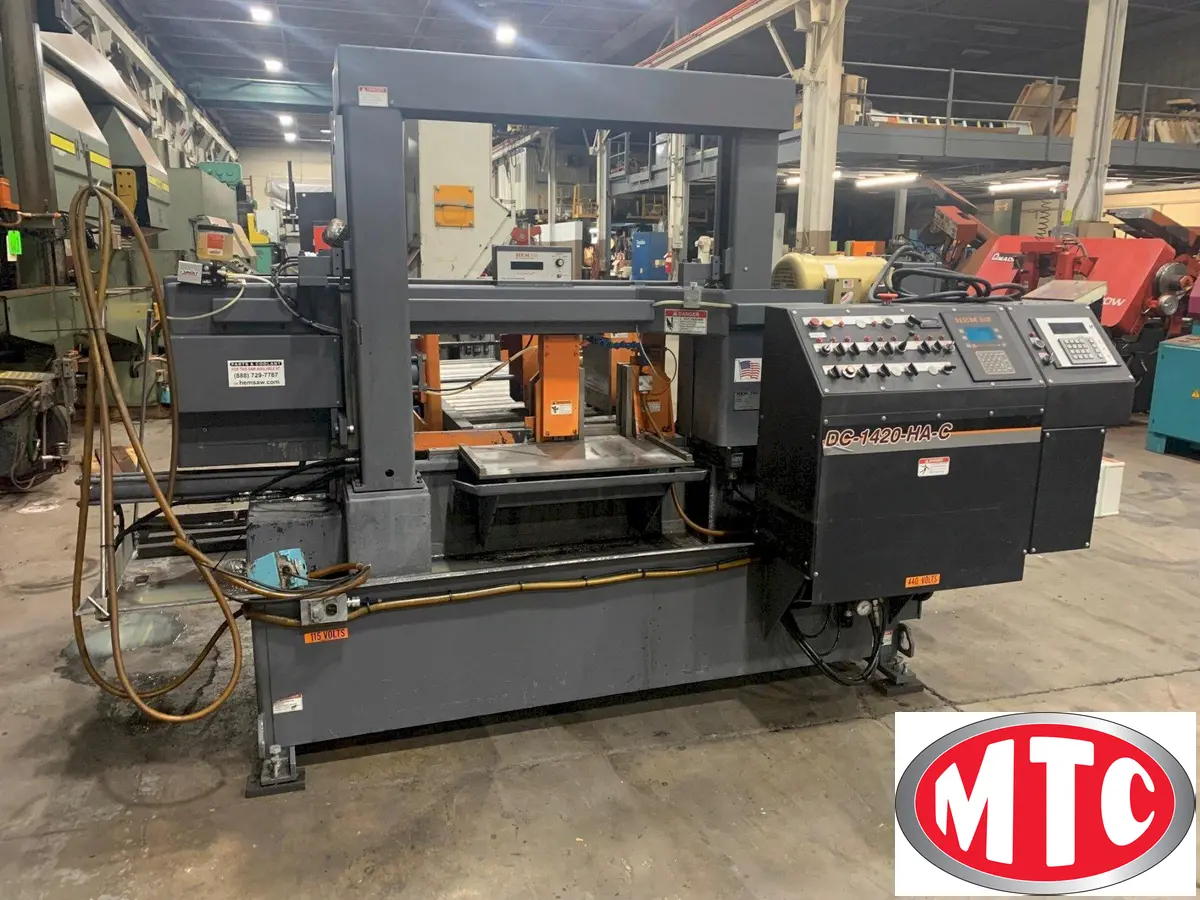

USED HEM 14" X 20" MODEL DC-1420HA-C DUAL COLUMN AUTOMATIC HORIZONTAL BANDSAW,
Have one to sell?
ConditionUsed
1 available
USED HEM 14" X 20" MODEL DC-1420HA-C DUAL COLUMN
AUTOMATIC HORIZONTAL BANDSAW.
Computer controlled feed system
Cut watcher system
Split front vise
3rd holding vise
Hydraulic feed traverse
Chip auger
Full stroking vises
Head height adjustment from control
18" solid discharge table
Material jog
Rect-Cap (H) 14 inches
Rect-Cap (W) 20 inches
CNC Control yes
Type of CNC Control Hem
Capacity: 14" x 20"
Blade size: 1-1/4" x 17'8" x .042"
Blade drive: 7.5 H.P. (variable frequency drive)
Blade tension: Hydraulic
Guide arm: Hydraulic
Coolant type: Flood or Mist
Hydraulic drive: 2 H.P.
Shuttle stroke: 0-24" (with multi index)
Voltage: 440 volt 3 phase
Dimensions: (Saw) 126" x 54" x 80" (conveyor) 88" x 82" x 51"
Weight: 8,000 Lbs. (est.)
