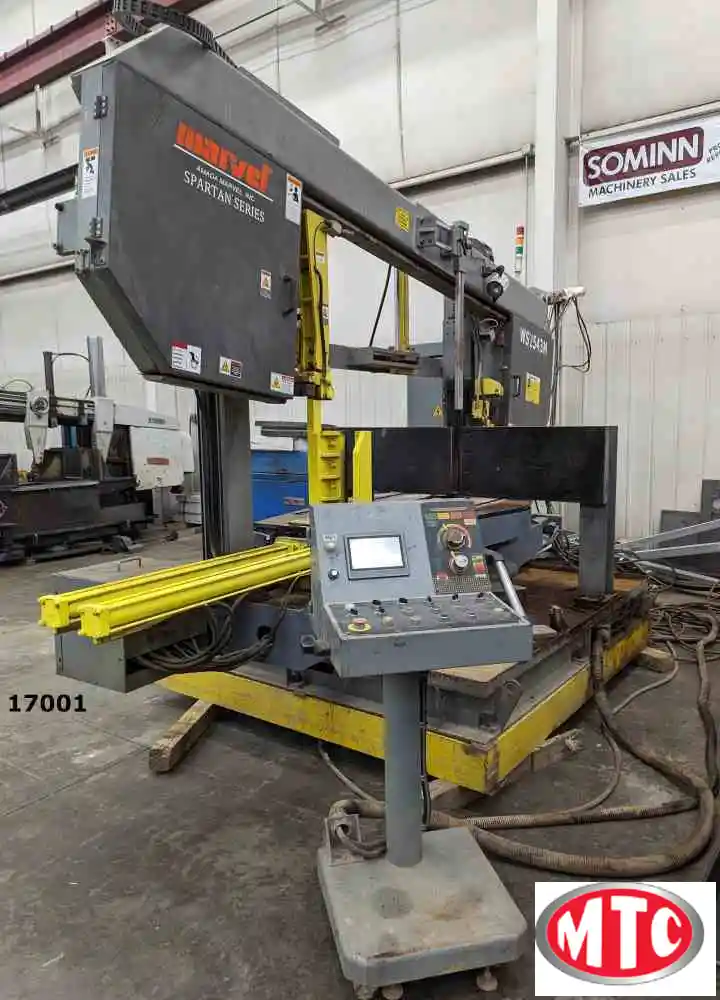

2020 Dual Column Marvel/Spartan WS2543M Horiztonal Bandsaw

90 DEGREE CAPACITY
- 25.6" DIAMETER ROUND AT 90 DEGREES
- 25.6" X 43.0" RECTANGLE AT 90 DEGREES
45 DEGREE CAPACITY
- 25.6 DIAMETER ROUND AT 45 DEGREES
- 25.6" X 25.6" RECTANGLE AT 45 DEGREES
60 DEGREE CAPACITY
- 25.6" DIAMETER ROUND A 60 DEGREES
- 25.6" X 15.7" RECTANGLE AT 60 DEGREES
28'-6.5" X 2.13" X .063" BLADE SIZE
98 TO 361 SFPM BLADE SPEED
HYDRAULICALLY CONTROL BLADE TENSION
FLUID CAPACITIES
- 31.7 GALLON COOLANT
- 21.1 GALLON HYDRAULIC FLUID
- 1.3 GALLON TRANSMISSION FLUID
4400 LBS LOAD CAPACITY
PRESSURE SETTINGS
- 1067 PSI HYDRAULIC PRESSURE
- 39825 PSI BLADE TENSION
