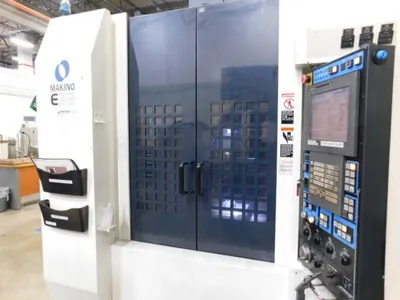

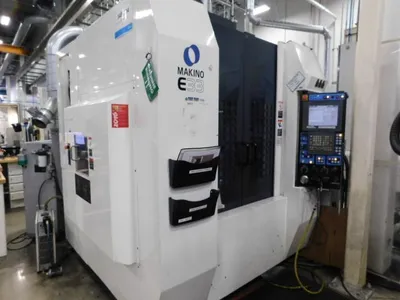

Makino Hard milling Machine with Graphite machining Package, makino Factory Maintenance program every 2000 hours
Equipped with:
Pro 5 control, The Makino Professional 5 Control provides the perfect blend of a Windows CE graphical user interface (GUI), touch-screen convenience, the networking and storage capability of a data center, and the proven stability of Fanuc 310i hardware. It provides a highly integrated, superior performance, embedded control system capable of fast execution of commands, high reliability, flexibility, integration capability and ease of operation.
Graphite machining package
Auto lube
Fully enclosed
Rigid tap
Helical interpolation
Transformer
Spindle chiller
Linear scale feedback
Recent new ballscrews
New: 2008
NOTE: This machine was holding 0.0003” to 0.0005” upon removal from service.
Note: Machine has always been under contract with Makino to do “Preventative Maintenance” and has always been Makino “Only” maintained.
Every 2,000 hours, all covers are removed and the machine is cleaned. All filters are replaced, all oil & fluids drained and replaced with new. (Makino actually has a “kit” for this)
Model: E33
Travels: 25.6” x 17.7” x 17.7”
Table size: 35.5” x 19.7”
Spindle speeds: 400-40,000 rpm
Spindle taper: HSK E32
Spindle HP: 11.25
ATC: 30
Rapid feed rates: 1,574 ipm
Cutting feed rates: 1,574 ipm
Max. work piece weight: 1,102 lbs.
Dimensions: 90” wide x 99” long x 119” high x 16,090 lbs.
Equipped with:
Pro 5 control, The Makino Professional 5 Control provides the perfect blend of a Windows CE graphical user interface (GUI), touch-screen convenience, the networking and storage capability of a data center, and the proven stability of Fanuc 310i hardware. It provides a highly integrated, superior performance, embedded control system capable of fast execution of commands, high reliability, flexibility, integration capability and ease of operation.
Graphite machining package
Auto lube
Fully enclosed
Rigid tap
Helical interpolation
Transformer
Spindle chiller
Linear scale feedback
Recent new ballscrews
New: 2008
NOTE: This machine was holding 0.0003” to 0.0005” upon removal from service.
