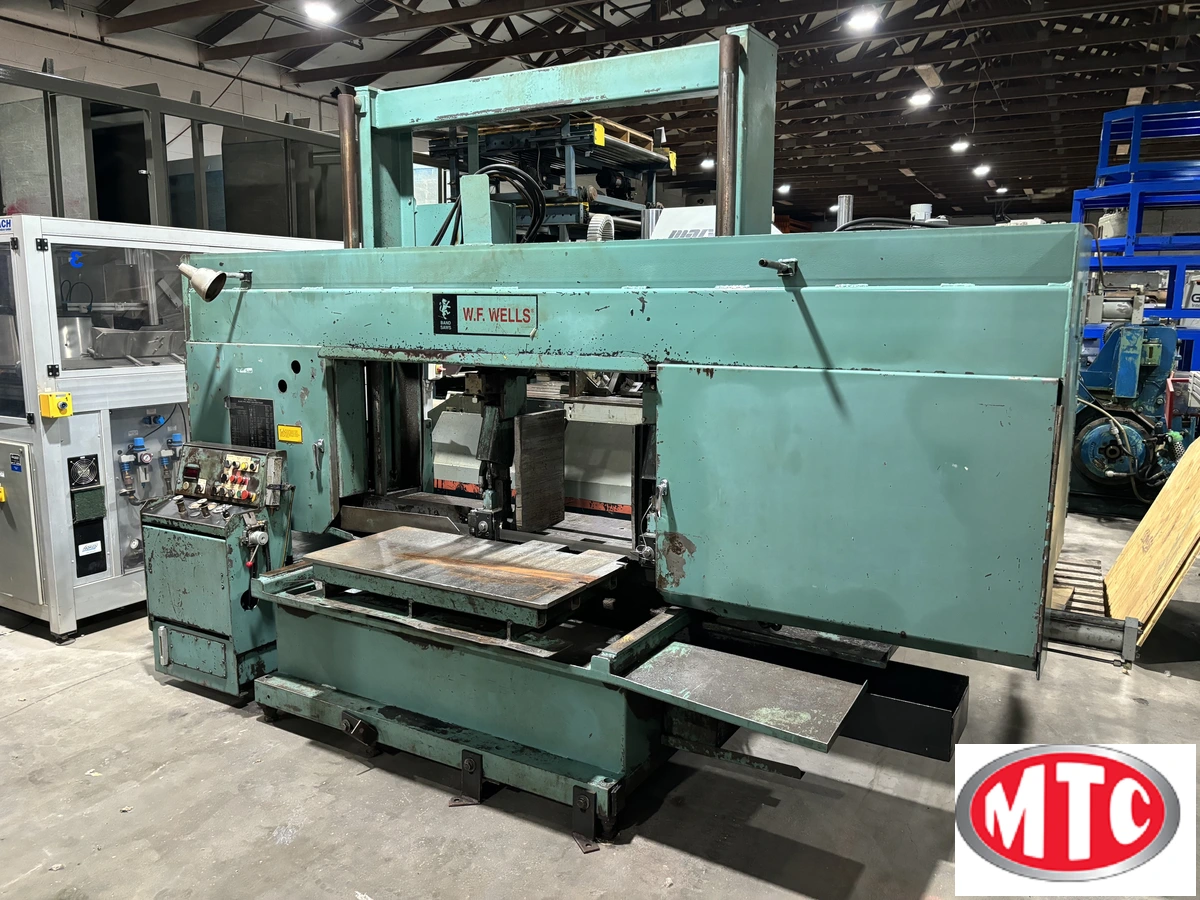

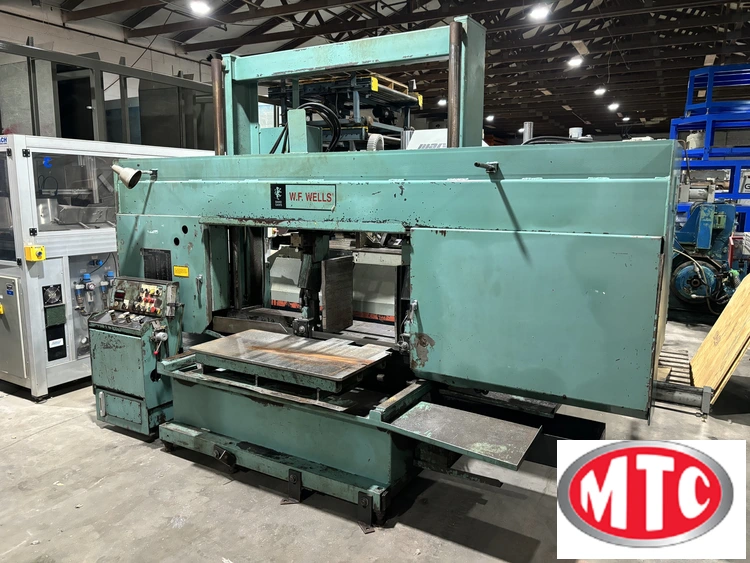

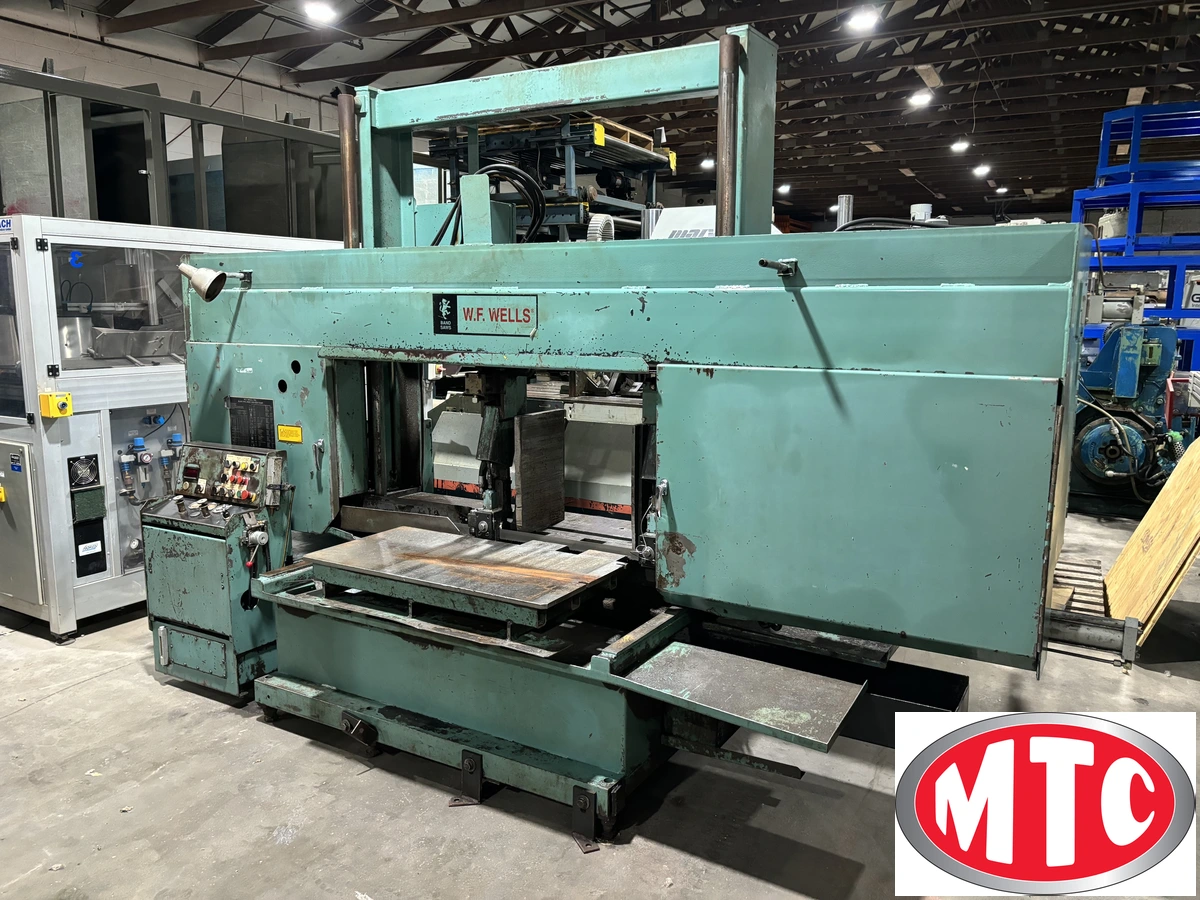

W. F. WELLS MODEL B-25-2

Capacity: Rectangular at 90° 25″ High x 40″ Wide, Round 25.5″
Rectangular at 45° 25″ High X 24″ Wide
Weight Capacity: 15,000 lbs
Blade Speed: 60-500 SFPM
Blade Guide: Spring Tensioned Carbide Blocks with Idle Roller Backup
Blade Tension: Hydraulic
Bandwheel Size: 26″
Vise: Hydraulic
Blade Drive: 10 HP, AC Vector Drive
Sawing Force: 0-1,000 lbs
Coolant Capacity: 15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 5 HP Motor
Work Height: 28″
Outfeed Table: 24″ X 40″
Vise Jaw Height: 17”
Blade Break/Stall Switch
Hydraulic Positioned Guide Arm
Hydraulic Powered Blade Brush
Electronic Door Interlocks
Blade Tension Indicator
Shipping Weight: 6,600 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine Dimensions: 170” Length x 55″ Width x 100″ Height
