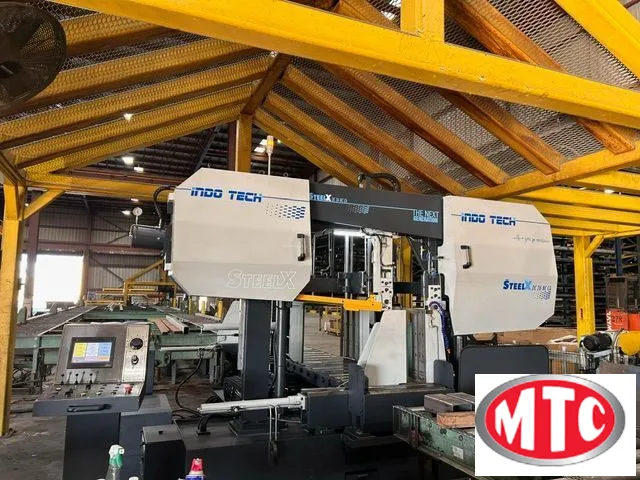

Indotech DC 26 NC Horizontal, Dual Column, Programmable Bandsaw like Doall, Marvel, Amada, HEM, Hyd-Mech, Kasto and Behringer

1.1 Technical Specifications

Cutting Capacity

• Round
25.5 inches Dia

• Square

25.5 x 25.5 Inches

• Rectangle

25.5 x 25.5 Inches

• Saw Band Dimensions 322 x 2/2.63 x 0.0062 Inches

• Main Motor Power 12.5 HP
• Hydraulic Motor 3.0 HP
• Coolant Motor 0.25 HP
• Cleaning Brush Motor Power 0.16 HP
• Blade Speed 65 – 330 ft/min

Machine Electrical Equipment

• Supply Voltage ~ 3 x 415V, 50 Hz
• Protection Degree IP 54

1.2 Approximate Machine Dimensions

• Length 175 Inches
• Width 86 Inches
• Height 102 Inches
• Net Weight 15,000 Lbs.
COLUMNS AND BOW
• Bow is made in electro-welded and stabilized steel.
• Bow and main column are filled in with concrete polymer.
• Column pre-welded and machined in single setting for most accurate parallelism.

AUTOMATIC BLADE TENSIONING
State of the art Four Point Pillar Type Hydraulic Blade Tensioning

12.5 HP POWER TRANSMISSION
High efficiency power transmission to Saw through HELICAL GEARED MOTOR

BLADE GUIDE
Automatically Adjustable, Dove-tail Type Heavy Duty Movable Blade Guides.

BEARING HOUSING
Special bearing housing with heavy duty Cylindrical Roller bearing to isolate the Gear Box from the load of blade tensioning

VARIABLE FREQUENCY DRIVE
A.C. frequency control drive for infinite variation
of band speed through control panel.

10" COLOR SCREEN FOR ALL MACHINE FUNCTIONS
Cycle sequencing through PLC and user friendly touch screen for easy operation.

MAIN AND SHUTTLE VISES
Double acting Hydraulic Cylinder for Main Vice & Shuttle Vice (with Vice height of (25.5")

SAW FRAME MOVEMENT
Saw Frame movement on pre-hardened and pre-loaded LM guides for friction free movement.

PRESSURE VALVE
Specially designed pressure valve to accurately balance the saw frame during cutting operation depending on material being cut, thereby resulting in much better tool life.

AUTO INDEXING SHUTTLE
Shuttle stroke is 60"

HYDRAULIC POWER PACK
Separate Hydraulic Power Pack for easy maintenance with a tank of 22 Gallons.

PART LENGTH MEASURMENT
Length setting through Digital Linear Scale along with Sensor with Multiple Batch programming through High End PLC with frequency converter. Length to be set through PLC without any human intervention

Ergonomic Control panel and electrics.
Powered Blade brush.
Rotary Encoder for Actual Downfeed display
