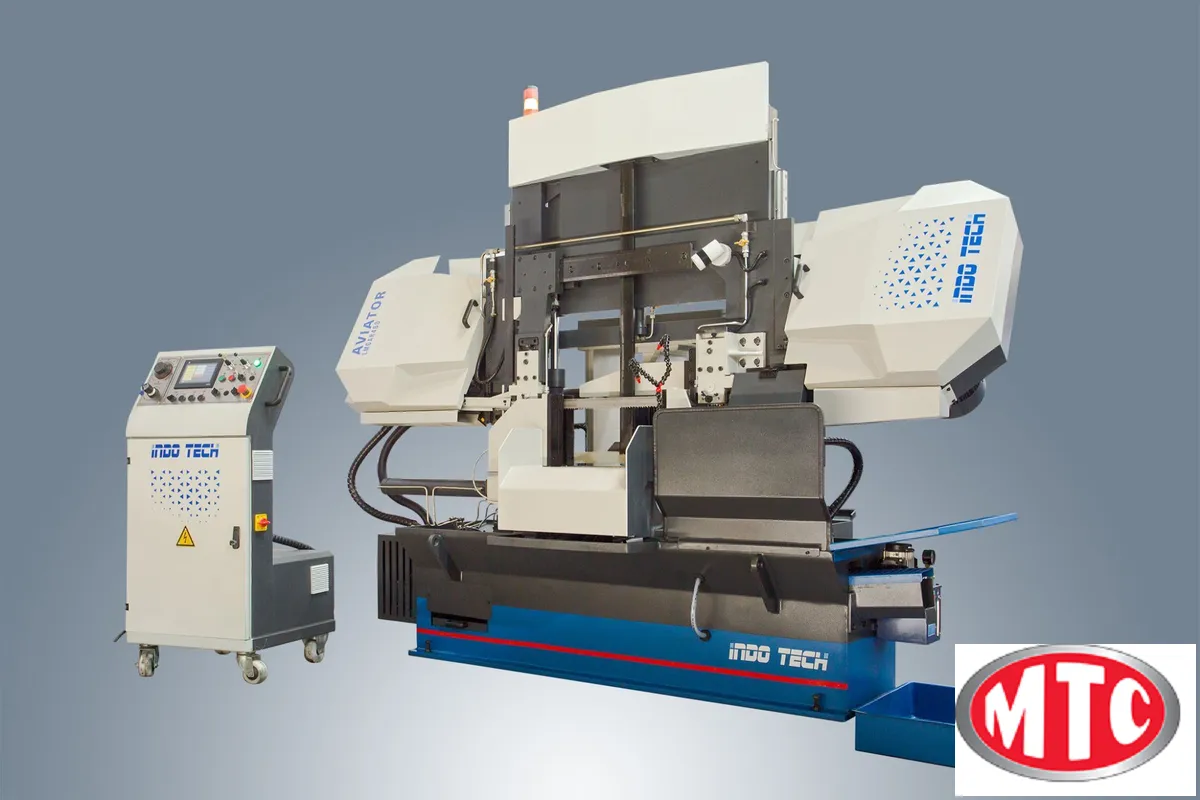

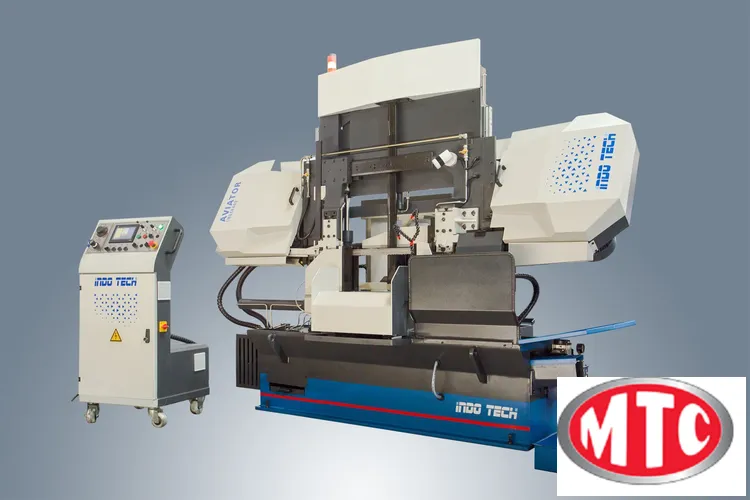

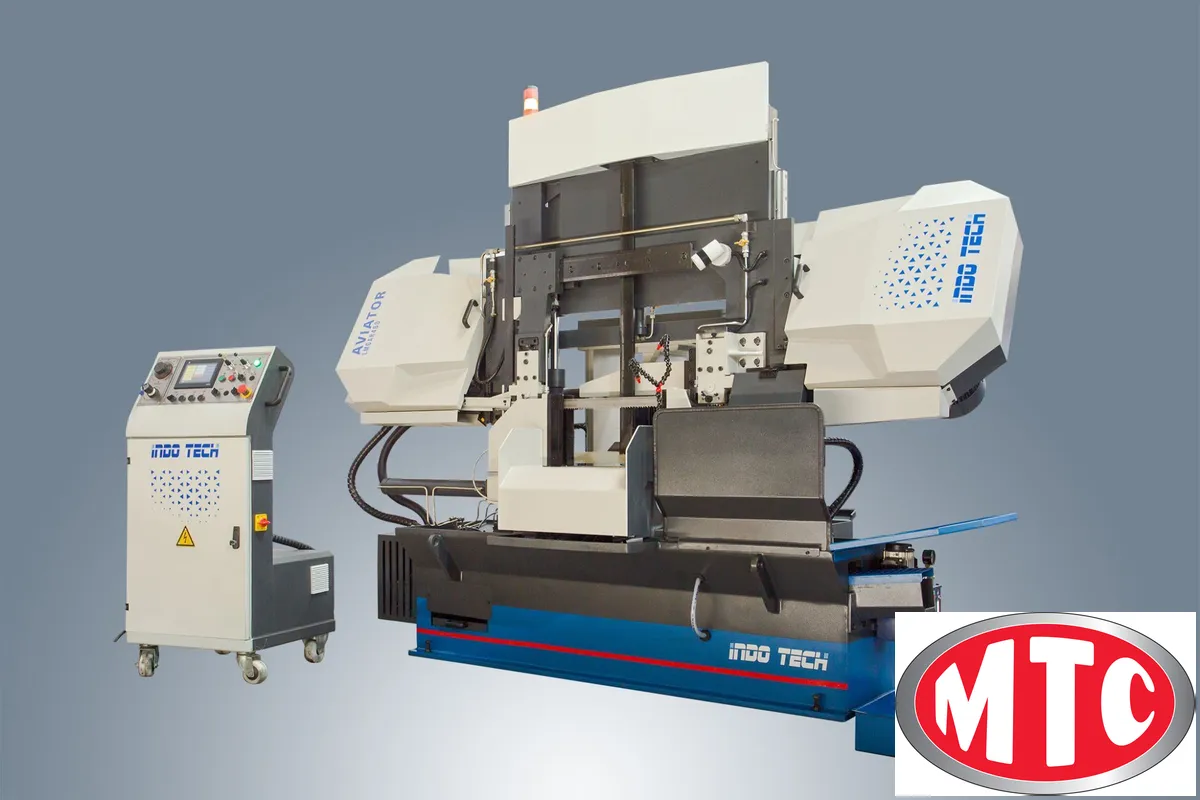

Indotech DC 42 NC, Dual Column, Horizontal, Programmable Automatic bandsaw like Amada, Behringer, Doall, HEM, Hyd-Mech, Kasto, Marvel
Have one to sell?
$169,000.00 USD
ConditionUsed
1 available
New Indotech heavy Duty, Dual Column, Horizontal, Programmable 41.33" Capacity bandsaw, using Hardened and ground linear bearings, Omron 10" Color Screen with machine Diagnostics, Chip conveyor, Helical geared power transmission, State of the art 4 point blade alignment, Auto blade align, Auto Blade guide adjust, H.D. Cylindrical roller bearings, Variable frequency drive, Separate hydraulic pack, Double acting Main bise cylinder, Ergonomically designed trough out and our unique Pressure valve
Programmable control (Omron), Linear Guide ways, Auto blade tracking, Auto Guide arm adjust, Helical gear drive, AC frequency 20 HP motor and drive, Standard electrics throughout, double acting main hydraulic vise, blade Brush, Chip conveyor and wash down hose, manuals and Warranty, set up and install
1.1 Technical Specifications:
• Cutting Capacity
o Round 41.33 Inches Dia
o Square 41.33 x 41.33 Inches
o Rectangle 41.33 x 41.33 Inches
• Saw Band Dimensions 1419 x 2.63 x 0.06 Inches
(3.14 Inch blade optional, if required.)
• Main Motor Power 20.0 HP
• Hydraulic Motor 3.0 HP
• Coolant Motor 0.25 HP
• Cleaning Brush Motor Power 0.16 HP
• Blade Speed 20-80 Miter/Minutes
• Machine Electrical Equipment:
o Supply Voltage 3 Phase 220 or 440 Volt 60 Cycle Hz
o Protection Degree IP 54
1.2 Approximate Machine Dimensions:
• Length 189 Inches
• Width 69 Inches
• Height 137 Inches
• Net Weight 18,000 Lbs.
