Indotech 41" Horizontal, Dual Column, Bandsaw, Semi-Automatic, like Amada, Doall, Kasto, Behringer, HEM, Marvel, Hyd-Mech
Have one to sell?
$189,900.00 USD
$152,200.00 USD
ConditionNew
1 available
New
Indotech, based in Indore, India, is a global leader in metal-cutting solutions with over 44 years of experience.
We provide innovative horizontal, miter, vertical, and circular saws, serving industries such as automotive, aerospace, and energy.
Our advanced manufacturing facility, technology, and rigorous quality control ensure excellence. We simplify clients’ needs through industry knowledge and collaboration, delivering world-class machinery, including Special Purpose Machines for diverse production requirements.

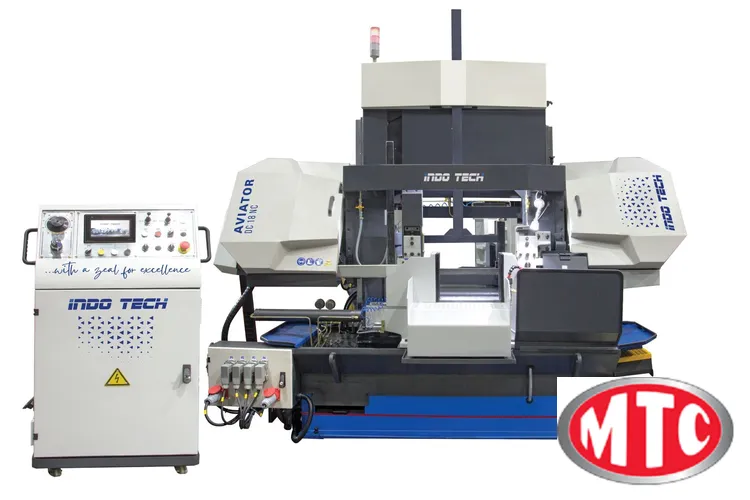

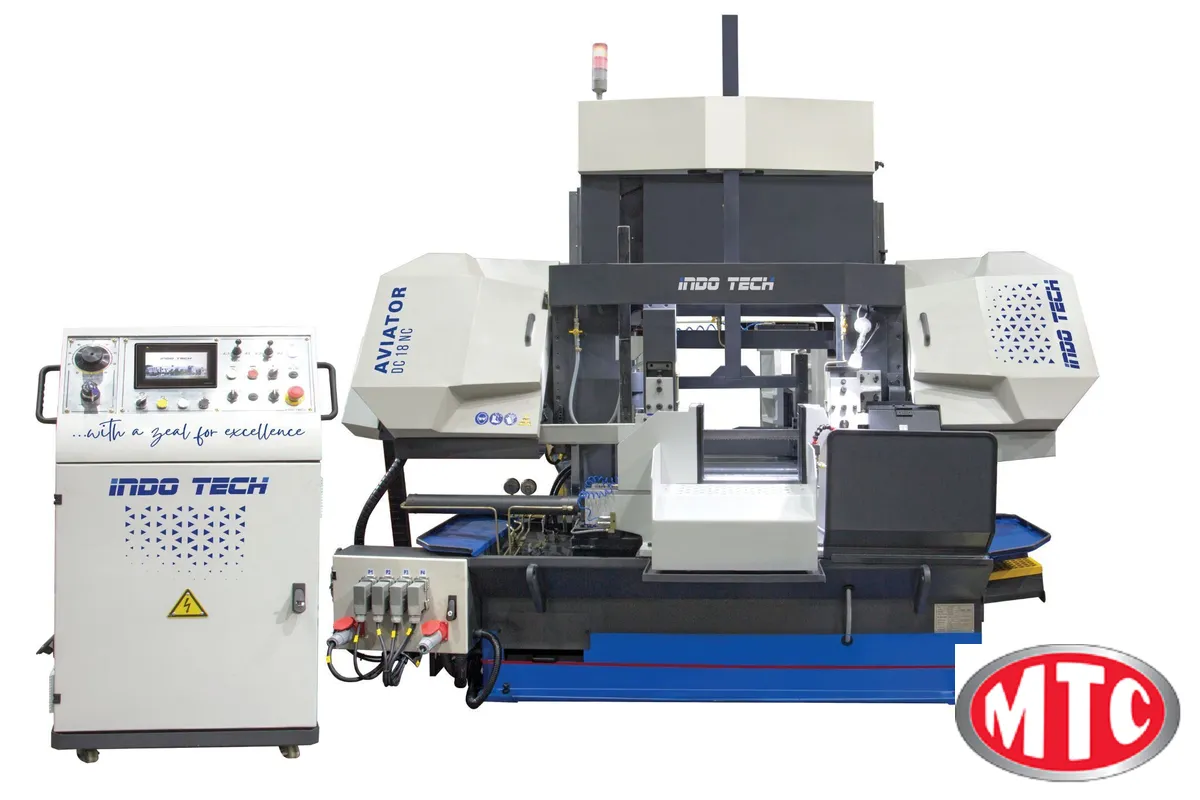

New Indotech Heavy duty 41.33" Capacity, Dual Column, Horizontal Semi-automatic Bandsaw, with 2.5" Blade
1 Year Warranty, Chip conveyor, Discharge tray, Coolant system, Wash down hose, Work light, Tool kit and manuals
1.1 Technical Specifications:
• Cutting Capacity
o Round 41.33 Inches Dia
o Square 41.33 x 41.33 Inches
o Rectangle 41.33 x 41.33 Inches
• Saw Band Dimensions 1419 x 2.63 x 0.06 Inches
(3.14 Inch blade optional, if required.)
• Main Motor Power 20.0 HP
• Hydraulic Motor 3.0 HP
• Coolant Motor 0.25 HP
• Cleaning Brush Motor Power 0.16 HP
• Blade Speed 20-80 Miter/Minutes
• Machine Electrical Equipment:
o Supply Voltage 3 phase, 220 or 440 volt 60 Cycle
o Protection Degree IP 54
1.2 Approximate Machine Dimensions:
• Length 189 Inches
• Width 69 Inches
• Height 137 Inches
• Net Weight 17,000 lbs.
• Bow is made in electro-welded and stabilized steel.
• Bow and main column are filled in with concrete polymer.
• Column pre-welded and machined in single setting for most accurate parallelism.
2.2 Automatic
Blade Tensioning
State of the art Four Point Pillar Type Hydraulic Blade Tensioning
2.3 Power
Transmission
High efficiency power transmission to Saw through HELICAL GEARED MOTOR
2.4 Bearing Housing
Special bearing housing with heavy duty Cylindrical Roller bearing to isolate the Gear Box from the load of blade tensioning.
2.5 Blade Guiding
Automatically Adjustable, Dove-tail Type Heavy Duty Movable Blade Guides.
2.6 Variable Frequency Drive
A.C. frequency control drive for infinite variation of band speed
through control panel
2.7 Hydraulic Power Pack
Separate Hydraulic Power Pack for easy maintenance with a tank of 21.5 Gallons.
2.8 Vice Hydraulic Cylinder
Double acting Hydraulic Cylinder for Main Vice.
2.9 Saw Frame Movement
Saw Frame movement on pre-hardened and pre-loaded LM guides for friction free movement
2.10 Electrical Control Panel
Ergonomically designed Electric Control Panel with readily available components.
2.11 Pressure Valve
Specially designed pressure valve to accurately balance the saw frame during cutting operation depending on material being cut, thereby resulting in much better tool life. or Optional NC controlled valve, programmed through the control.
