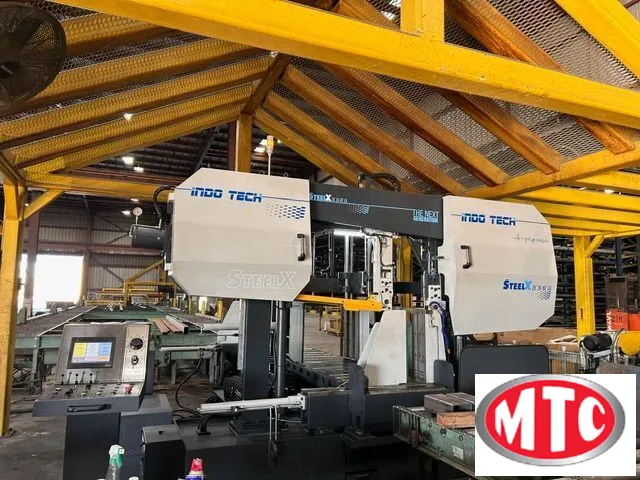

New DC-26SA Horizontal, Dual Column Bandsaw like Amada, Doall, Hyd-Mech, HEM, Marvel

1.1 Technical Specifications:
• Cutting Capacity
o Round 25.5 inches
o Square 25.5 x 25.5 Inches
o Rectangle 25.5 x 25.5 Inches

Saw Band Dimensions 322 x 2/2.63 x 0.0062 Inches

• Main Motor Power 12.5 HP
• Hydraulic Motor 2.0 HP
• Coolant Motor 0.25 HP
• Cleaning Brush Motor Power 0.16 HP
• Blade Speed 20-80 Miter/Minutes
• Machine Electrical Equipment:
o Supply Voltage ~ 3 x 415V, 50 Hz
o Protection Degree IP 54

1.2 Approximate Machine Dimensions:
• Length 175.2 Inches
• Width 68.9 Inches
• Height 102 Inches
• Net Weight 12,000 lbs.

2.2 Automatic
Blade Tensioning
State of the art Four Point Pillar Type Hydraulic Blade Tensioning
2.3 Power
Transmission
High efficiency power transmission to Saw through HELICAL GEARED MOTOR
2.4 Bearing Housing
Special bearing housing with heavy duty Cylindrical Roller bearing to isolate the Gear Box from the load of blade tensioning.
2.5 Blade Guiding
Automatically Adjustable, Dove-tail Type Heavy Duty Movable Blade Guides.
2.6 Variable Frequency Drive
A.C. frequency control drive for infinite variation of band speed
through control panel
2.7 Hydraulic Power Pack
Separate Hydraulic Power Pack for easy maintenance with a tank of 21.5 Gallons.
2.8 Vice Hydraulic Cylinder
Double acting Hydraulic Cylinder for Main Vice.
2.9 Saw Frame Movement
Saw Frame movement on pre-hardened and pre-loaded LM guides for friction free movement
2.10 Electrical Control Panel
Ergonomically designed Electric Control Panel with readily available components.
2.11 Pressure Valve
Specially designed pressure valve to accurately balance the saw frame during cutting operation depending on material being cut, thereby resulting in much better tool life. or Optional NC controlled valve, programmed through the control.
