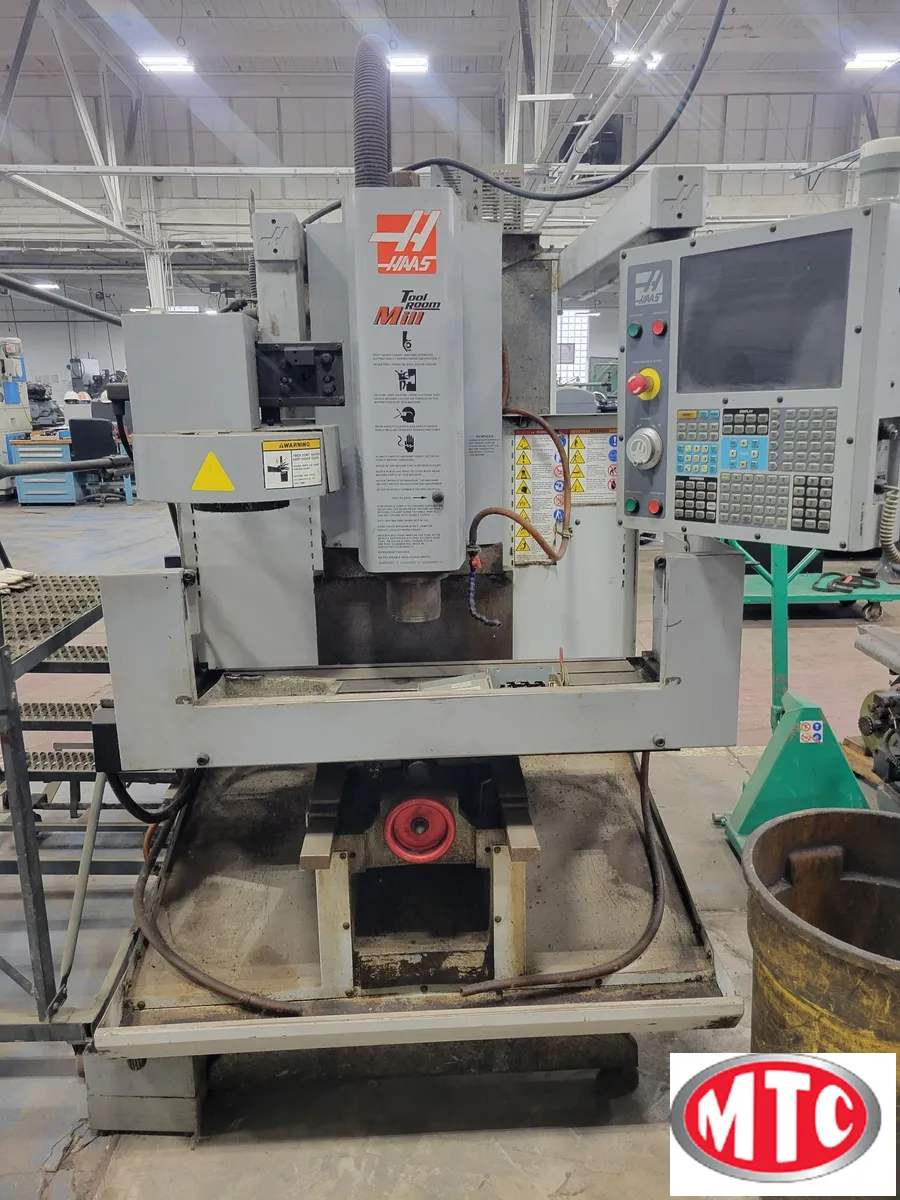

Used 2008 HAAS TM-1 | 2 & 3 Axis Control Vertical Milling Machine
Have one to sell?
ConditionUsed
1 available
$13,000.00 USD
Nice Haas Tool Room Mill with 10 Tool Automatic tool changer, Table guards, Coolant system and Hand wheels
10 position automatic tool Changer, Table splash Guards and coolant system, Hand wheels
Model: TM-1
Travels: 30” x 12” x 16”
Distance spindle to table: 4” to 20”
Table: 47.75” x 10.5”
Spindle rpm: 4,000
Spindle HP: 7.5
Spindle taper: Cat 40
ATC: 10 place
Rapid travels: 400 ipm
Max. cutting speeds: 400 ipm
Max. tool diameter: 3.5”
Max. tool weight: 12 lbs.
Nice Haas Tool Room Mill with 10 Tool Automatic tool changer, Table guards, Coolant system and Hand wheels
10 position automatic tool Changer, Table splash Guards and coolant system, Hand wheels
Imperial
| Table-W | 10.5" |
| Table-L | 47.75" |
| Travel-Long | 30" |
| Travel-Cross | 12" |
| Power | 7.5 hp |
| RPM | 4,000 RPM |
| Taper | 40 Cat |
| Control | CNC (Haas Quick code) |
| Dimensions | 55″ x 57″ x 68″ H |
| Weight | 4,000 Lbs. |
Model: TM-1
Travels: 30” x 12” x 16”
Distance spindle to table: 4” to 20”
Table: 47.75” x 10.5”
Spindle rpm: 4,000
Spindle HP: 7.5
Spindle taper: Cat 40
ATC: 10 place
Rapid travels: 400 ipm
Max. cutting speeds: 400 ipm
Max. tool diameter: 3.5”
Max. tool weight: 12 lbs.
