Used CINCINNATI 350CBX12 | Press Brakes

Have one to sell?
847-290-0167
sales@myerstc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Press Brakes
Manufacturer:
CINCINNATI
Model:
350CBX12
Stock #:
8557
Status:
For Sale
Serial #:
41935
Country:
United States

Description

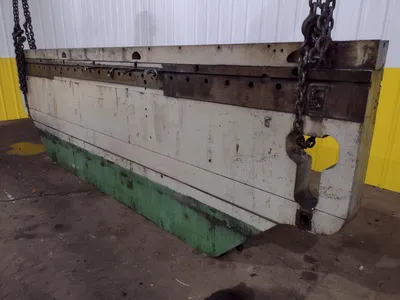

350 ton by 14' wide, 12'6" Between housings, Hydraulic press brake

older nc back gauge, Bed rail

Tonnage350 T317.515 t
TypeHYDHYD
Overall Length14'4.3 m
Between Housings12.5'3.8 m
Stroke10"254 mm
Dimensions162" LR X 75" FB X 132" TALL APROX.162" LR X 75" FB X 132" TALL APROX.
Weight40,000 LBS APROX.40,000 LBS APROX.

SERIAL ....................... 41835
MODEL ........................ 350 CB
CAPACITY ..................... 350 TON
OVERAL BED & RAM ............. 14'
DISTANCE BETWEEN HOUSINGS .... 12'6"
STROKE ....................... 10"
DAYLIGHT ..................... 18"
RAM SPEED APPROACH ........... 105 IPM
RAM SPEED FORMING ............ 5- 10- 20 IPM
RAM SPEED RETURN ............. 95 IPM
THROAT ....................... 10"

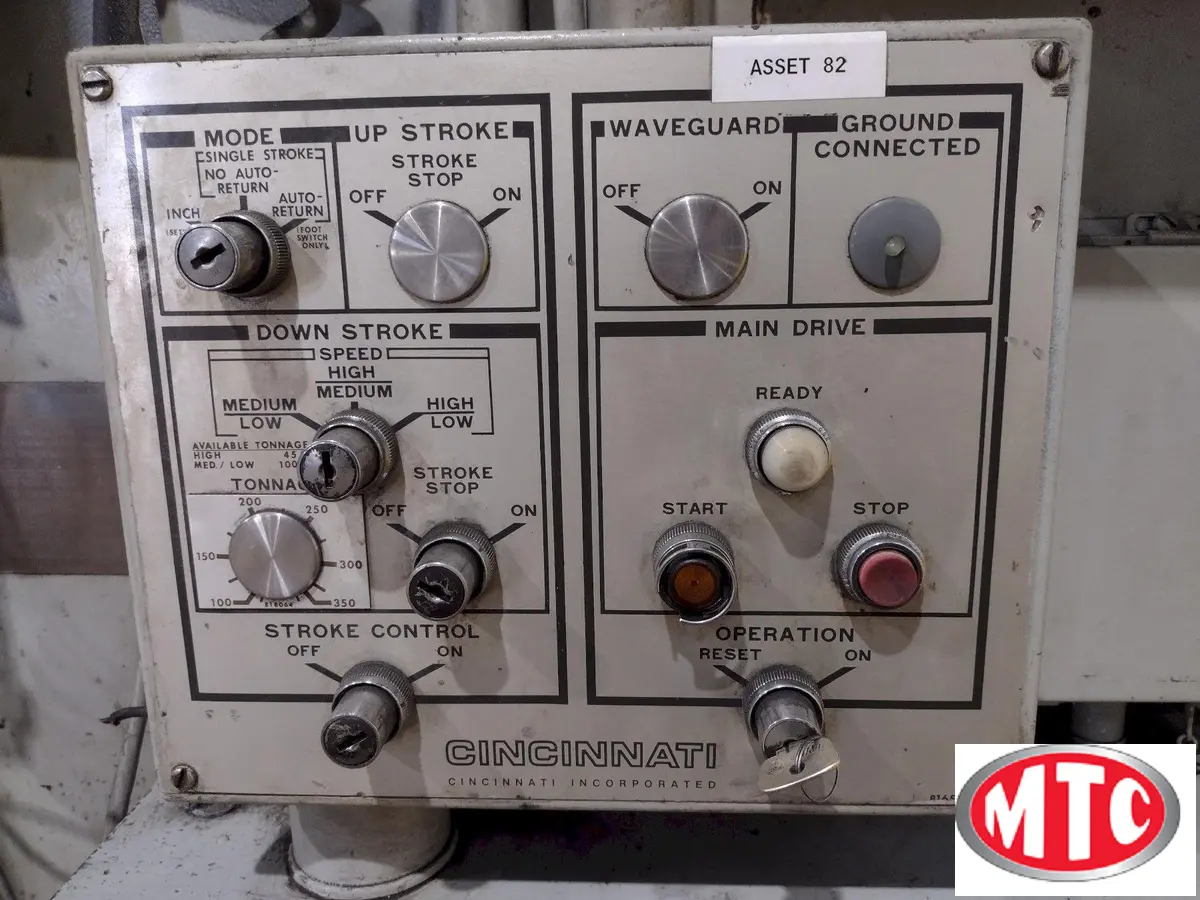

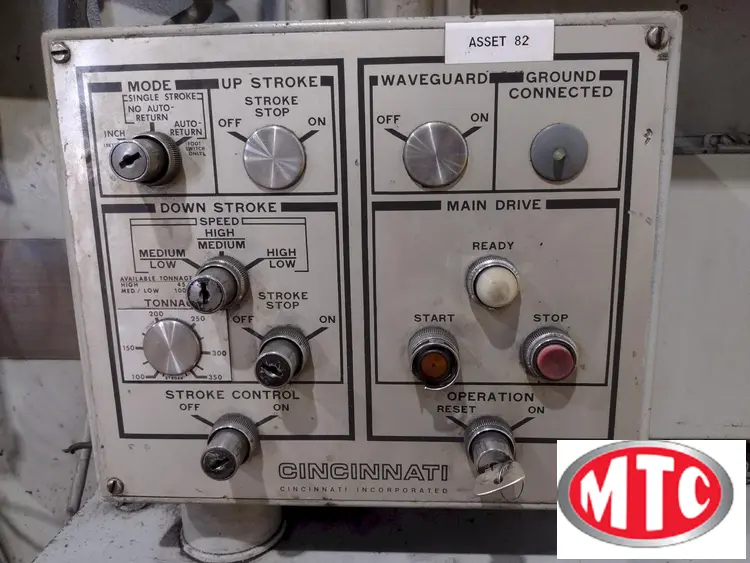

PALM BUTTON STATION .......... YES
ELECTRIC FOOT TRIP ........... YES
MOTOR ........................ 35 H
