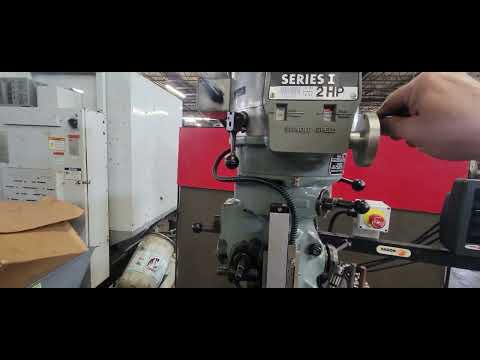

Bridgeport Series I 2 Hp Variable speed mill
Have one to sell?
ConditionUsed
1 available
Excellent condition Bridgeport Series I, 2 H.P. Vari speed, Mill with 3 axis Fagor DRO, Chrome ways, Servo power feed and Collet set, 42" Table
Fagor 3 Axis DROs, Servo Powerfeed, Set of R-8 collets, Drill chuck and Arbor, 6" Lock type vise, Edge finder, manual, Chrome ways, One shot lube, and misc. tools
BODY SERIAL ........................ 247760
SERIES ............................. I
AREA OF TABLE ...................... 42" X 9"
SPINDLE SPEEDS ..................... 60 TO 4200 RPM (VARIABLE)
SPINDLE FEEDS....................... .0015,.003, .006 IPR
LONGITUDINAL TABLE TRAVEL........... 30"
CROSS TRAVEL........................ 12"
VERTICAL KNEE TRAVEL................ 16"
QUILL TRAVEL........................ 5"
RAM TRAVEL.......................... 12"
DEPTH OF THROAT..................... 6-3/4" TO 18-3/4"
TAPER IN SPINDLE.................... R8
HEAD TILTS, FRONT/BACK.............. 45 DEGREE EITHER WAY
HEAD SWIVELS, LEFT/RIGHT............ 90 DEGREE EITHER WAY
CHROME WAYS......................... YES
1 SHOT LUBE......................... YES
DIGITAL READ OUT ................... 3 AXIS
MOTOR............................... 2 HP
voltage ............................... 440 Volt, 3Phase, 60 Cycle
