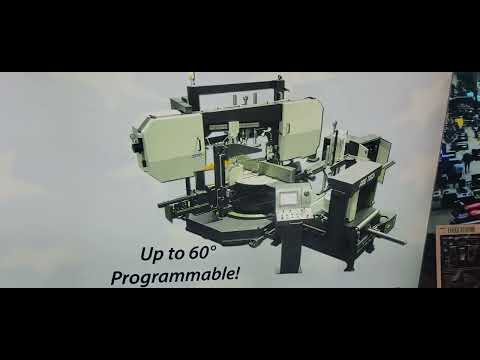

New 2026 HYD-MECH DC21-CNC | Horizontal Band Saws (Automatic)
Have one to sell?
ConditionNew
1 available
New
21" Capacity Dual Column Horizontal, CNC bandsaw with Ballscrew and Servo Downfeed control, Full enclosure, Canted head, Bundle cutting Clamps, Variable vise pressure, 10" LCD touch screen, Full machine diagnosis on Board, Ethernet connectivity, Movable pendant control, encoder downfeed feed back, (Actual speed), Automatic lube system, helical gear blade transmission,
Programmable control, Ball screw and servo downfeed, encoder feedback for actual feedrate, Hydraulic bundling front and rear, Variable vise pressure, Pendant mounted Control, Self diagnostics, 10" Color LCD, Split front vise, Chip conveyor, Coolant system, Full enclosure, Ethernet for off line monitoring
Capacity 20.5"
Blade speed 60 - 328 FPM
Blade Size 262" x 1.5" x 0.050"
Blade tension Hydraulic
Blade motor 10 HP
Hydraulic Motor .2 HP
Coolant motor .16 HP
Hydraulic reservoir 21 Gallons
Bundling clamps Yes
Variable vise pressure Yes
Guide type Heavy duty Linear way
Blade guides Carbide
Blade tracking Automatic
Blade drive Programmable variable speed, through Helical gear drive
Approx. weight 13,000 Lbs.
Overall Dimensions 137" x 84.6" x 87" high
