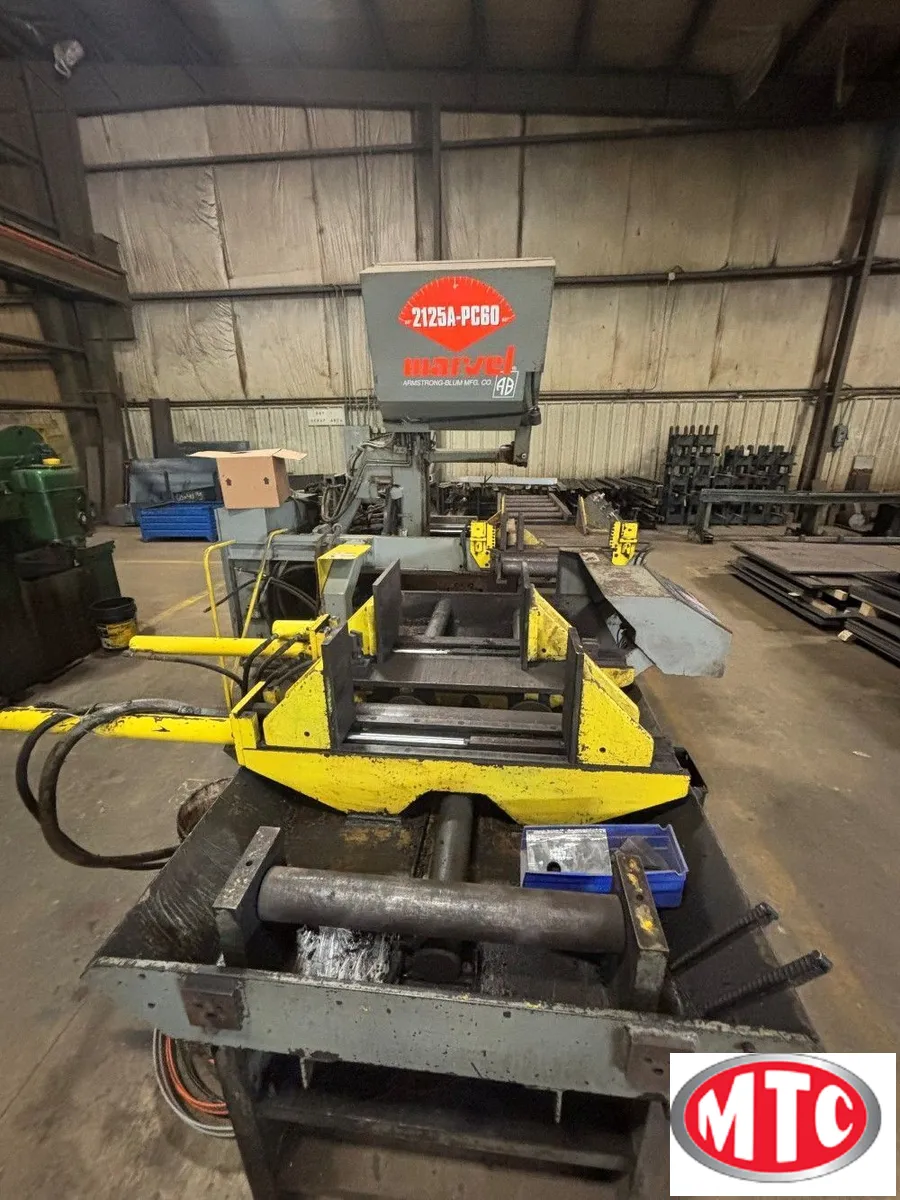

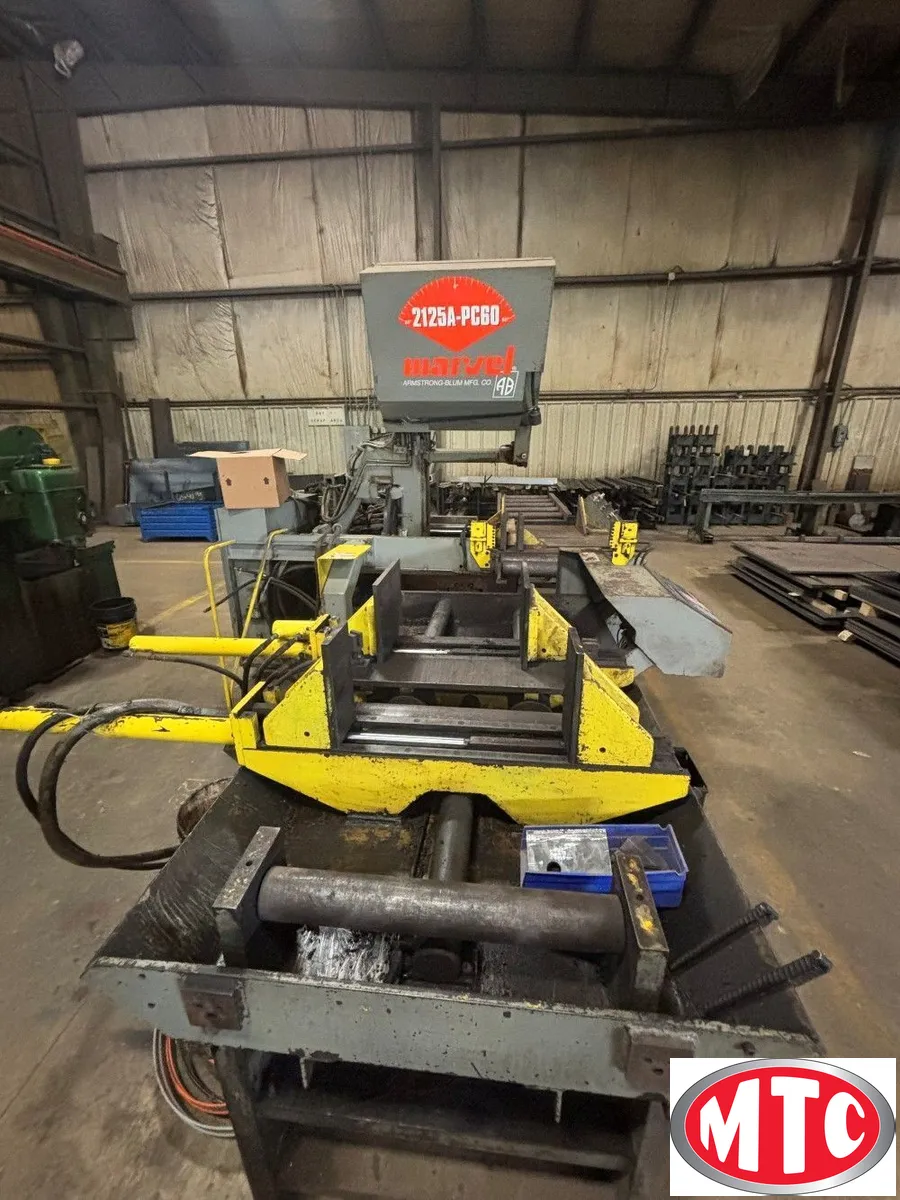

Used 2004 MARVEL 2125A-PC60 | vertical tilt frame saws

Capacity 20˝ x 25˝ 508 mm x 635 mm
Capacity @ 45° 20˝ x 17˝ 508 mm x 432 mm
Capacity @ 60° 20˝ x 11.25˝ 508 mm x 285 mm
3 Degree Canted Column Standard
Marvel PCII Controls Standard
Tilt Hydraulic 0 - 60° Left and Right
Drive Motor 5 h.p. 3.75 kw
Blade Drive Sensorless Vector Control
Blade Size 1.25 x 0.042 x 17´-6˝ Long 31.75mm x 1mm x 5334mm long
Blade Speed 50 - 475 FPM 16 - 158 m/min
Blade Guides Self Clamping - Carbide/Roller
Blade Tension Hydraulic Adjustable - 45,000 PSI MAX 310 MPa
Vises Hydraulic Full Stroking
Variable Vise Pressure Optional
Interchangeable Vise Jaws 60° Faceplates Standard 45° & 90° jaws/faceplates optional
Feed Force 0 - 350 lbs. 0 - 1560 N
Index Length 24˝ 610 mm
Wheel Diameter 23˝ 584 mm
Machine Table Cast Iron/2 T-slots
Upper Guide Arm Hydraulically Adjustable and Locking
Control Voltage 24 Volts DC
Column Travel Recirculating Linear Ball Ways
Work Light Standard
Coolant Capacity 60 Gal 227 Liter
Blade Cleaning Brush Standard - Friction Drive
